Close Coupled Pumps With Ec Motors

Description

Close-Coupled Pumps with EC Motors Advantages

  • High-quality and reliable pumps
  • Extremely small dimensions
  • SiC sleeve bearings
  • Low-noise
  • Drive without bearing

Close-Coupled Pumps with EC Motors Description

  • Pumps with magnetic coupling (…-MK), force transmission by outer magnet
  • Pumps with canned motor (…-MM), force transmission by motor winding
  • Drives with EC motor, 24 V, 12 V upon request
  • Designs made from high-quality plastic and stainless steel
  • Tmax
    Water up to 80 °C
    Oil up to 80 °C
    Further media upon request

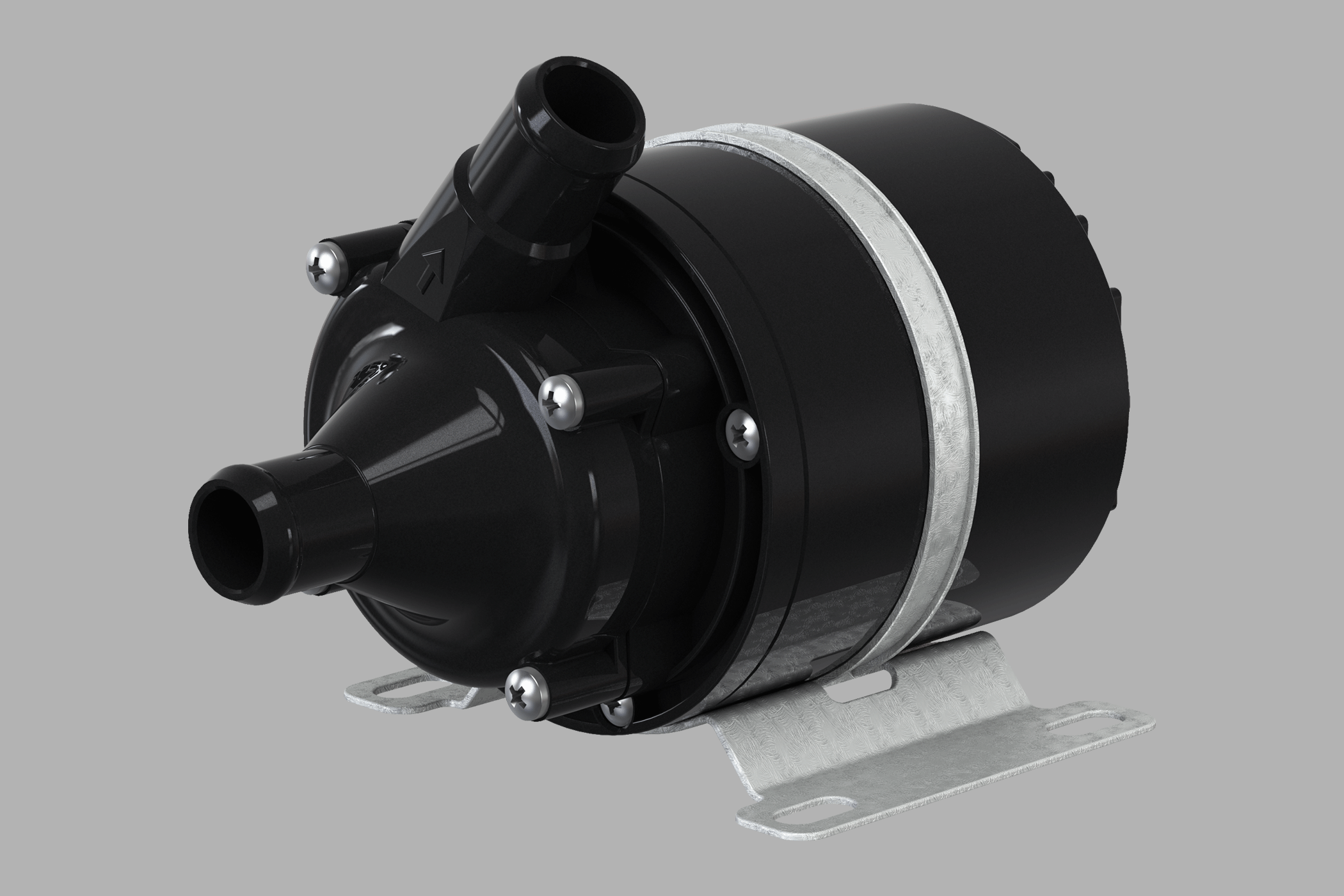

MY-3-MM

Close-coupled,canned motor

ISO

24 V, max. 14 m / 100 l/min

US

24 V, max. 46 ft / 26 GPM

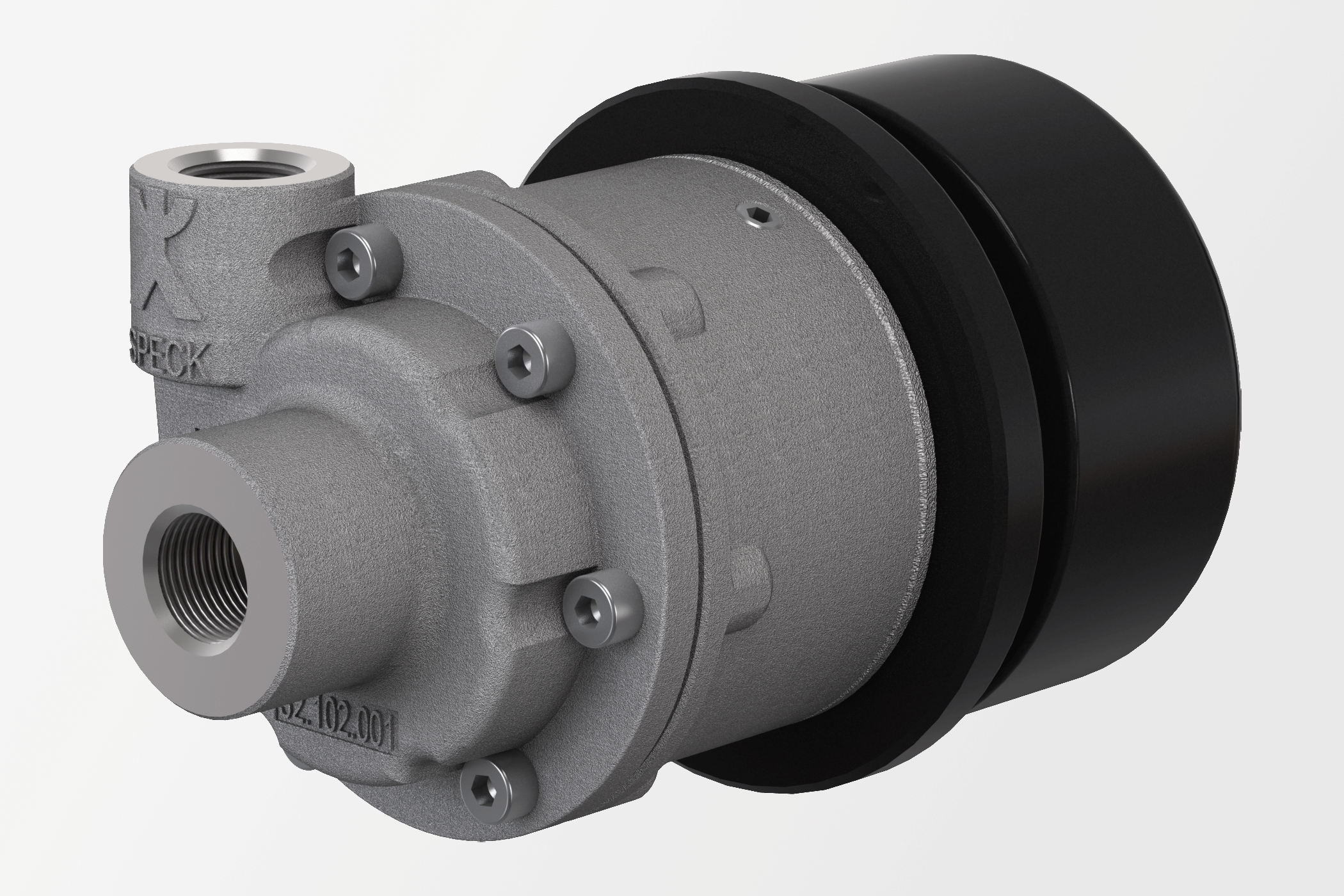

MY-2-6000-MK

Close-coupled,magnetic coupling

ISO

24 V, max. 9 m / 20 l/min

US

24 V, max. 30 ft / 5 GPM

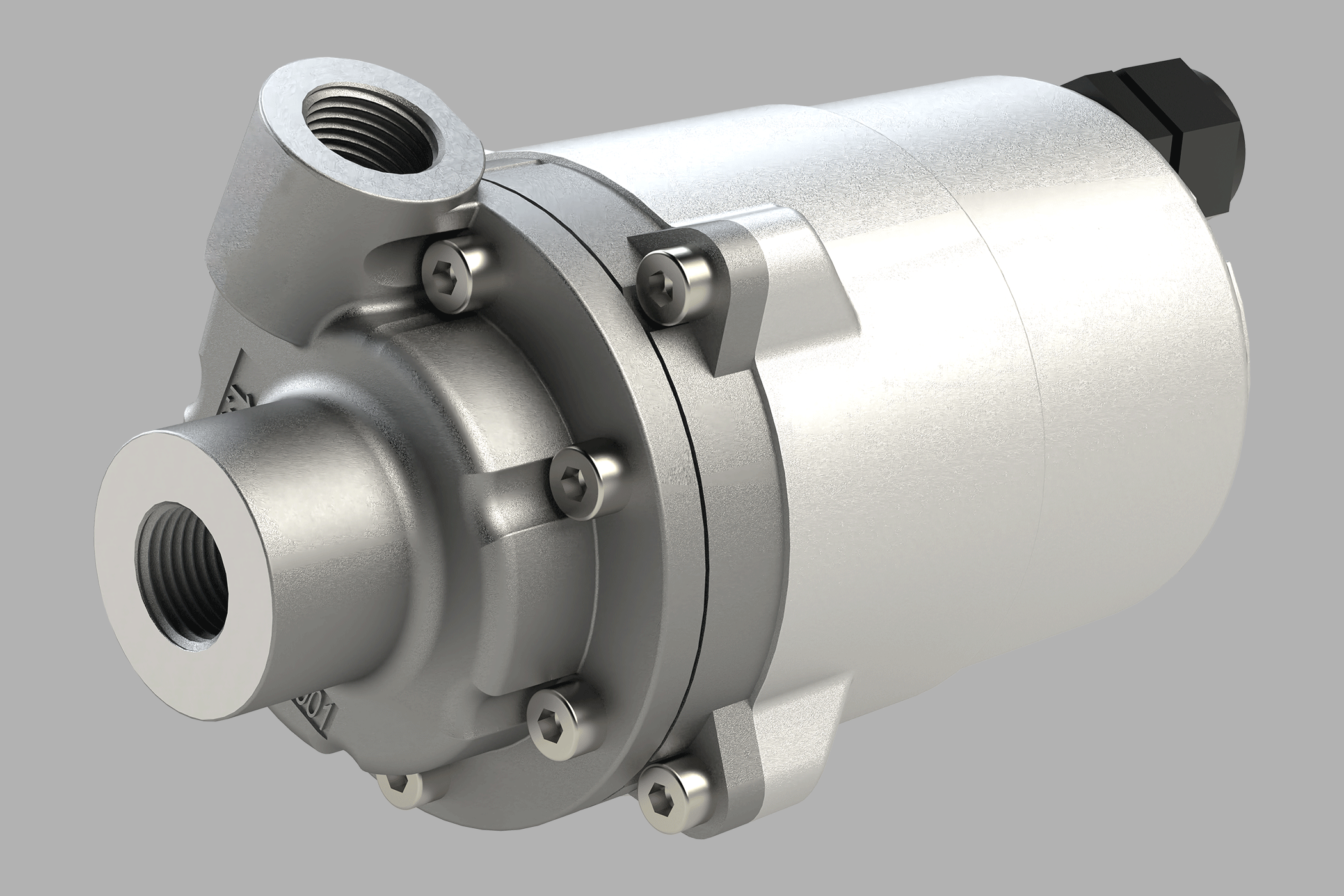

MY-2-8000-MK

Close-coupled, magnetic coupling

ISO

24 V, max. 15 m / 29 l/min

US

24 V, max. 49 ft / 8 GPM
