Roller Vane Pumps

Description

SpeckAustralia.com is the official roller vane pumps supplier and distributor for Speck in Australia and New Zealand. Speck Australia is a subsidiary of Speck Pumps of Roth, Germany who are high quality manufacturers of roller vane pumps.

Roller Vane Pumps Advantages

Speck DS Series are universally deployable pumps for high-pressure applications, featuring typically small dimensions.

  • Universally deployable pumps for high-pressure applications
  • Small dimensions

Roller Vane Pumps Description

There are two main versions. DS, being a design with mechanical seals, and DS-MK, a design with magnetic coupling. Variations include connection position top/top, threaded with or without pressure relief. Available construction materials are copper alloy or stainless steel.

  • DS: Design with mechanical seals
  • DS-MK: Design with magnetic coupling
  • Connection position top/top, threaded
  • Copper alloy or stainless steel designs
  • Tmax
    Maximum Temperature
    Water up to 70 °C
    Oil up to 70 °C
    Other mediums and temperature ratings available upon request
  • ATEX II 2GD IIC cb TX is also available.

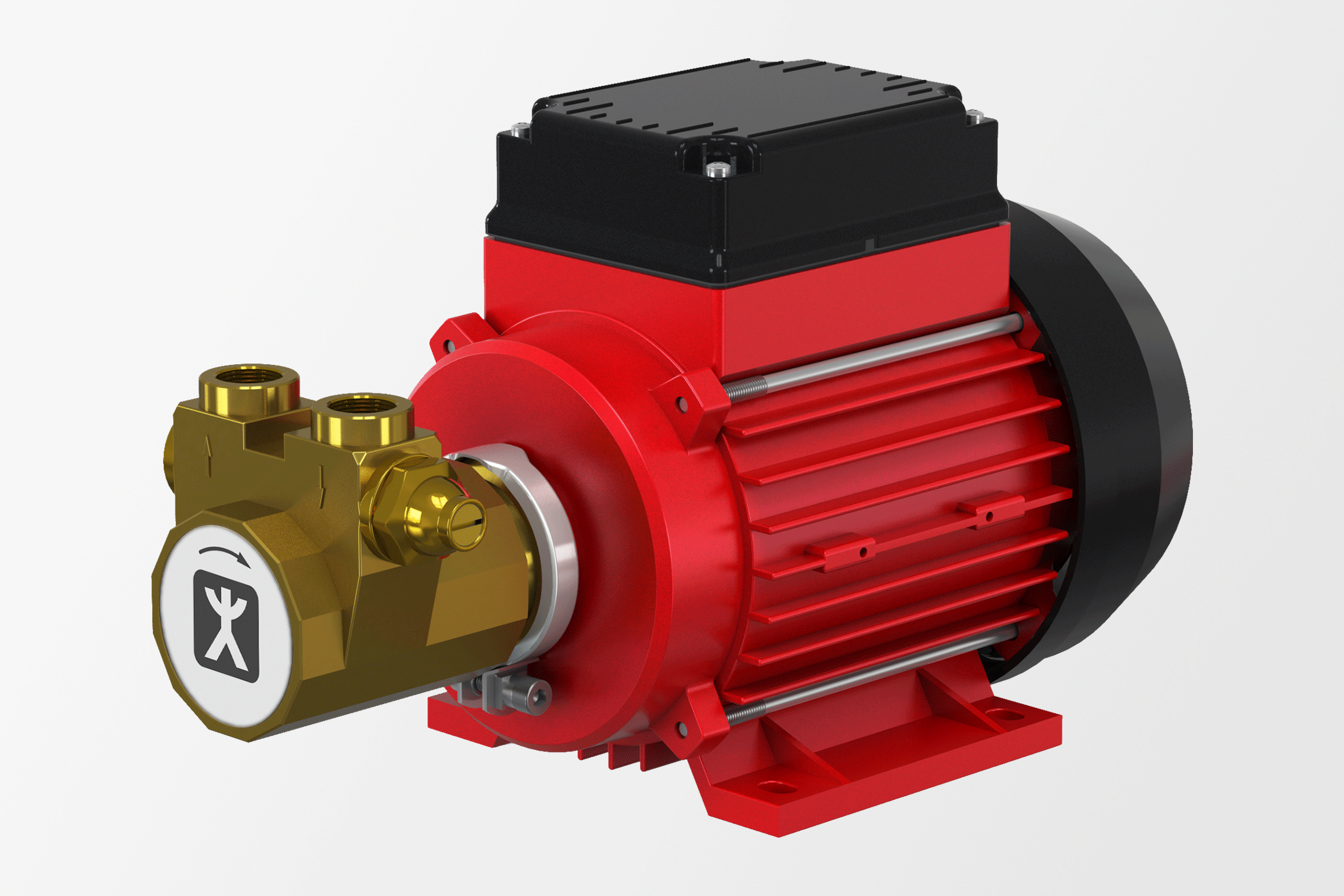

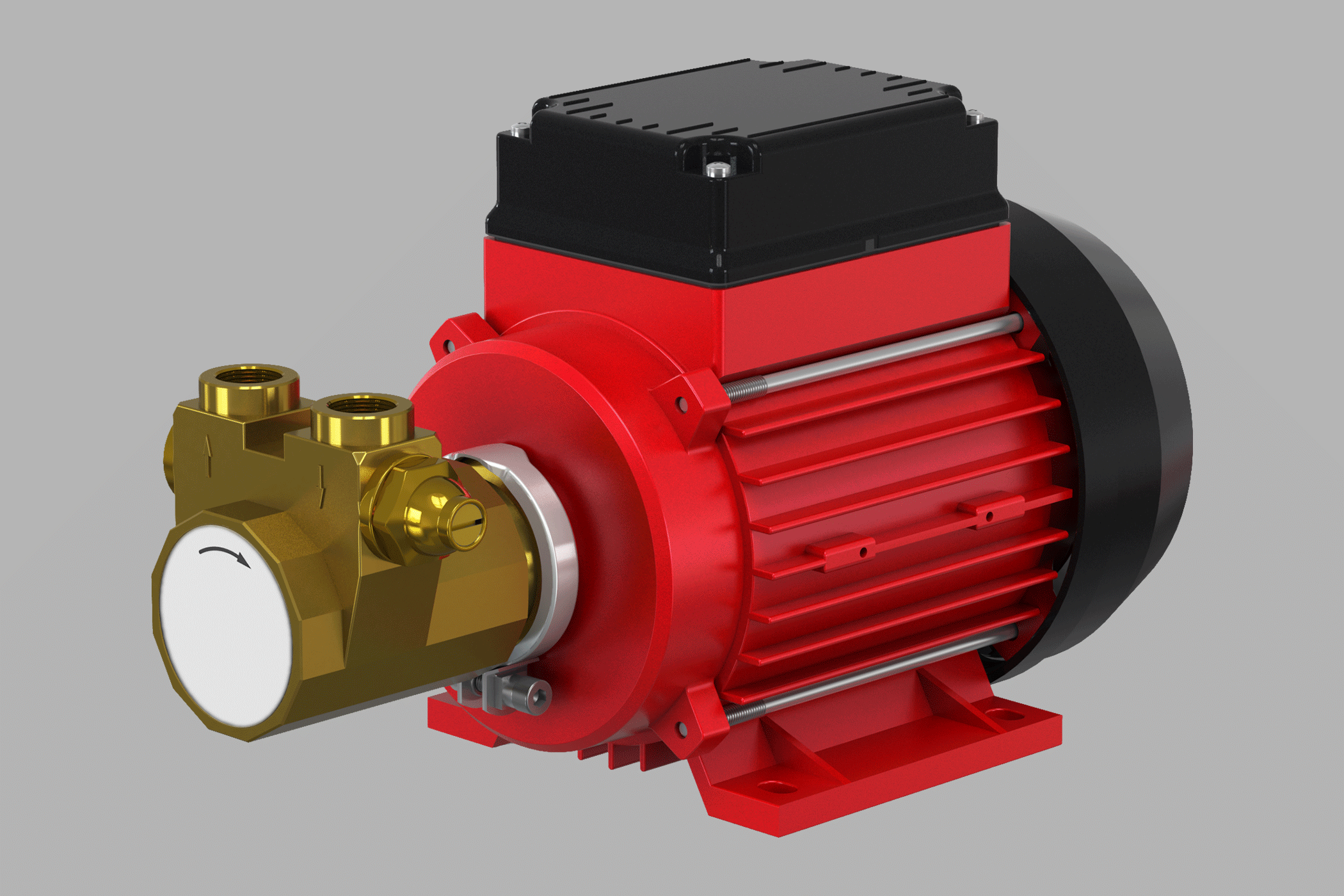

DS

Close-coupled, mechanical seal

ISO

50 Hz: max. 14 bar / 16 l/min

US

50 Hz: max. 203 psi / 4 GPM

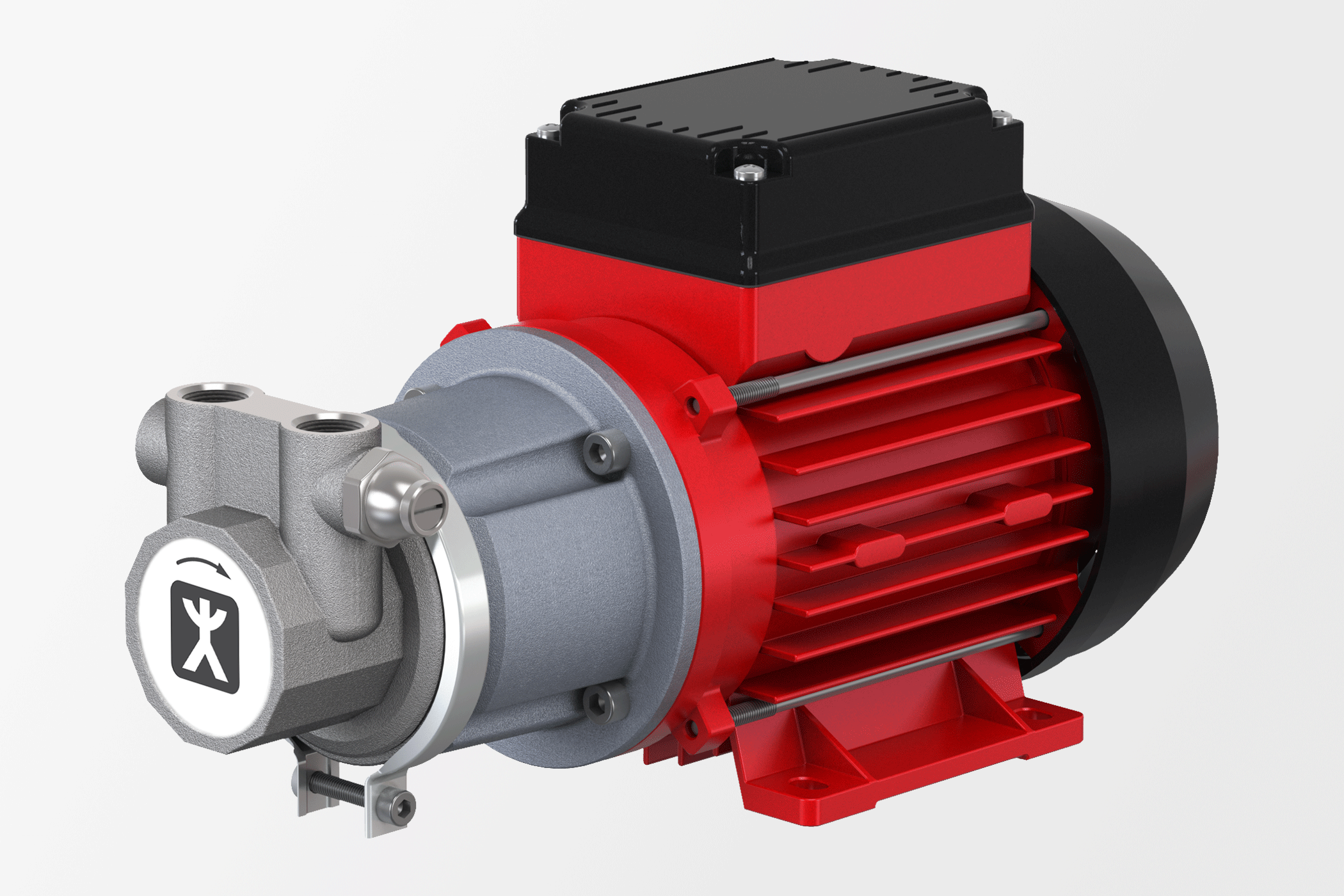

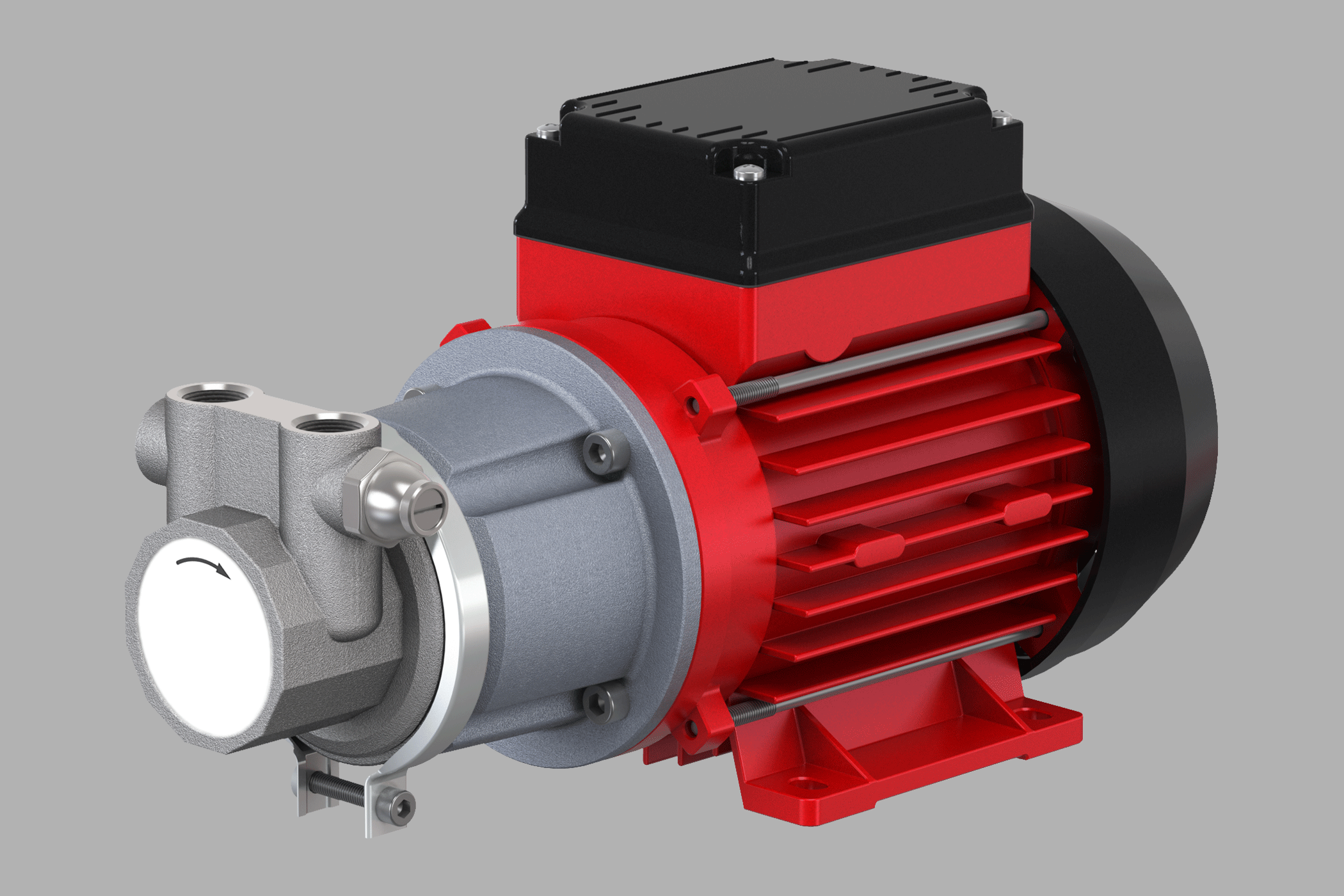

DS-MK

Close-coupled, magnetic coupling

ISO

50 Hz: max. 14 bar / 16 l/min

US

50 Hz: max. 203 psi / 4 GPM
