Gear Pumps

Description

Gear Pumps Advantages

  • Reliable pumps for high-pressure applications
  • Small dimensions

Gear Pumps Description

  • ZY-MK: Designs with magnetic couplings in stainless steel
  • ZY-MM: Designs with canned motor in spheroidal graphite cast iron
  • Connection position left/right, threaded
  • Tmax
    Oil, fuel -40 °C to 80 °C

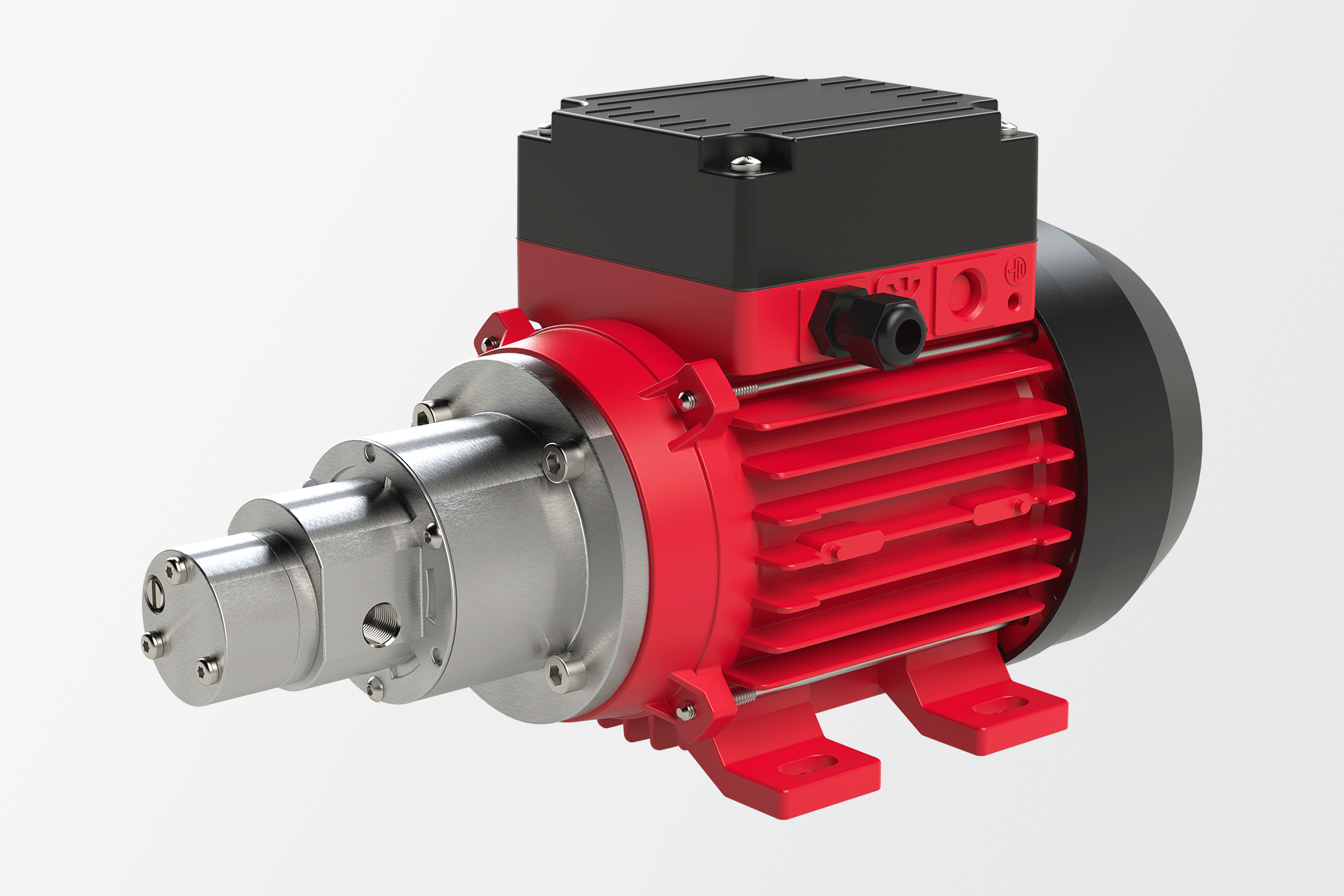

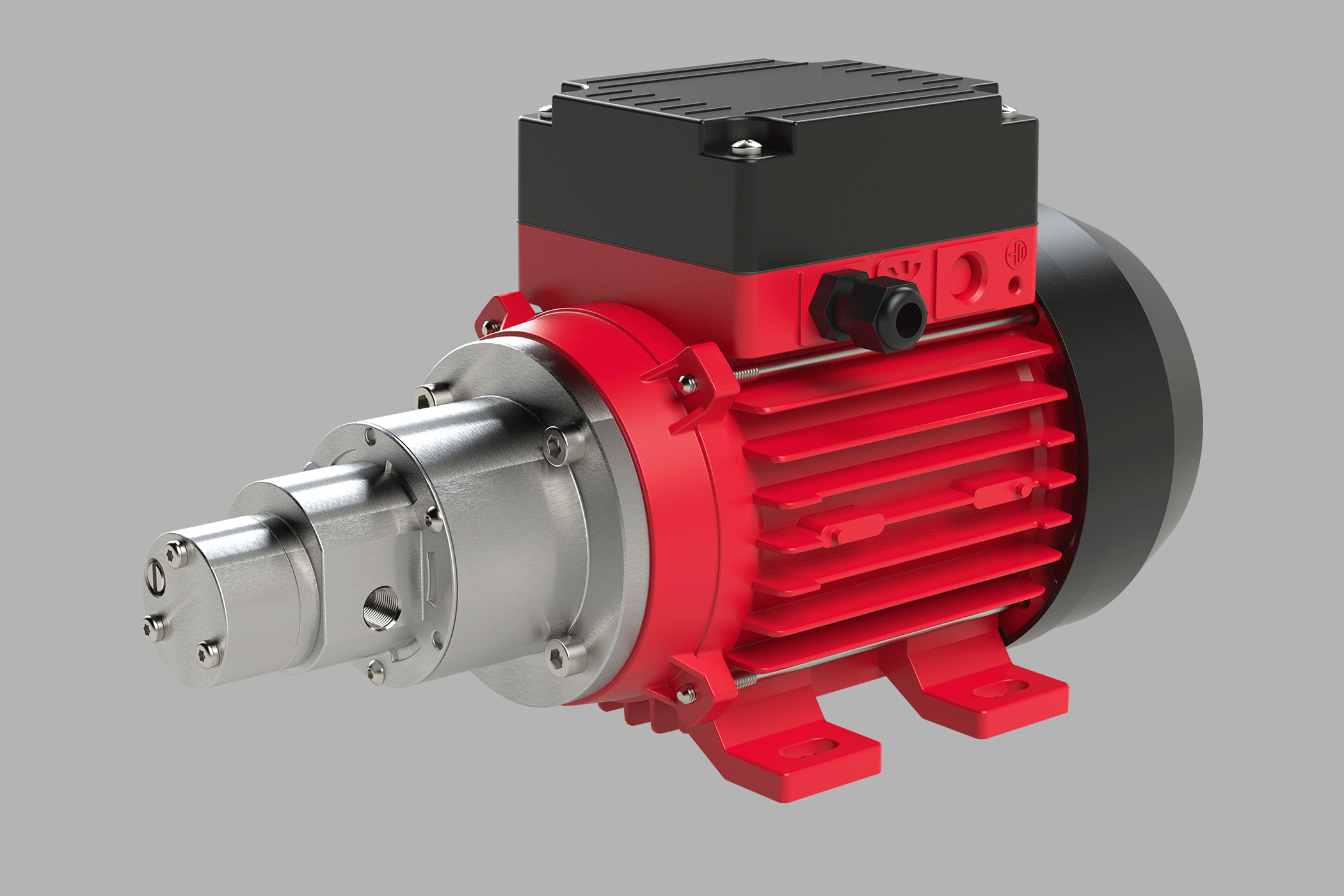

ZY-13…-MK

Close-coupled, magnetic coupling

ISO

50 Hz: max. 9 bar / 175 l/h

60 Hz: max. 9 bar / 205 l/h

US

50 Hz: max. 131 psi / 1 GPM

60 Hz: max. 131 psi / 1 GPM

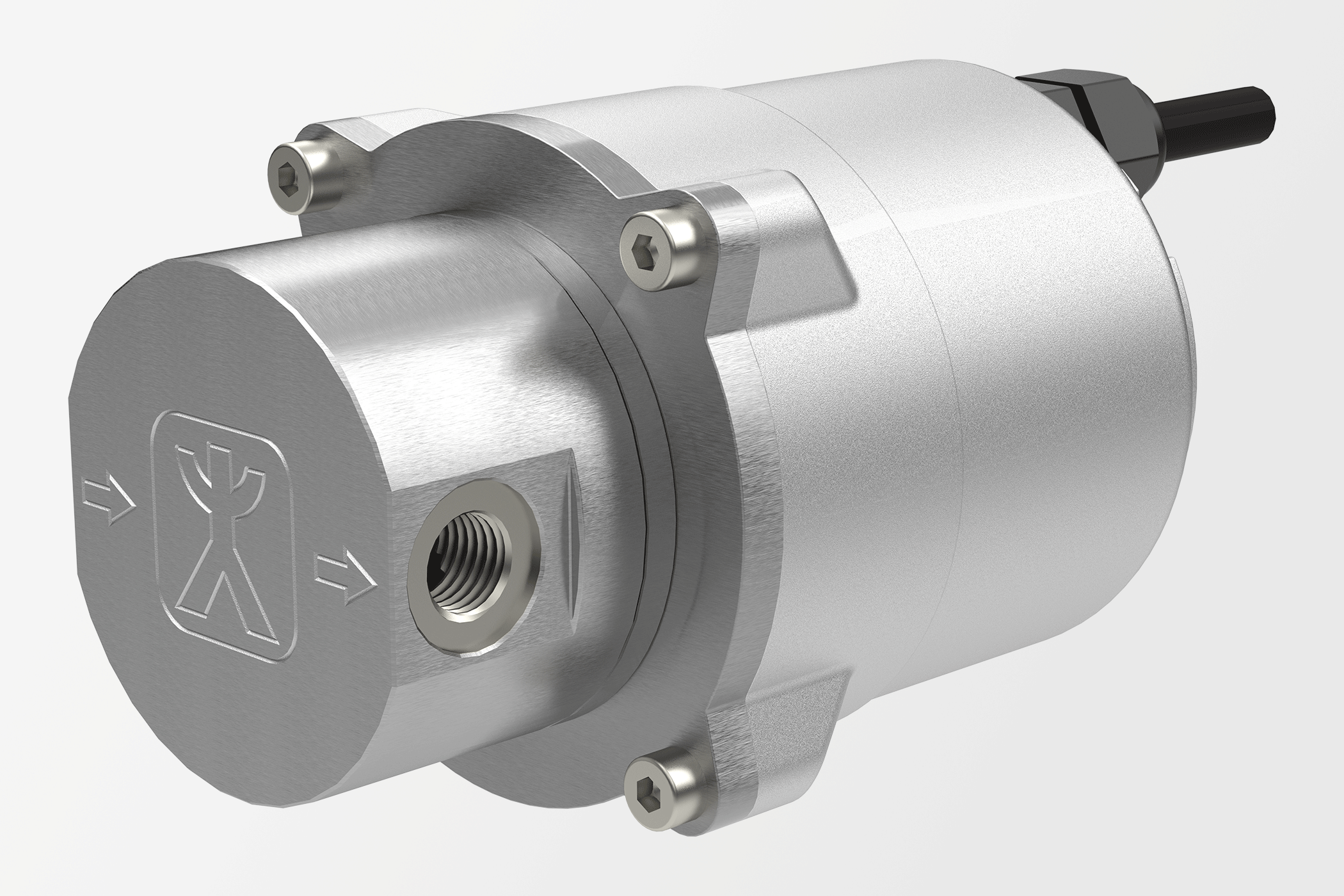

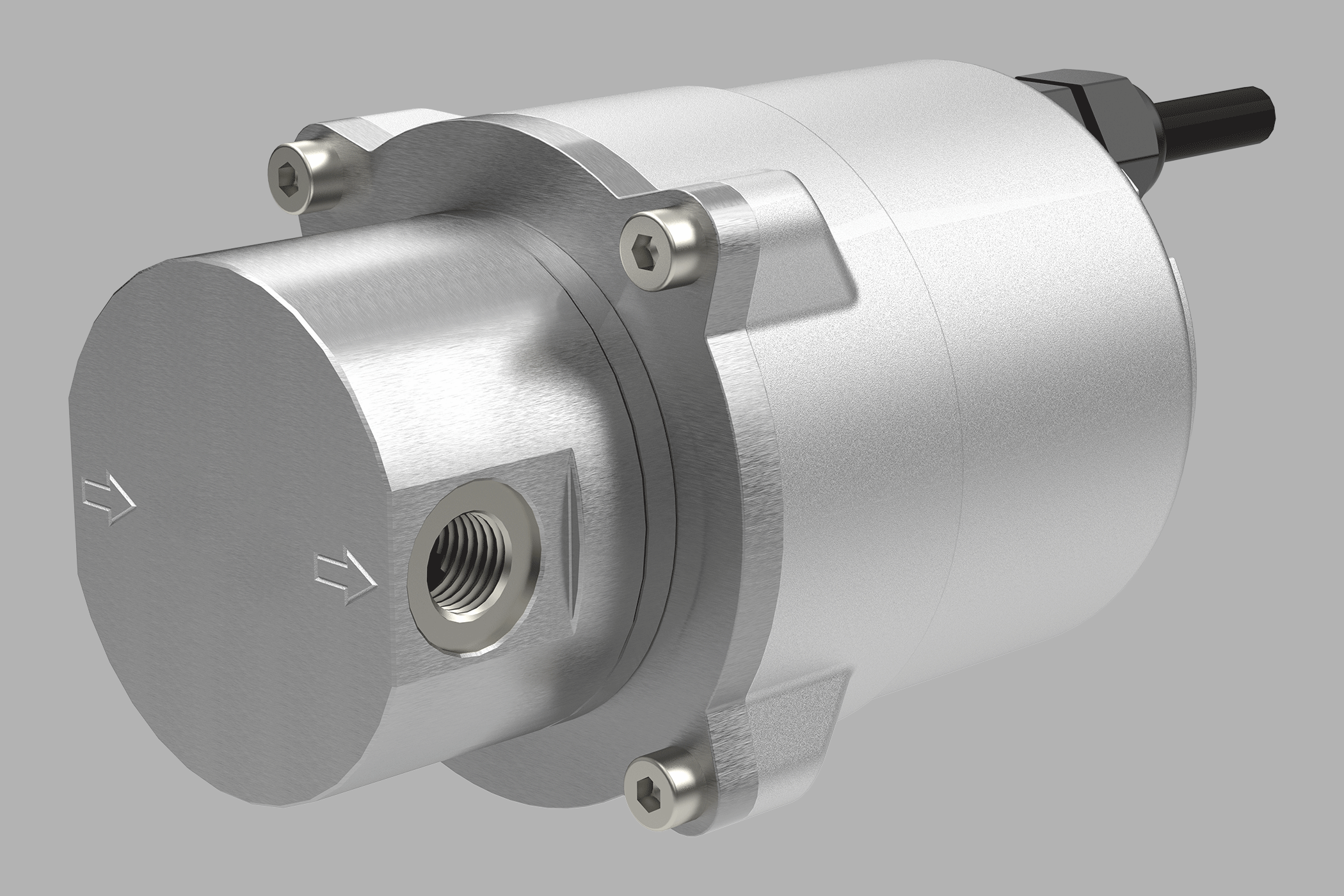

ZY-13…-MM

Canned motor pumps

ISO

24 V, max. 8,7 bar / 4,7 l/min
US

24 V, max. 126 psi / 1.24 GPM

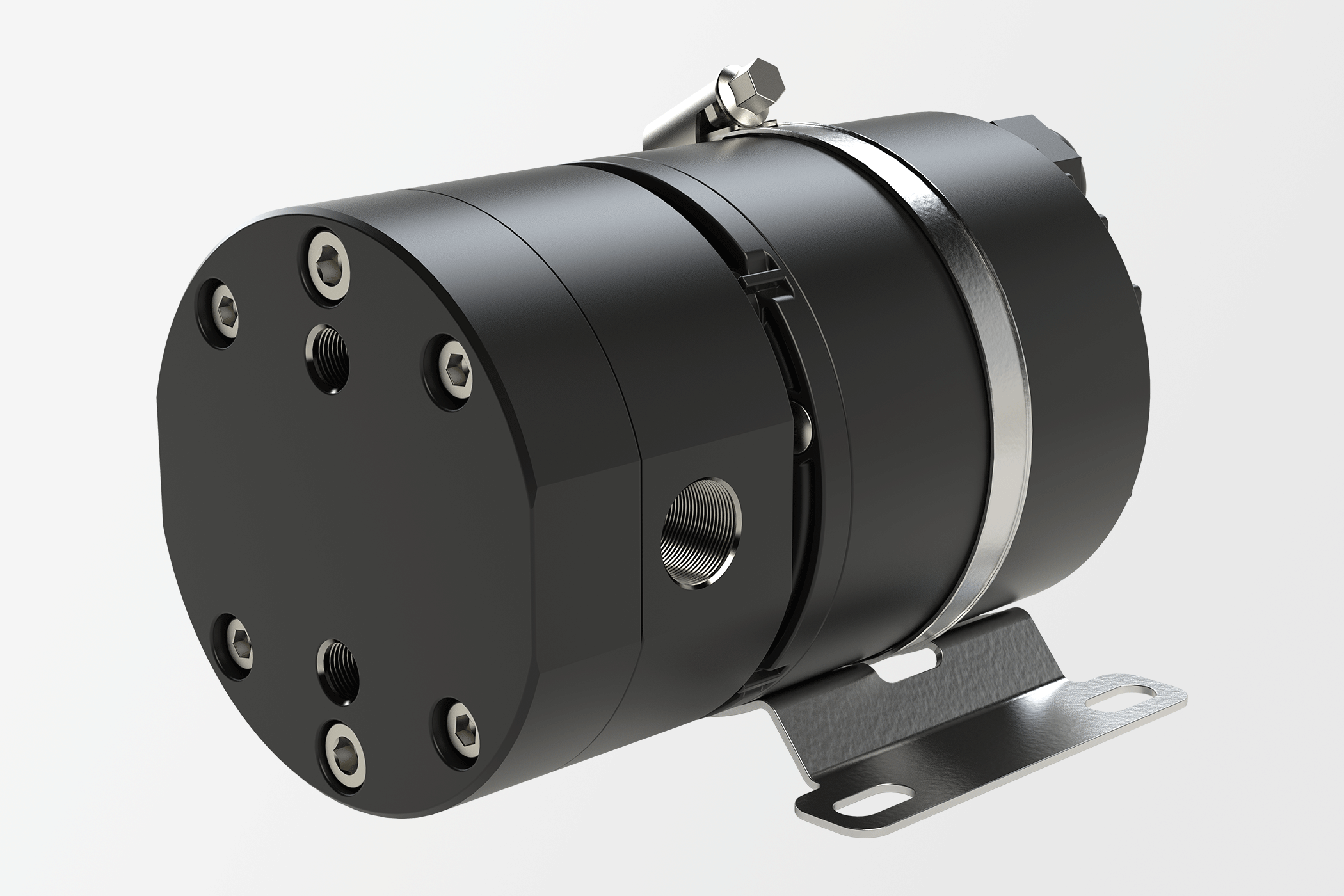

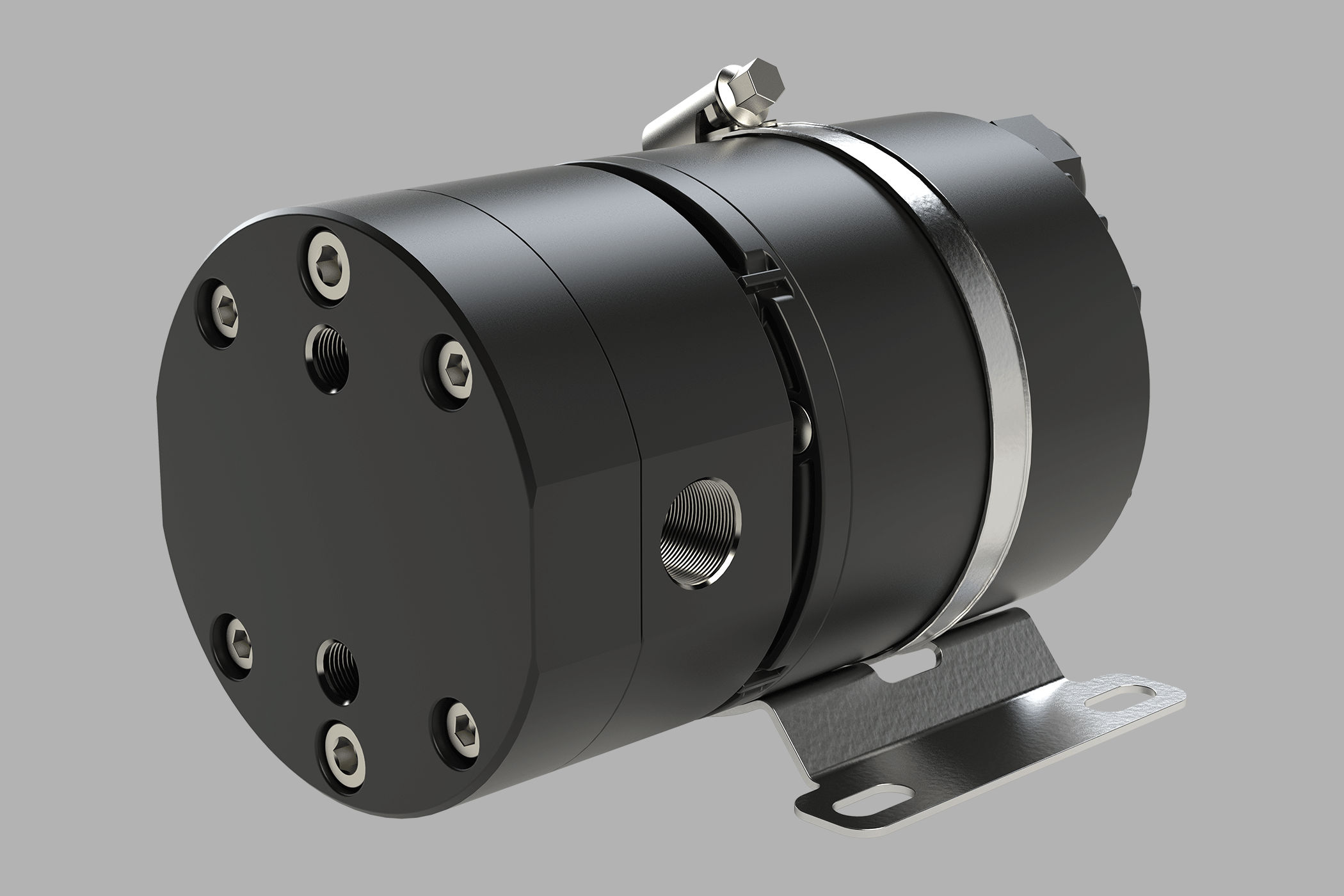

ZY-2009-MM

Canned motor pumps

ISO

24 V, max. 8 bar / 5 l/min
US

24 V, max. 116 psi / 1 GPM
