Close-coupled Pumps With Mechanical Seal

Description

Close-coupled Pumps With Mechanical Seal Advantages

  • Universally deployable pumps which are suitable for many industrial applications.
  • Small dimensions

Close-coupled Pumps With Mechanical Seal Description

  • The motor shaft is the pump shaft
  • Connection position top/top, ax/top upon request
  • Threaded connections or SAE flanges
  • Normal-priming, self-priming upon request
  • Mechanical seal made from carbon, SiC or FKM. Other material designs are available upon request depending on the respective medium
  • Designs in copper alloy, stainless steel and high-quality plastic
  • Tmax
    Water up to 140 °C
    Oil up to 180 °C
    Further media upon request
  • ATEX II 2GD IIC cb TX

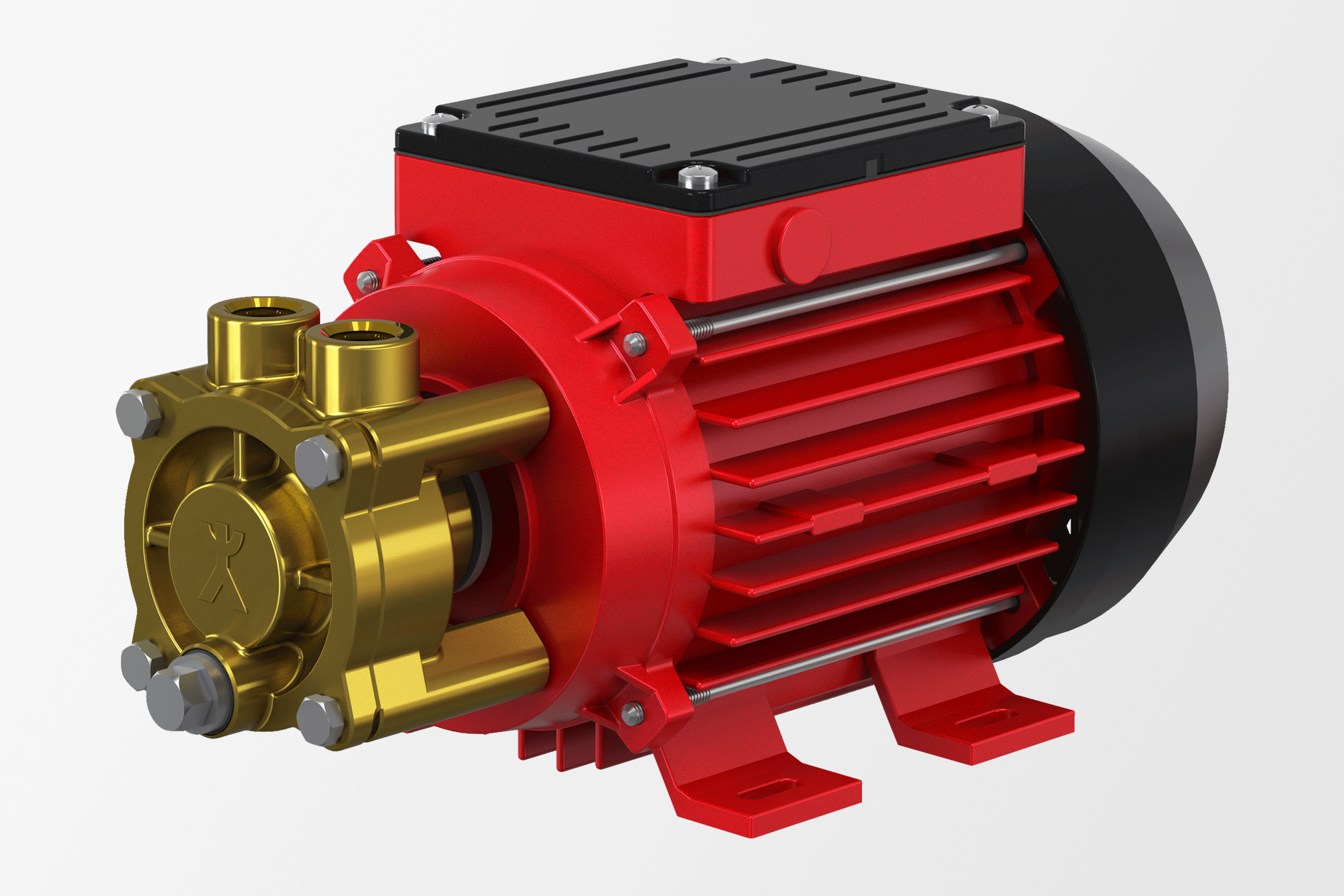

LNY-2841

Close-coupled

ISO

50 Hz: max. 39 m / 10 l/min

60 Hz: max. 45 m / 12 l/min

US

50 Hz: max. 128 ft / 3 GPM

60 Hz: max. 148 ft / 3 GPM

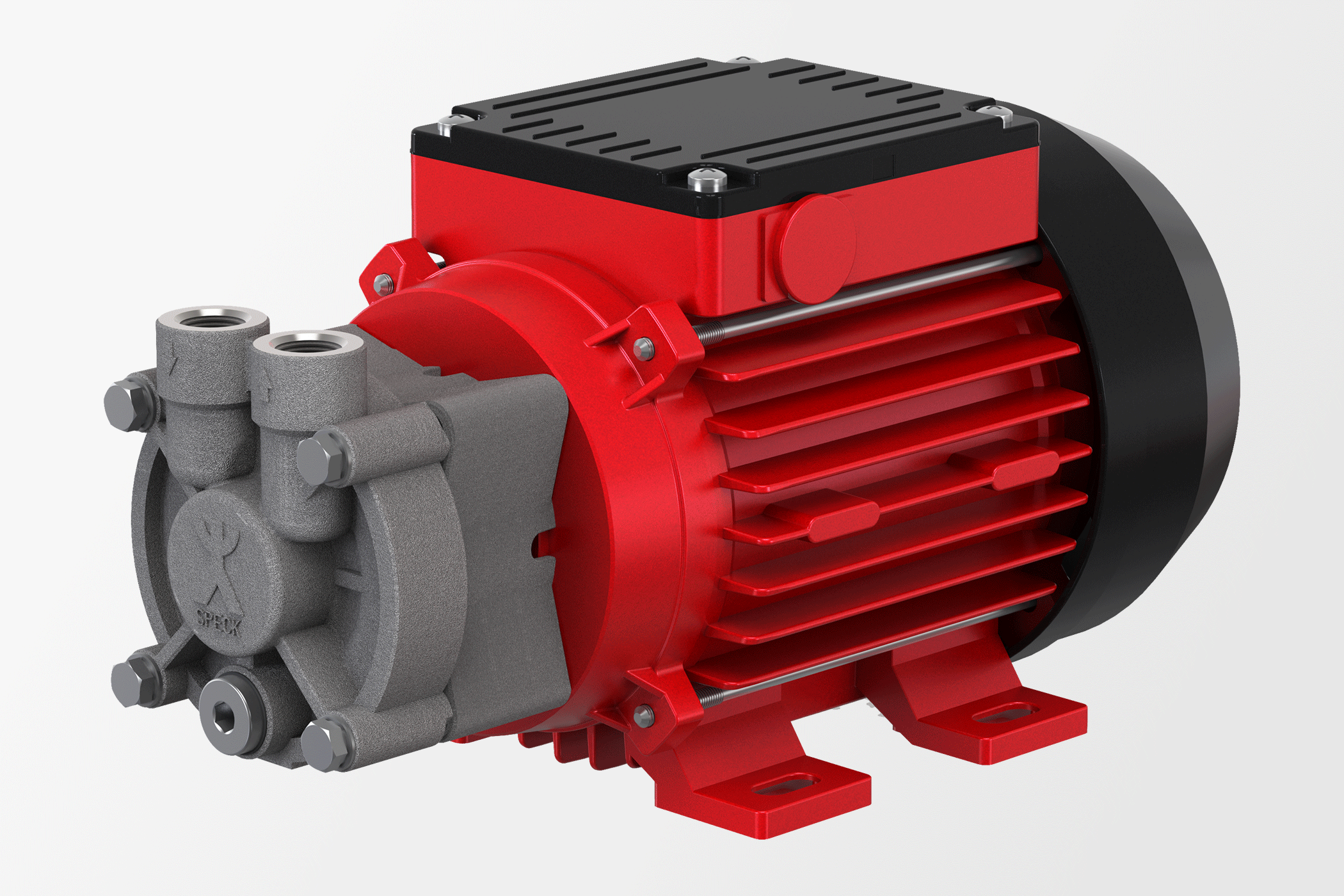

Y/YS-2951

Close-coupled, YS self priming

ISO

50 Hz: max. 40 m / 12 l/min

60 Hz: max. 52 m / 13 l/min

US

50 Hz: max. 131 ft / 3 GPM

60 Hz: max. 171 ft / 3 GPM

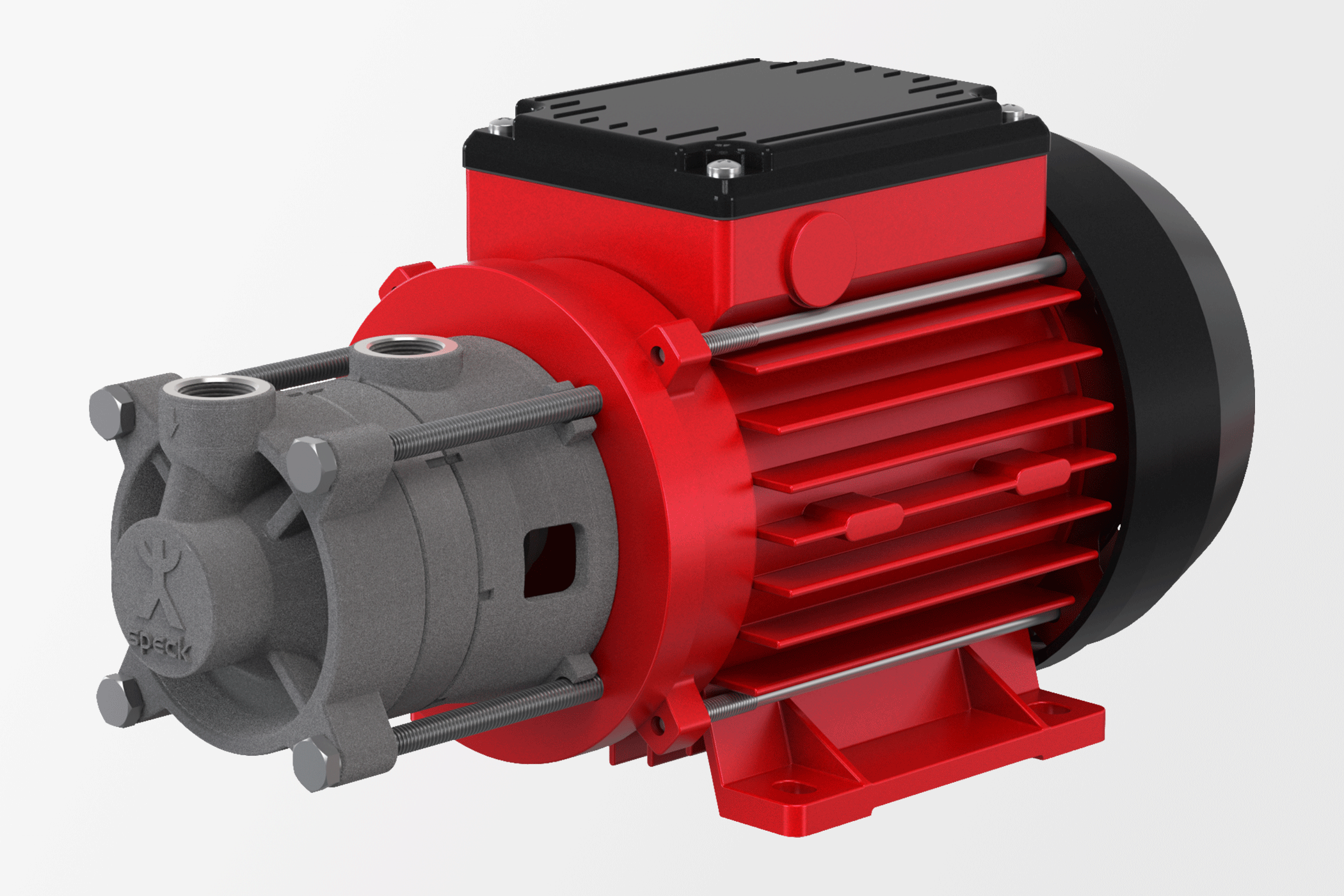

QY-1042

Close-coupled,two-stage

ISO

50 Hz: max. 70 m / 12 l/min

60 Hz: max. 90 m / 12 l/min

US

50 Hz: max. 230 ft / 3 GPM

60 Hz: max. 295 ft / 3 GPM

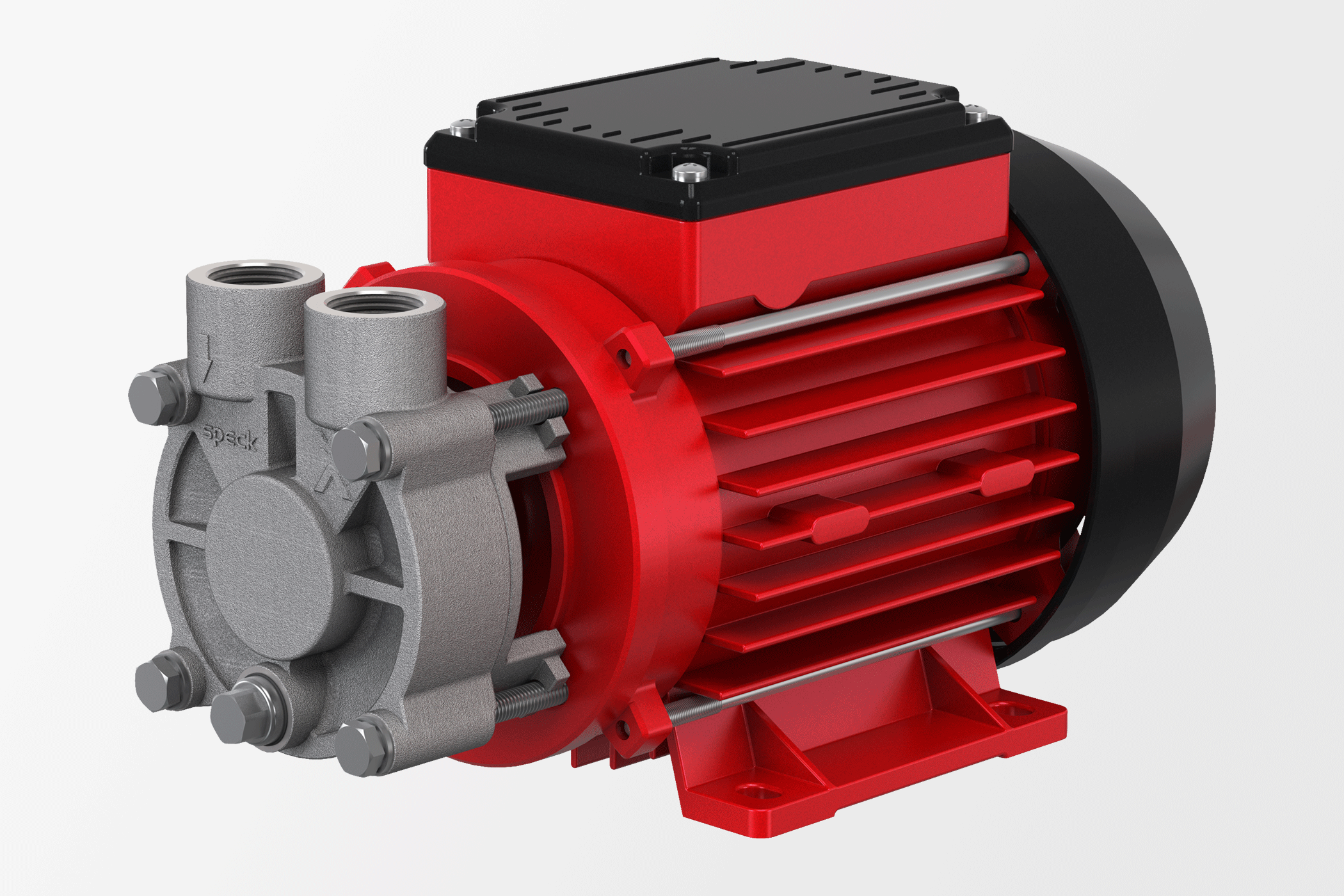

Y/YS-2051

Close-coupled,YS self priming

ISO

50 Hz: max. 45 m / 27 l/min

60 Hz: max. 60 m / 30 l/min

US

50 Hz: max. 148 ft / 7 GPM

60 Hz: max. 197 ft / 8 GPM

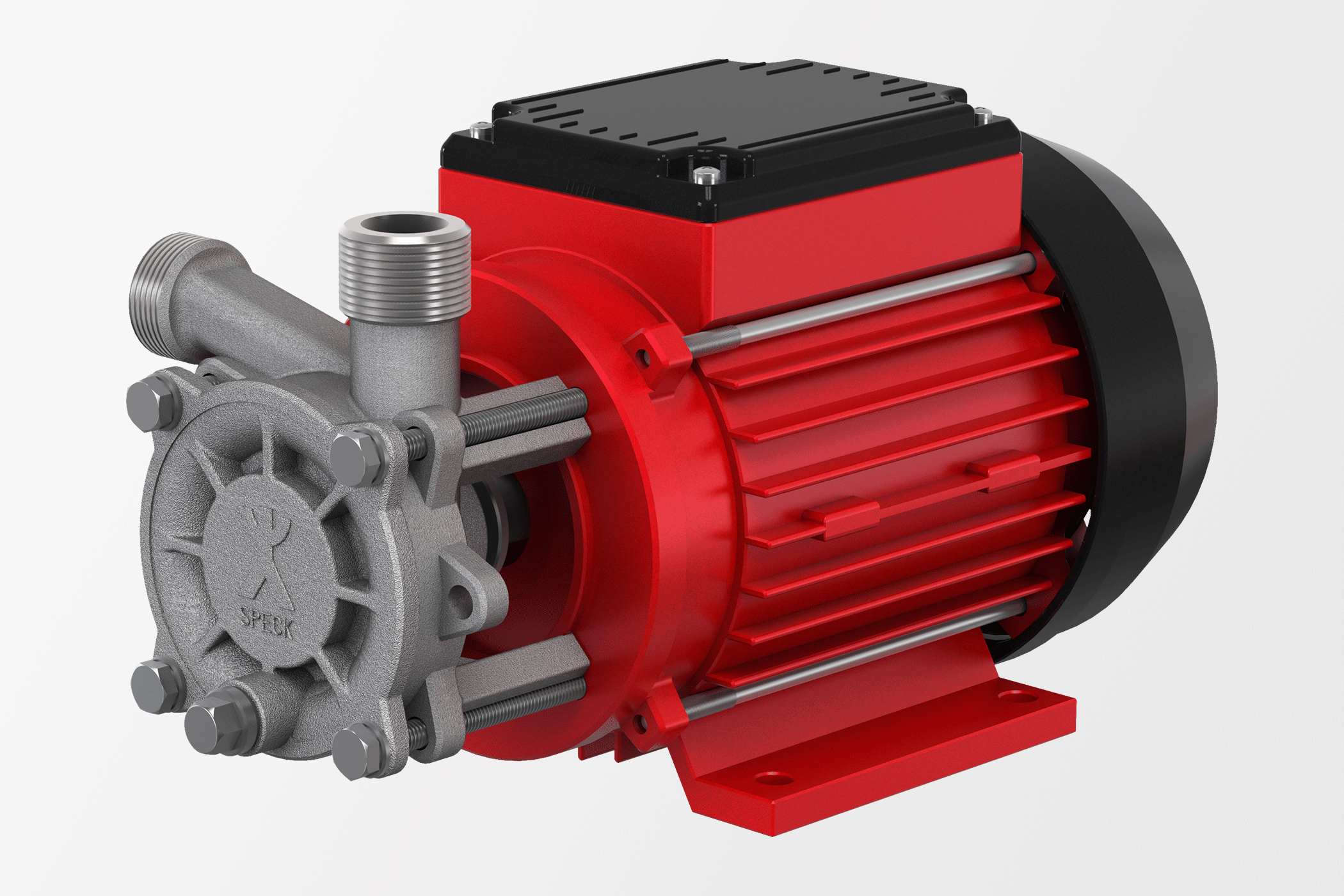

NPY-2051 self prim.

Close-coupled,self-priming

ISO

50 Hz: max. 47 m / 18 l/min

60 Hz: max. 58 m / 20 l/min

US

50 Hz: max. 154 ft / 5 GPM

60 Hz: max. 190 ft / 5 GPM

NPY-2051

Close-coupled

ISO

50 Hz: max. 52 m / 30 l/min

60 Hz: max. 68 m / 35 l/min

US

50 Hz: max. 171 ft / 8 GPM

60 Hz: max. 223 ft / 9 GPM

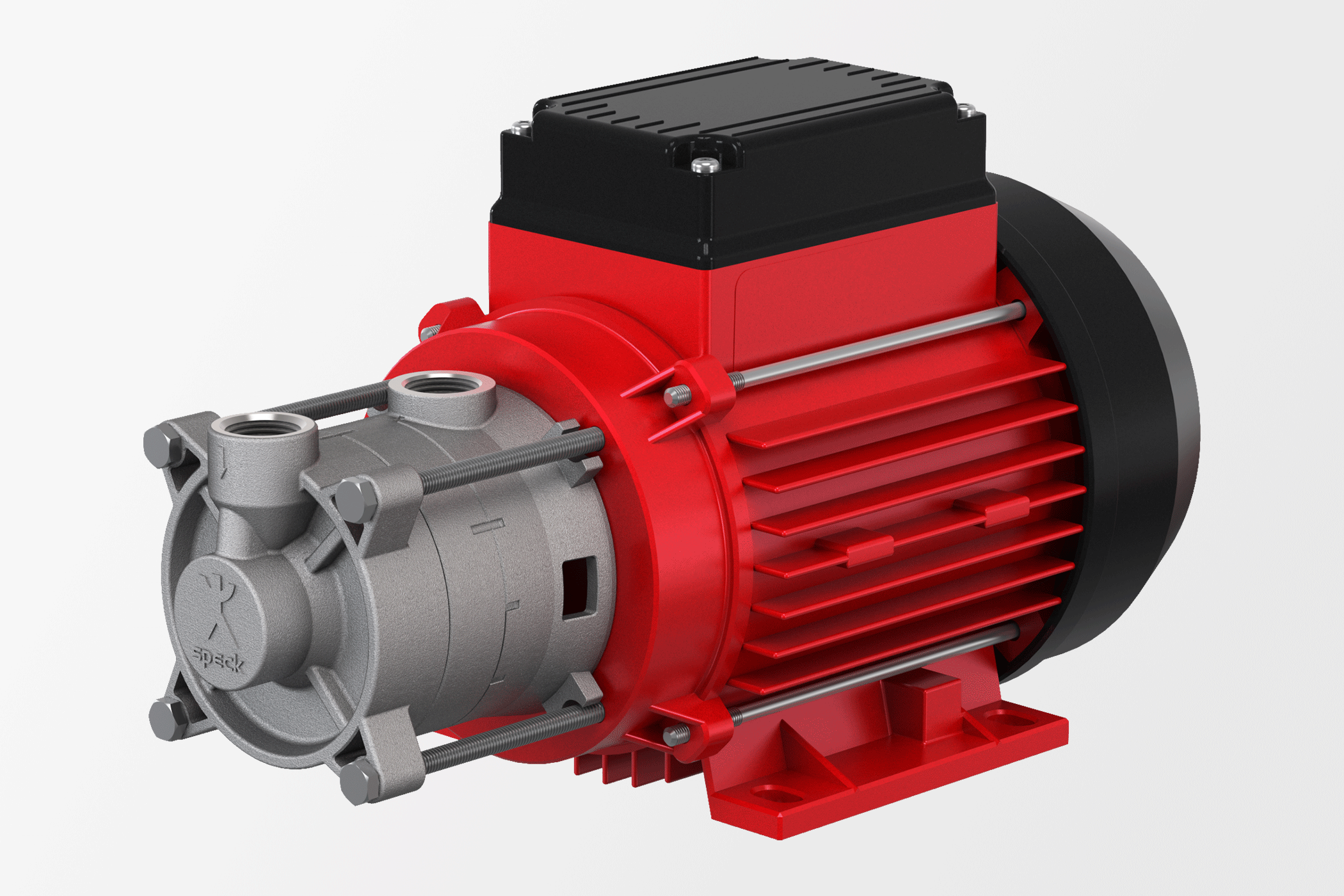

QY-2052

Close-coupled, two-stage

ISO

50 Hz / 60 Hz:

max. 90 m / 27 l/min

US

50 Hz / 60 Hz:

max. 295 ft / 7 GPM

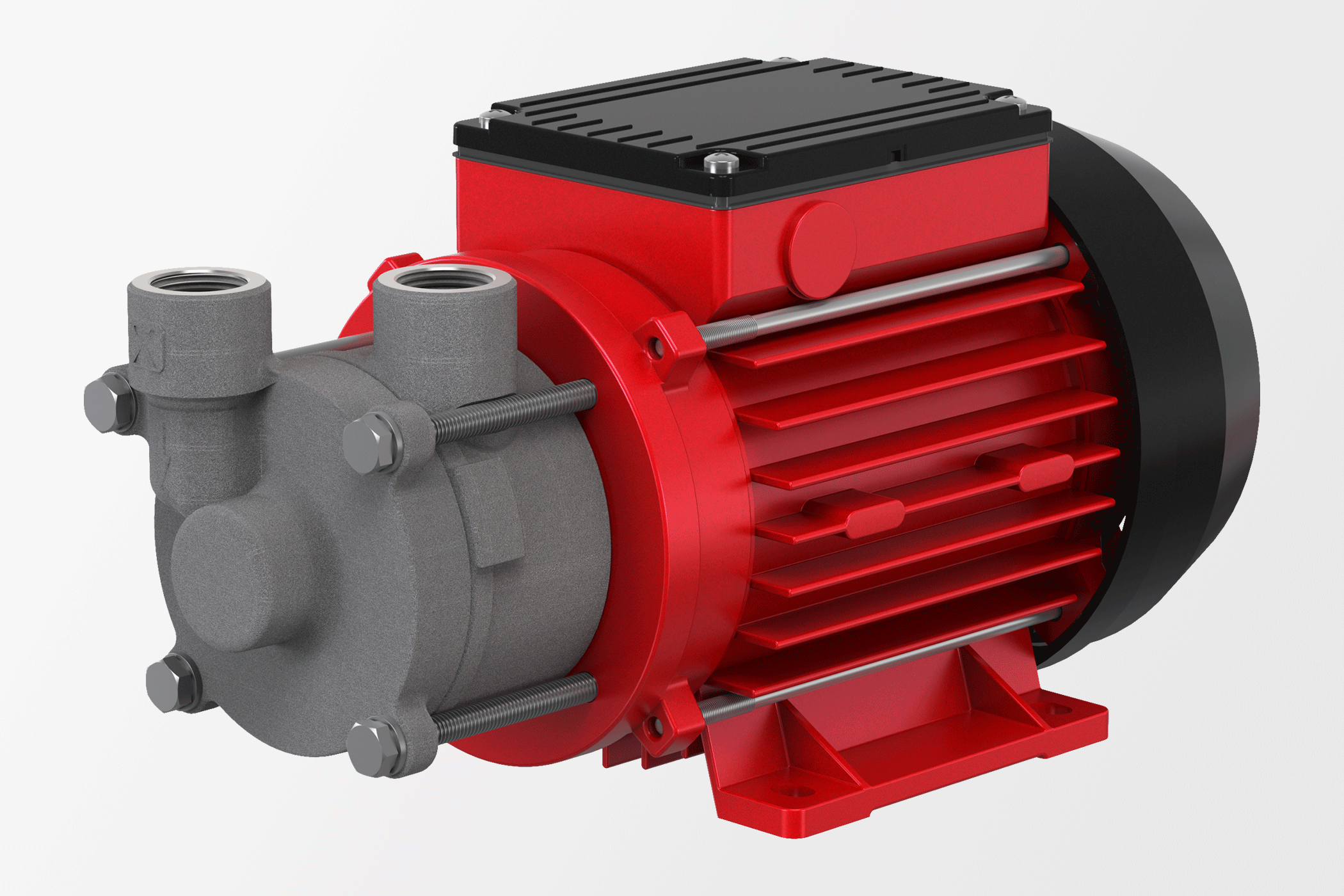

PY-2071

Close-coupled,self-priming

ISO

50 Hz / 60 Hz:

max. 35 m / 17 l/min

US

50 Hz / 60 Hz:

max. 115 ft / 4 GPM

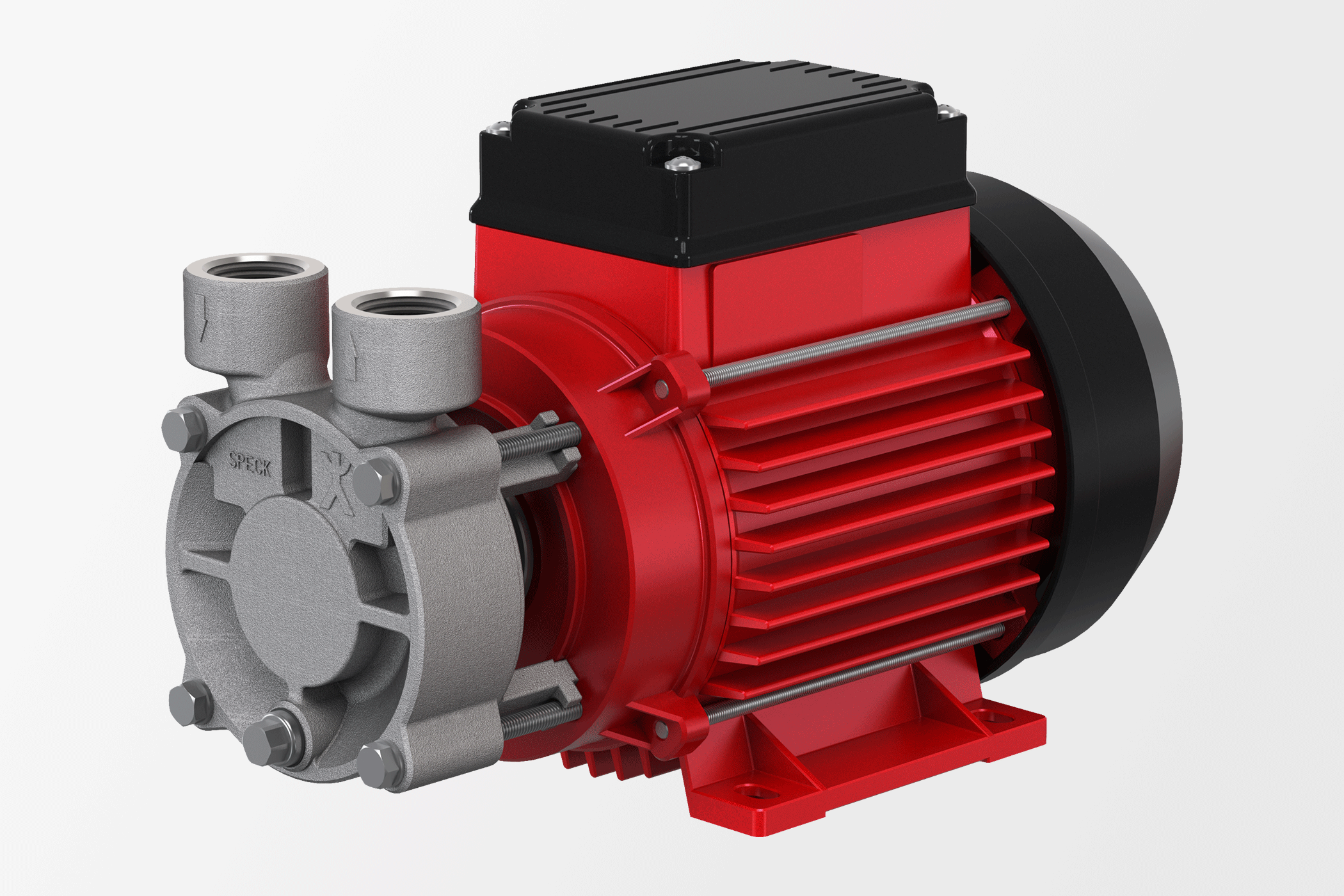

Y-4081

Close-coupled

ISO

50 Hz / 60 Hz:

max. 70 m / 85 l/min

US

50 Hz / 60 Hz:

max. 230 ft / 22 GPM

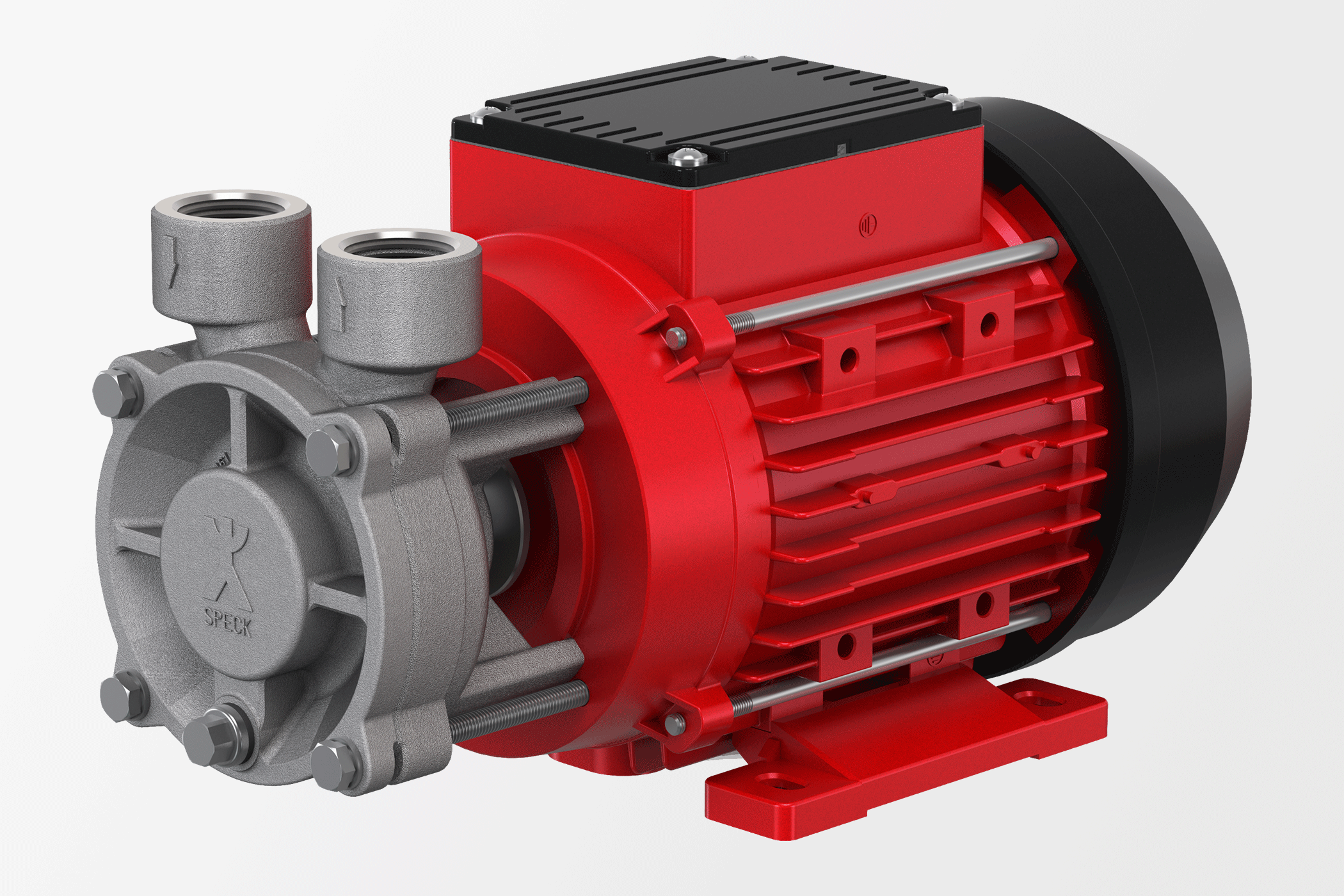

CY-4081

Close-coupled

ISO

50 Hz / 60 Hz:

max. 55 m / 58 l/min

US

50 Hz / 60 Hz:

max. 180 ft / 15 GPM

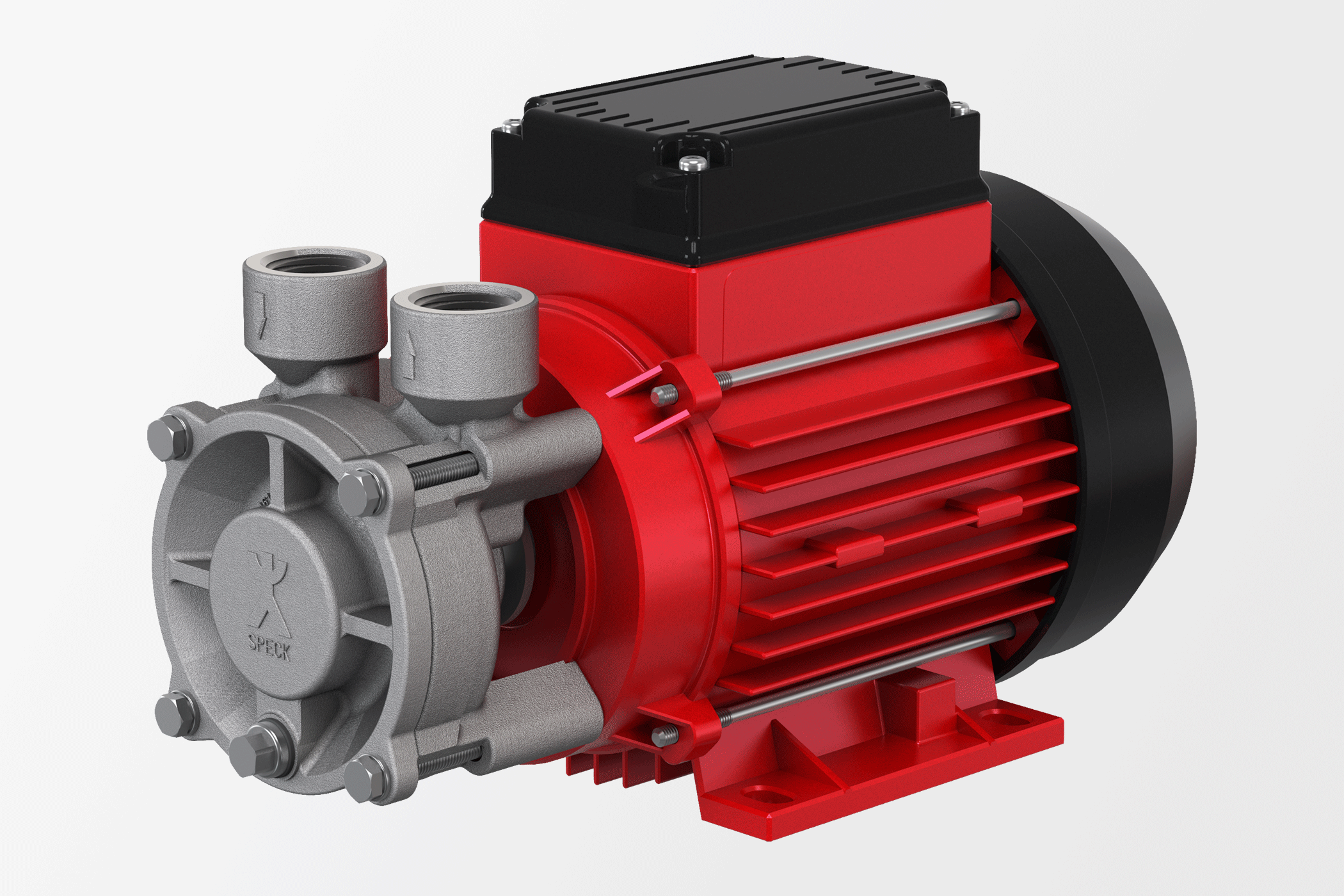

CSY-4081

Close-coupled,self-priming

ISO

50 Hz / 60 Hz:

max. 65 m / 35 l/min

US

50 Hz / 60 Hz:

max. 213 ft / 9 GPM

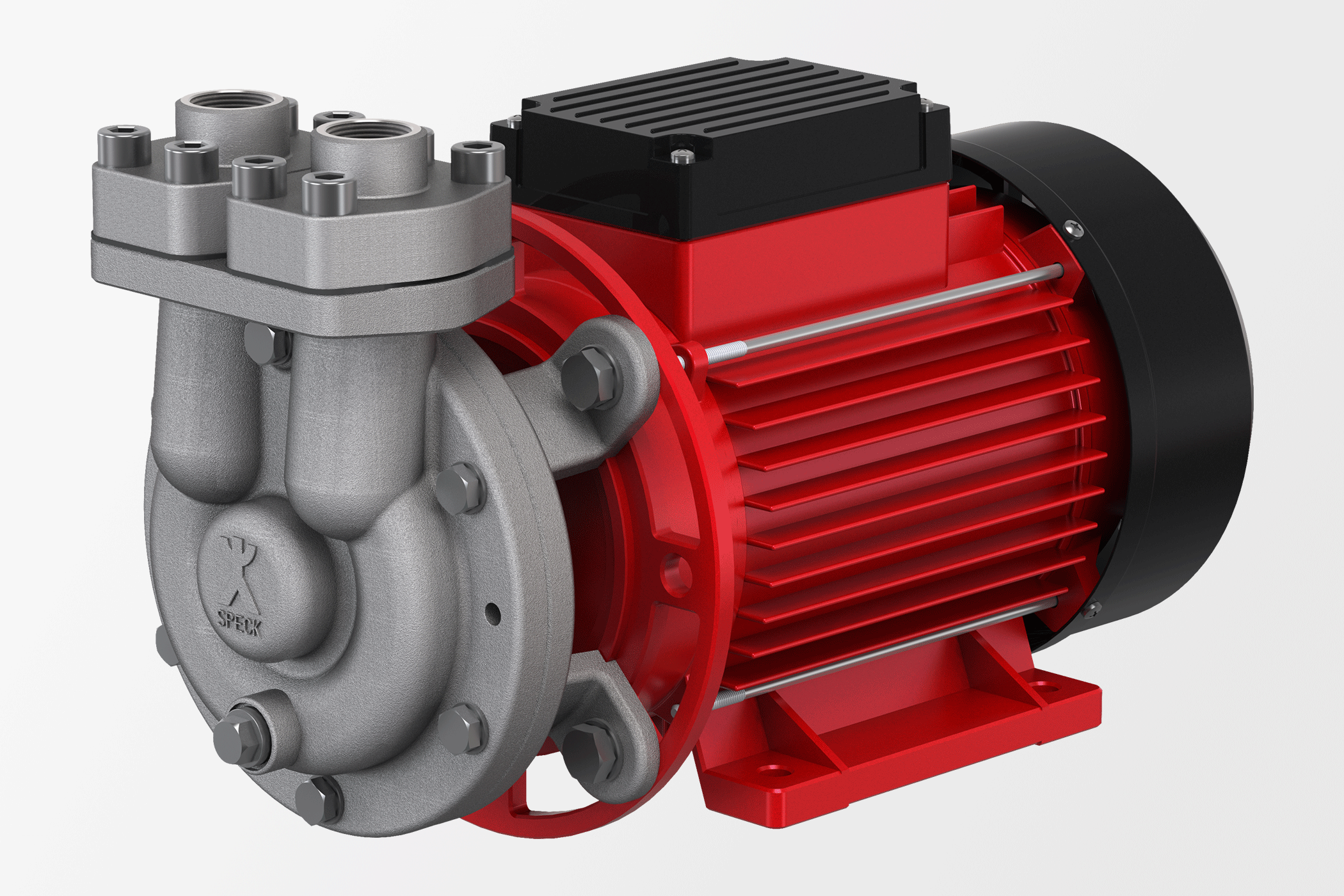

Y-6091

Close-coupled

ISO

50 Hz / 60 Hz:

max. 80 m / 180 l/min

US

50 Hz / 60 Hz:

max. 262 ft / 48 GPM

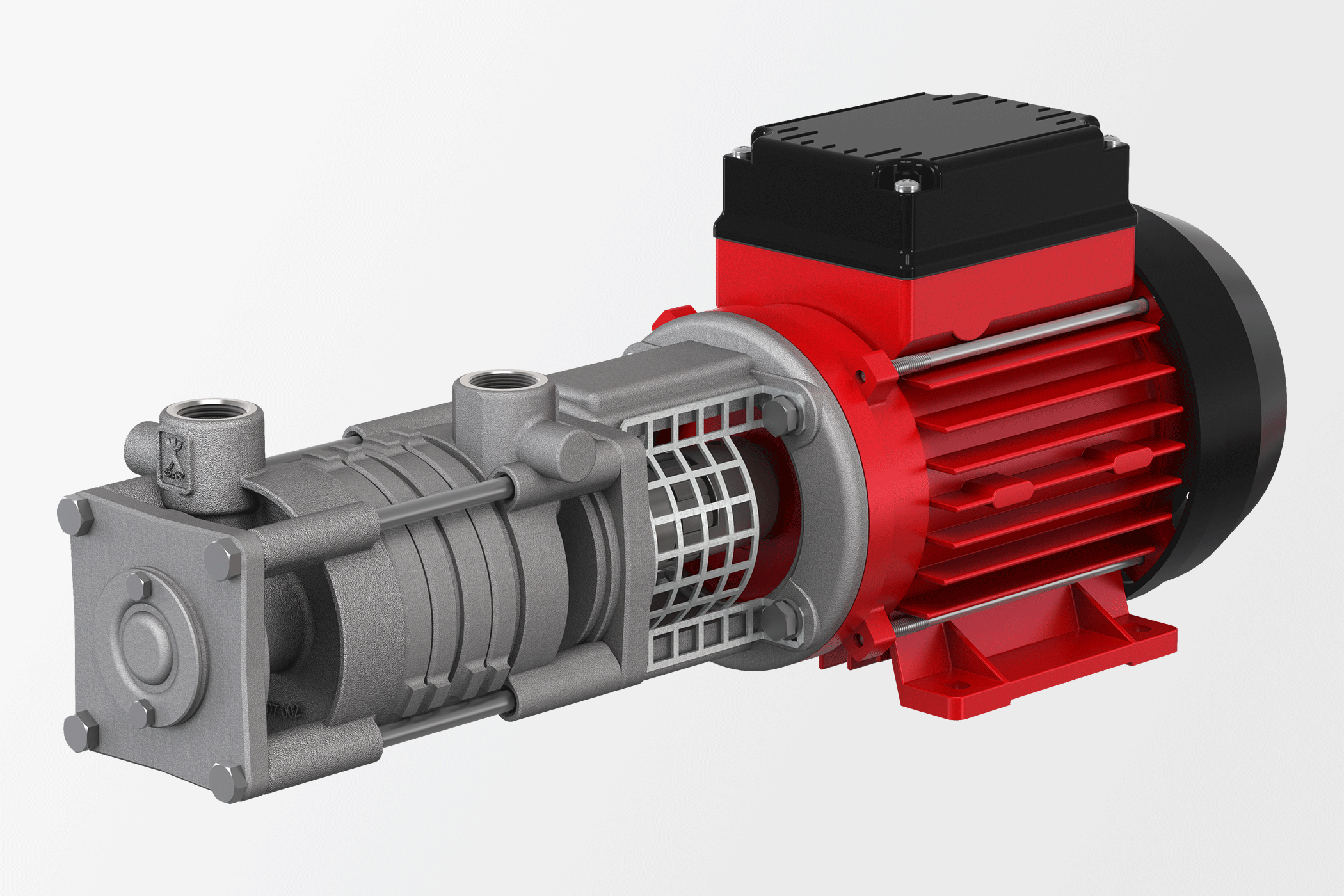

PY-2271/2/3

Close-coupled with bracket,self-priming, multi-stage

ISO

50 Hz / 60 Hz:

max. 115 m / 16 l/min

US

50 Hz / 60 Hz:

max. 377 ft / 4 GPM
