Heat Transfer Pumps

Description

Heat Transfer Pumps Advantages

  • High-quality, reliable pumps for low- and high-temperature applications
  • Safe in operation, easy to service and robust

Heat Transfer Pumps Description

  • Modular system with 6 model series
  • Pumps with mechanical seal or magnetic coupling, with a volute casing or inline casing, with a base plate or bracket
  • PN 16, bearing brackets 360 and 470
  • Pumps with centreline mounting and/or double volutes
  • Spheroidal graphite cast iron and stainless steel designs
  • Tmax
    Hot water up to 160 °C, up to 180 °C upon request
    Heat transfer oils from -100 °C to 350 °C, up to 400 °C upon request
  • ATEX II 2GD IIC cb TX

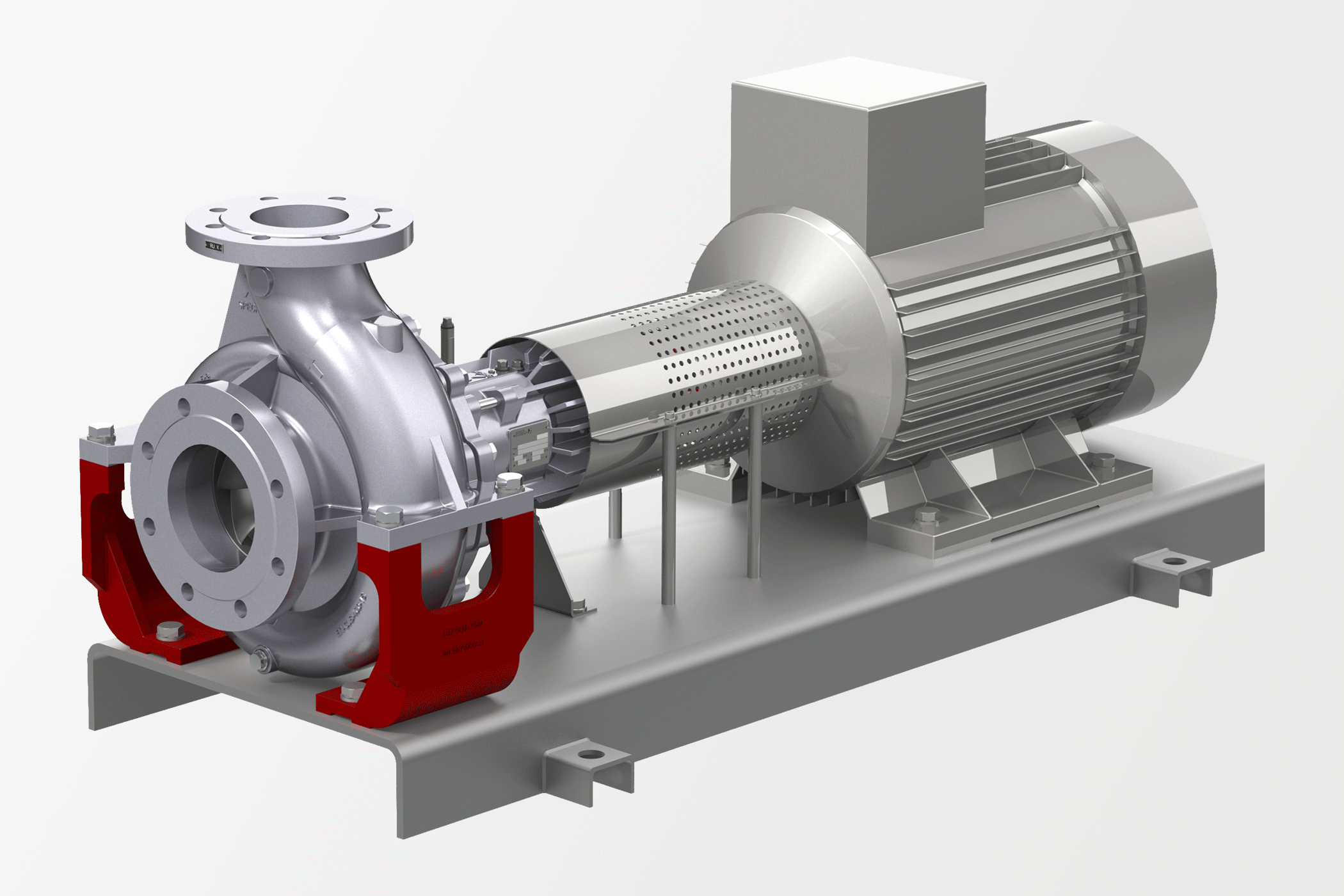

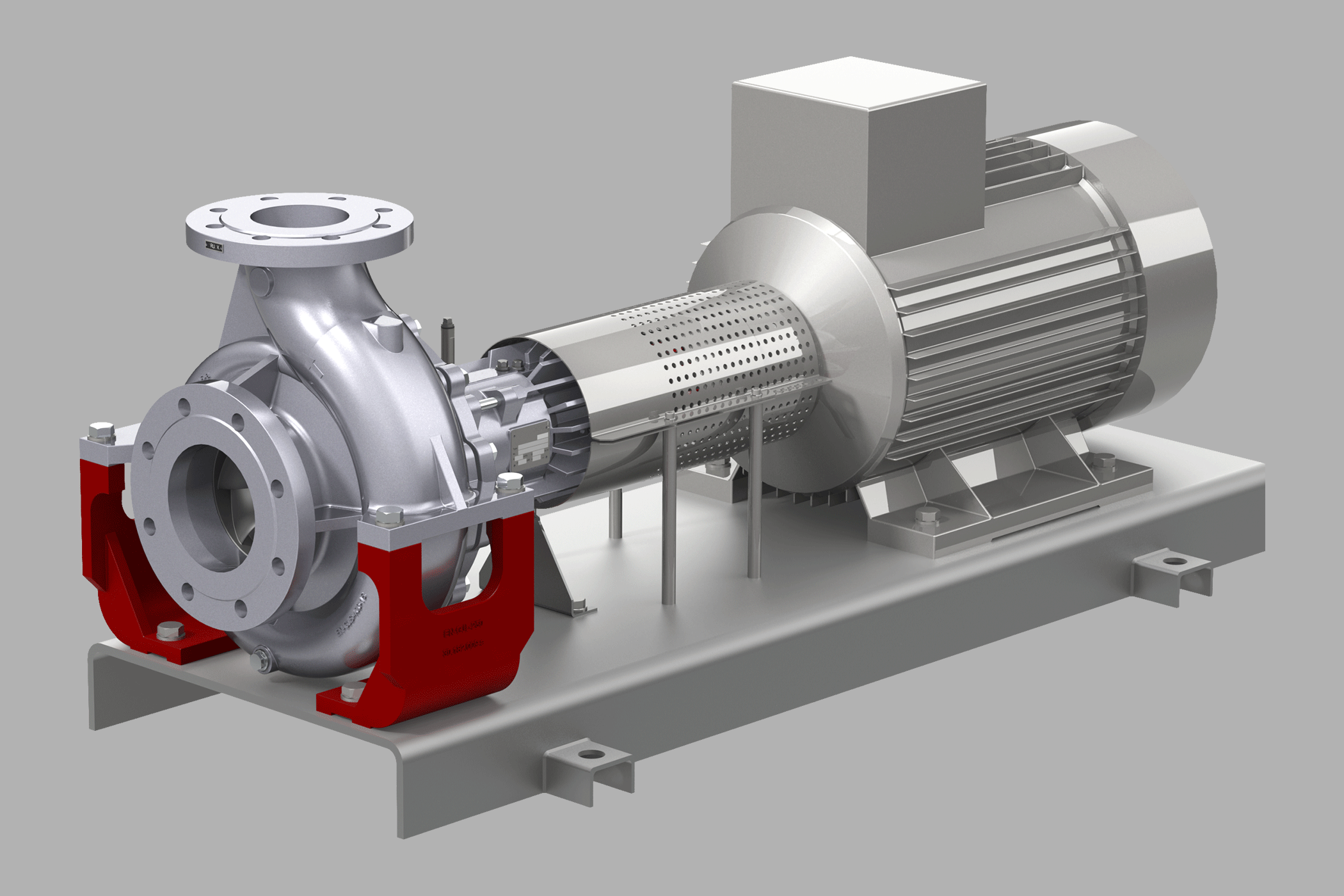

TOEGN, TOEGA, TOEGI

eat transfer pumps with mechanical seal

ISO

50 Hz: 2900 1/min,

max. 100 m / 540 m³/h

60 Hz: 3500 1/min,

max. 100 m / 460 m³/h

US
p class=”bodytext”>with mechanical seal

50 Hz: 2900 1/min,

max. 328 ft / 2378 GPM

60 Hz: 3500 1/min,

max. 328 ft / 2025 GPM

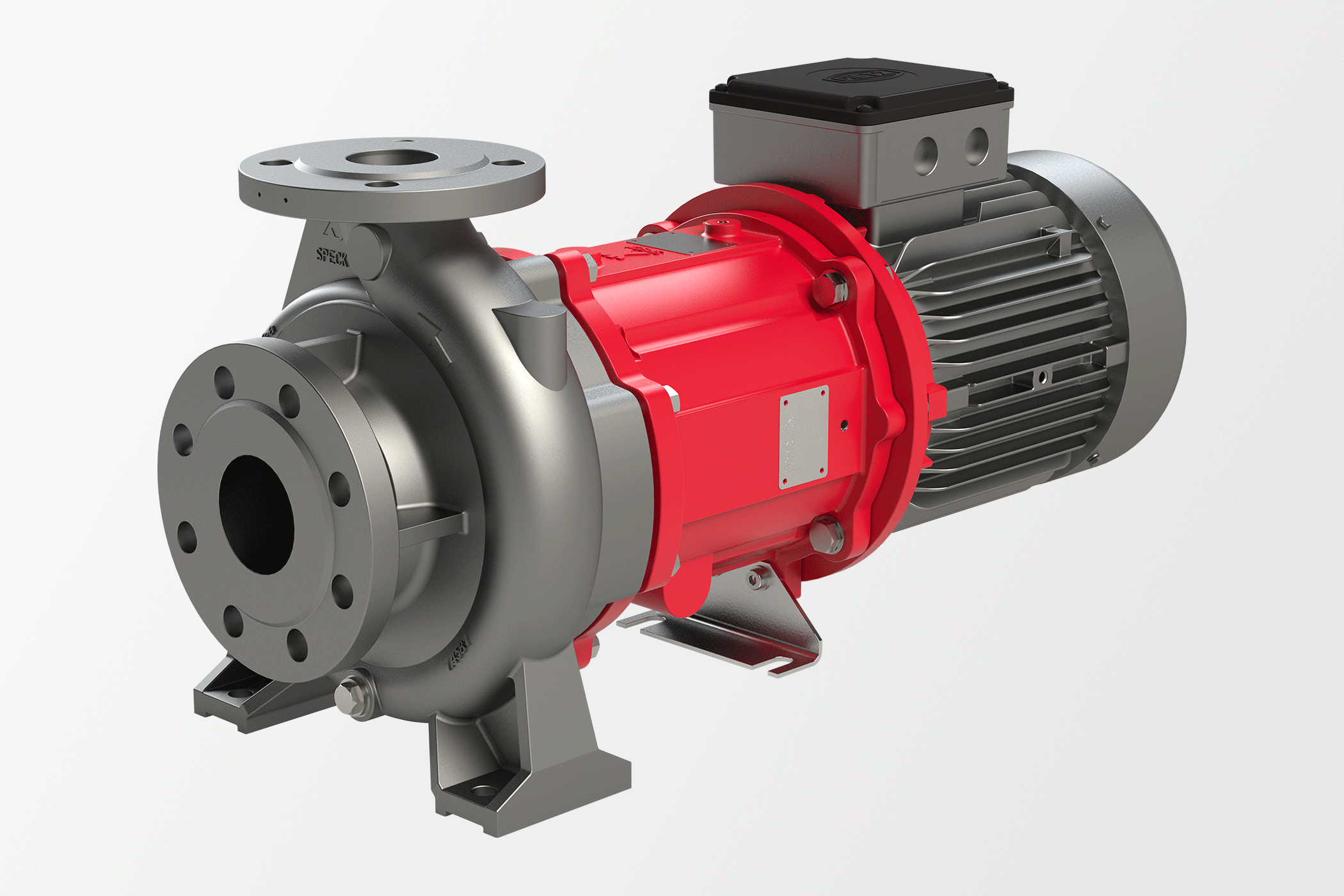

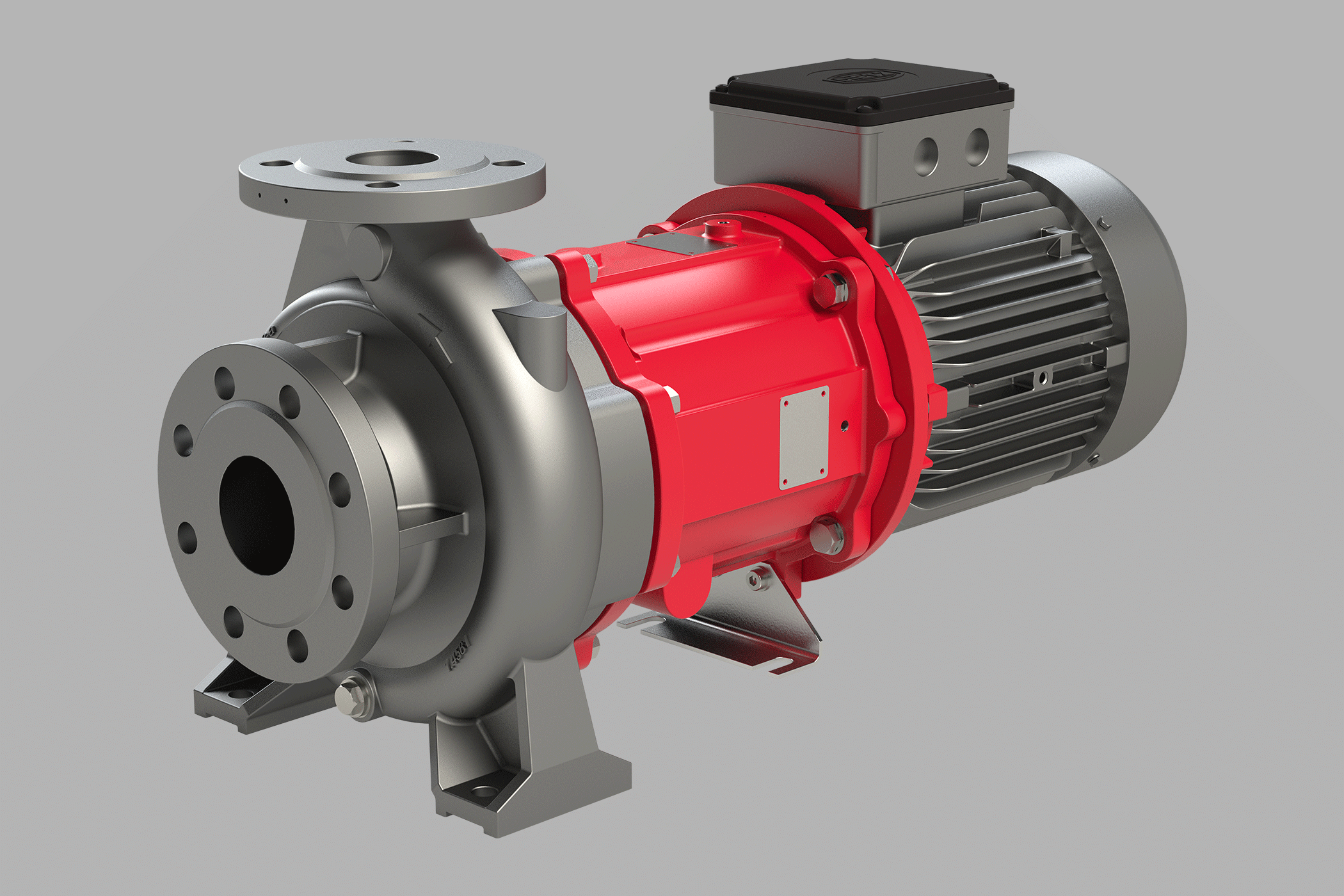

TOEMN, TOEMA, TOEMI

Heat transfer pumps with magnetic coupling

ISO

50 Hz: 2900 1/min,

max. 100 m / 540 m³/h

60 Hz: 3500 1/min,

max. 100 m / 460 m³/h
US

with magnetic coupling

50 Hz: 2900 1/min,

max. 328 ft / 2378 GPM

60 Hz: 3500 1/min,

max. 328 ft / 2025 GPM
