Heat Transfer Pumps With Magnetic Coupling

Description

Heat Transfer Pumps With Magnetic Coupling Advantages

  • High-quality, robust and reliable pumps for continuous operation
  • Leakage-free, low-maintenance and safe in operation
  • Hot water version “HT” designed for high system pressures
  • Thermal oil version “TOE” impervious to low-boilers in the delivery medium

Heat Transfer Pumps With Magnetic Coupling Description

  • Pump shaft made from ceramic, sleeve bearings made from SiC
  • Connection position top/top, threaded and SAE flanges
  • Normal-priming
  • High-quality magnetic couplings
  • Stainless steel and spheroidal graphite cast iron designs
  • Tmax
    Water up to 220 °C
    Oil up to 400 °C
    Further media upon request
  • ATEX II 2GD IIC cb TX

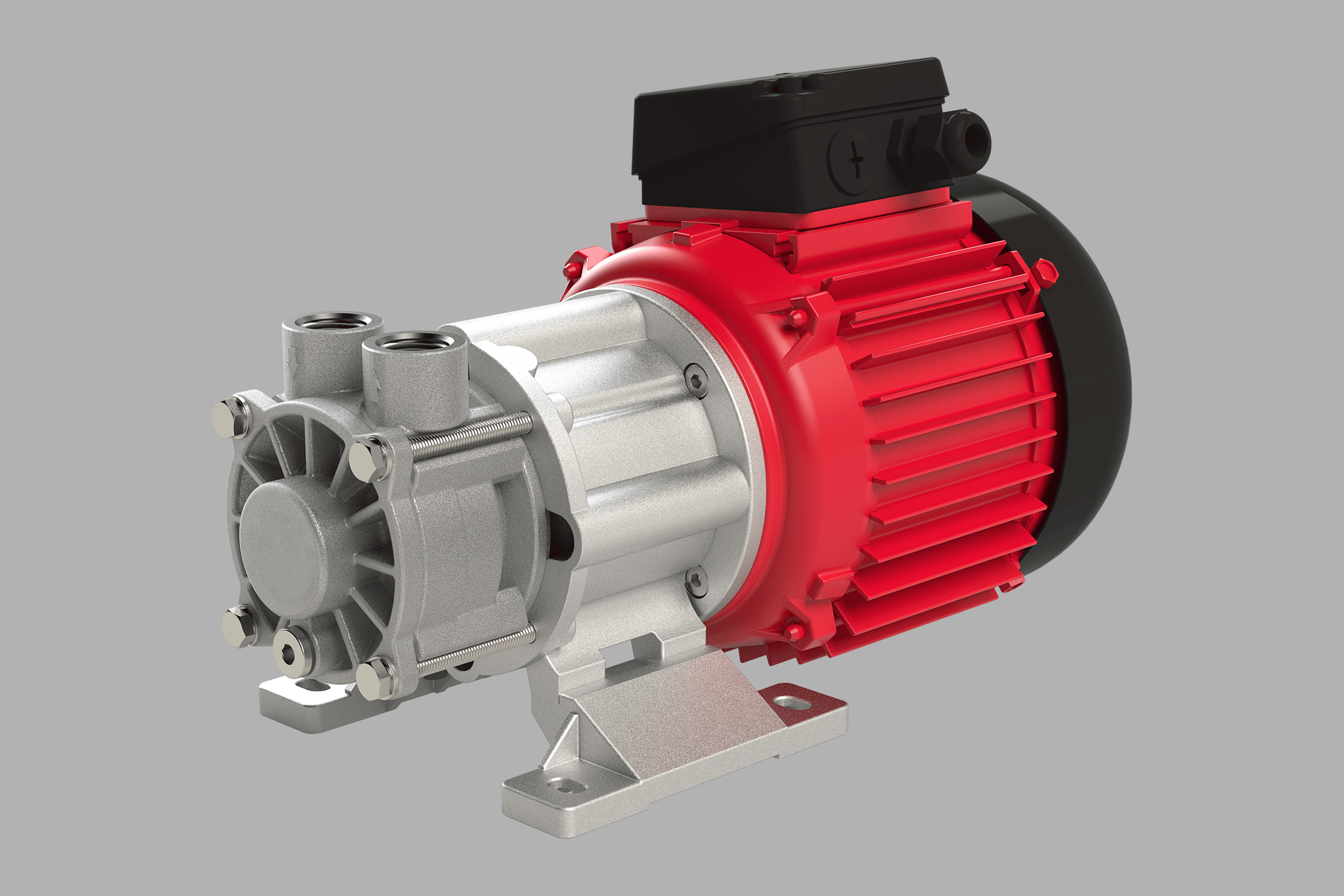

HT-AY-2251-PM

Close-coupled, with controlled PM synchronous motor

ISO

Water max. 230 °C

1000 – 4000 1/min

max. 88 m / 48 l/min

US

Water max. 230 °C

1000 – 4000 1/min

max. 290 ft / 12,7 GPM

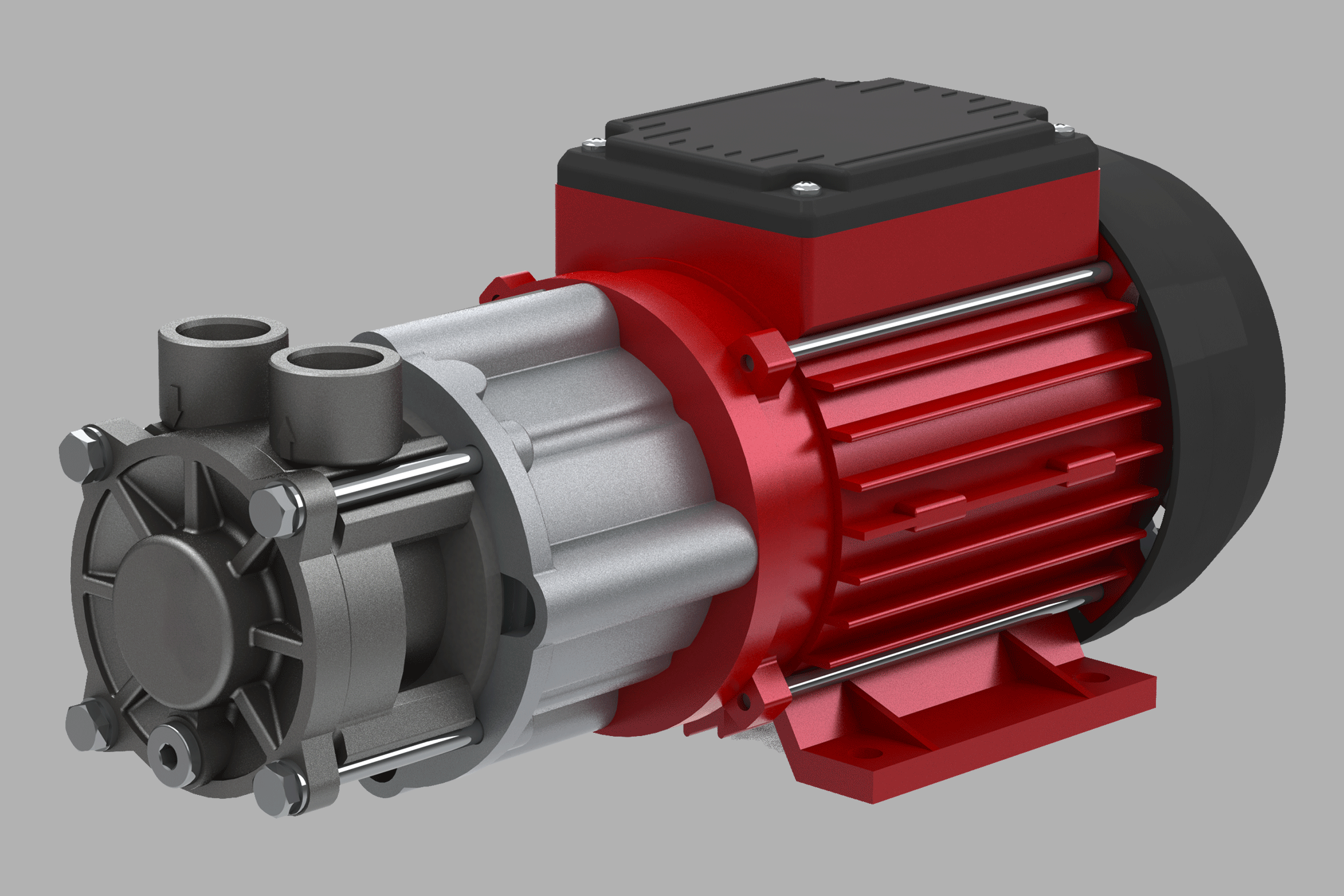

NPY-2251-MK-HT

Close-coupled

ISO

Water max. 220 °C

50 Hz / 60 Hz:

max. 49 m / 28 l/min

US

Water max. 220 °C

50 Hz / 60 Hz:

max. 161 ft / 7 GPM

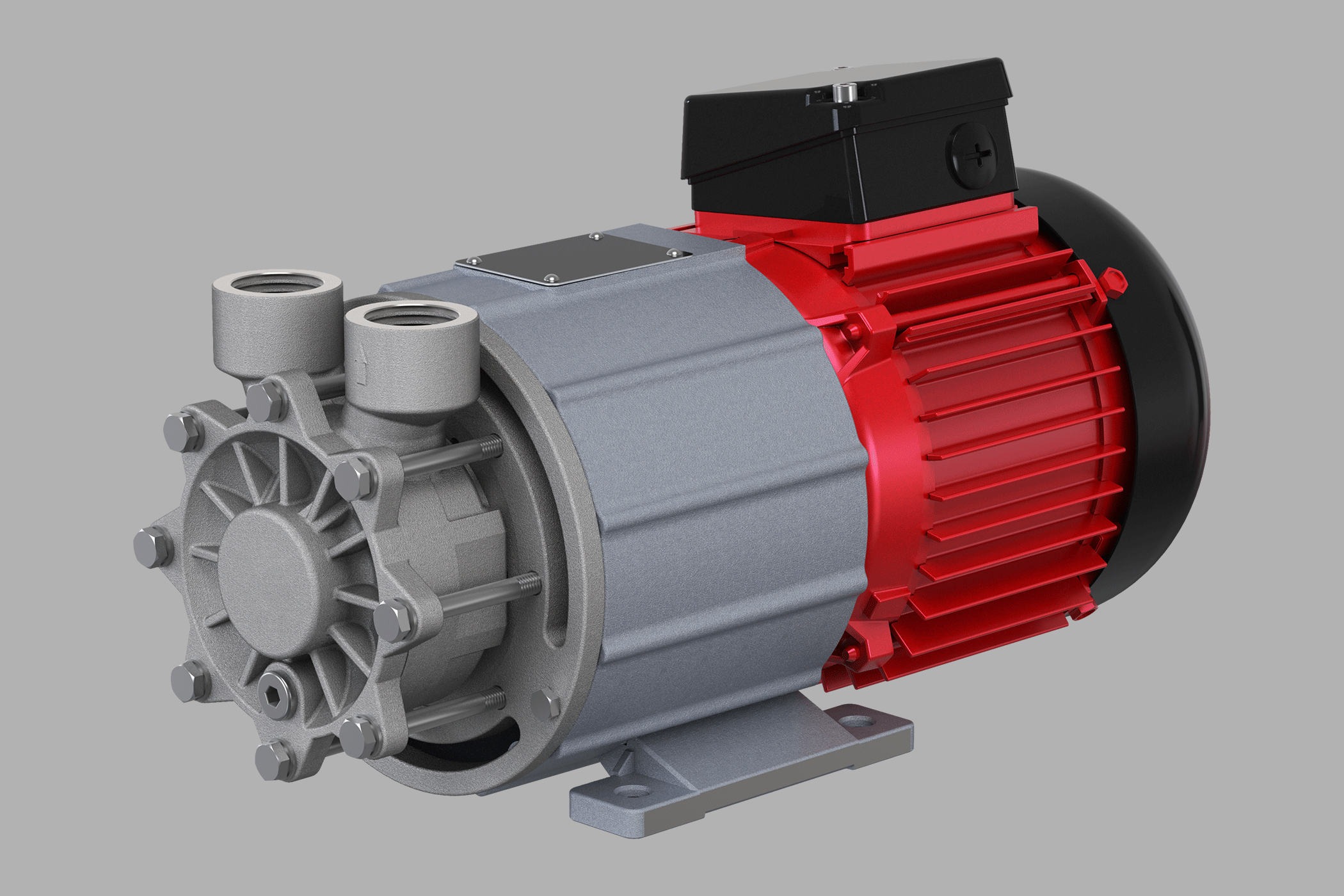

HT-AY-4281-PM

Close-coupled, with controlled PM synchronous motor

ISO

Water max. 230 °C

1000 – 4000 1/min

max. 112 m / 75 l/min

US

Water max. 230 °C

1000 – 4000 1/min

max. 370 ft / 19,8 GPM

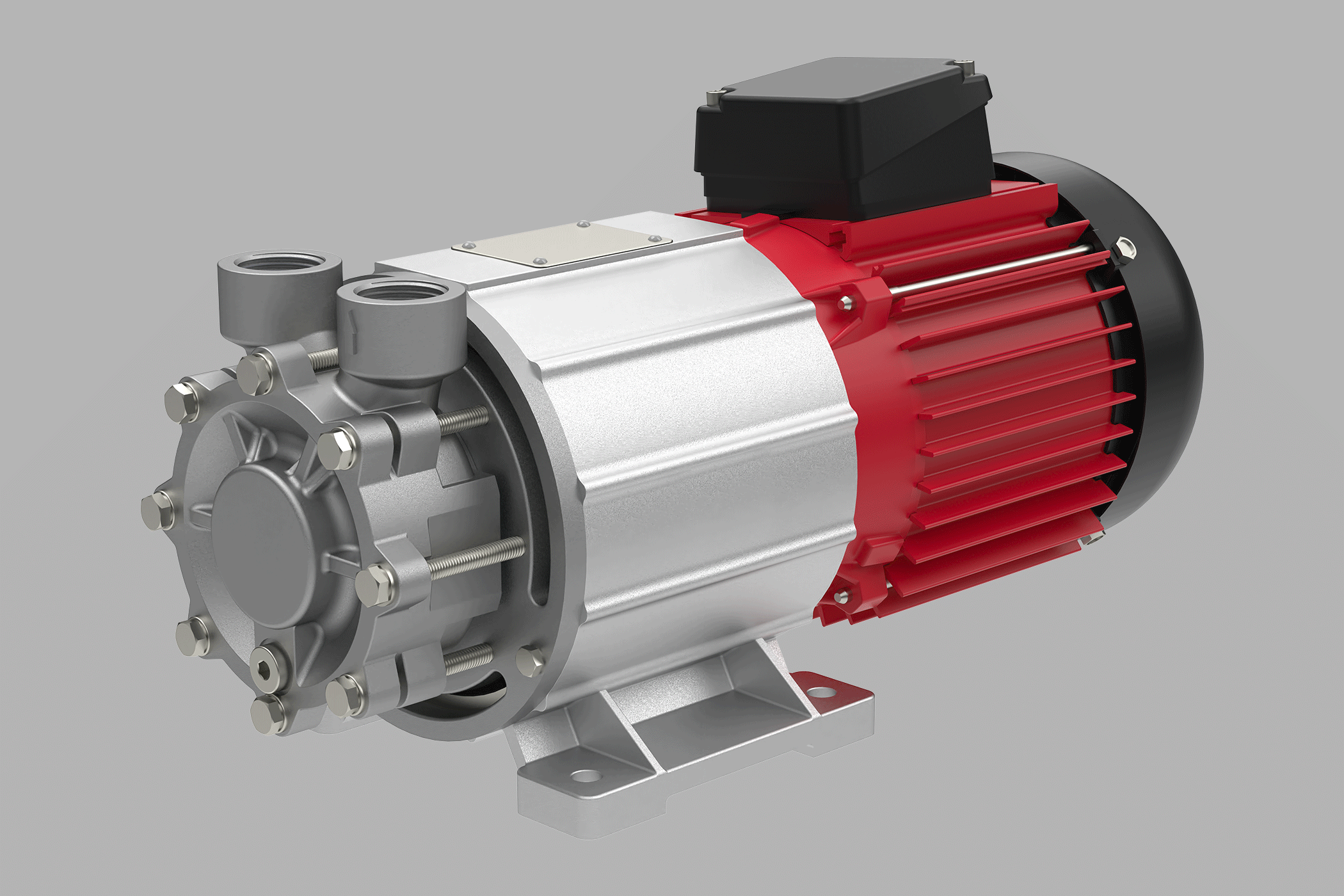

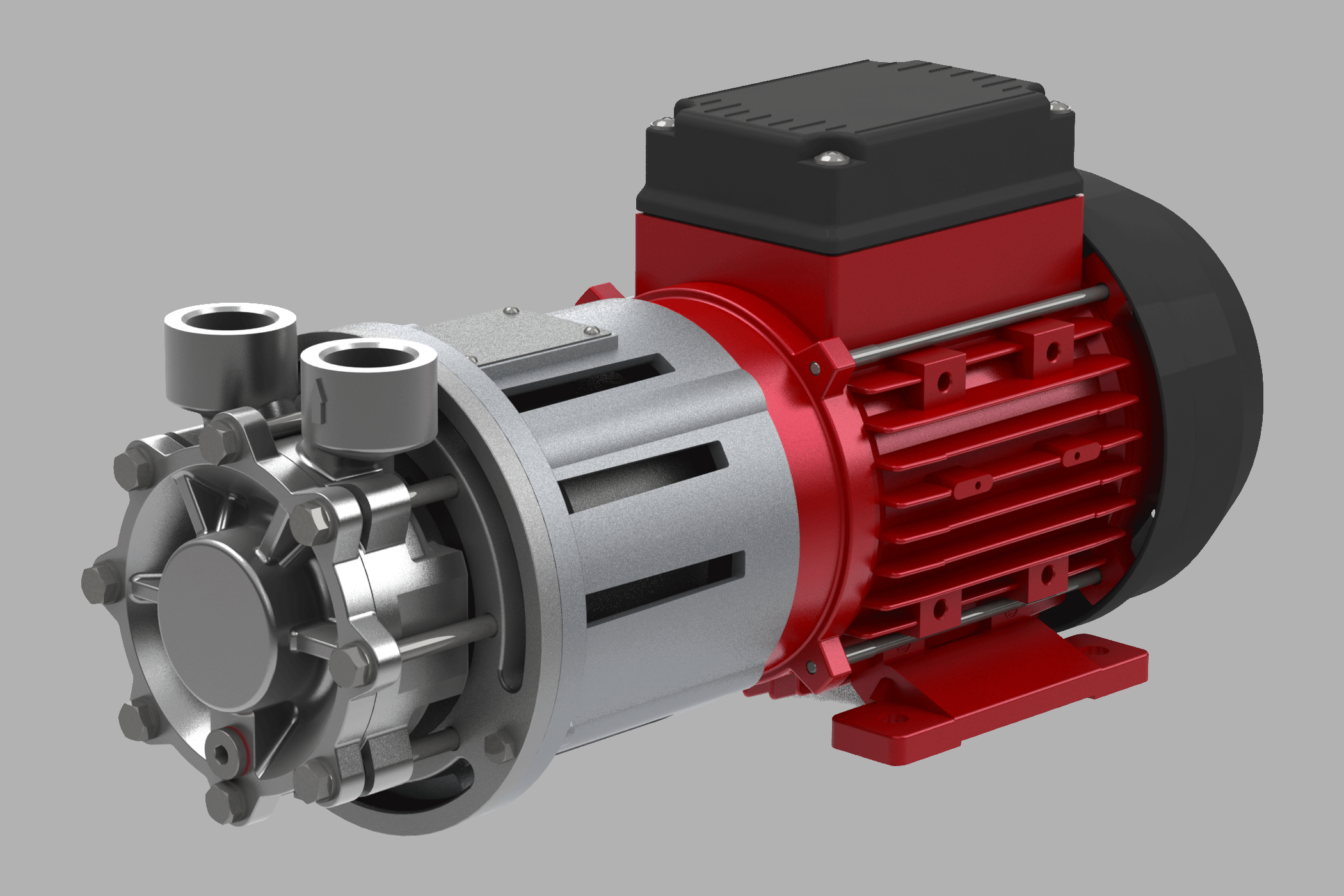

CY-4281-MK-HT

Close-coupled

ISO

Water max. 220 °C

50 Hz / 60 Hz:

max. 78 m / 90 l/min

US

Water max. 220 °C

50 Hz / 60 Hz:

max. 256 ft / 24 GPM

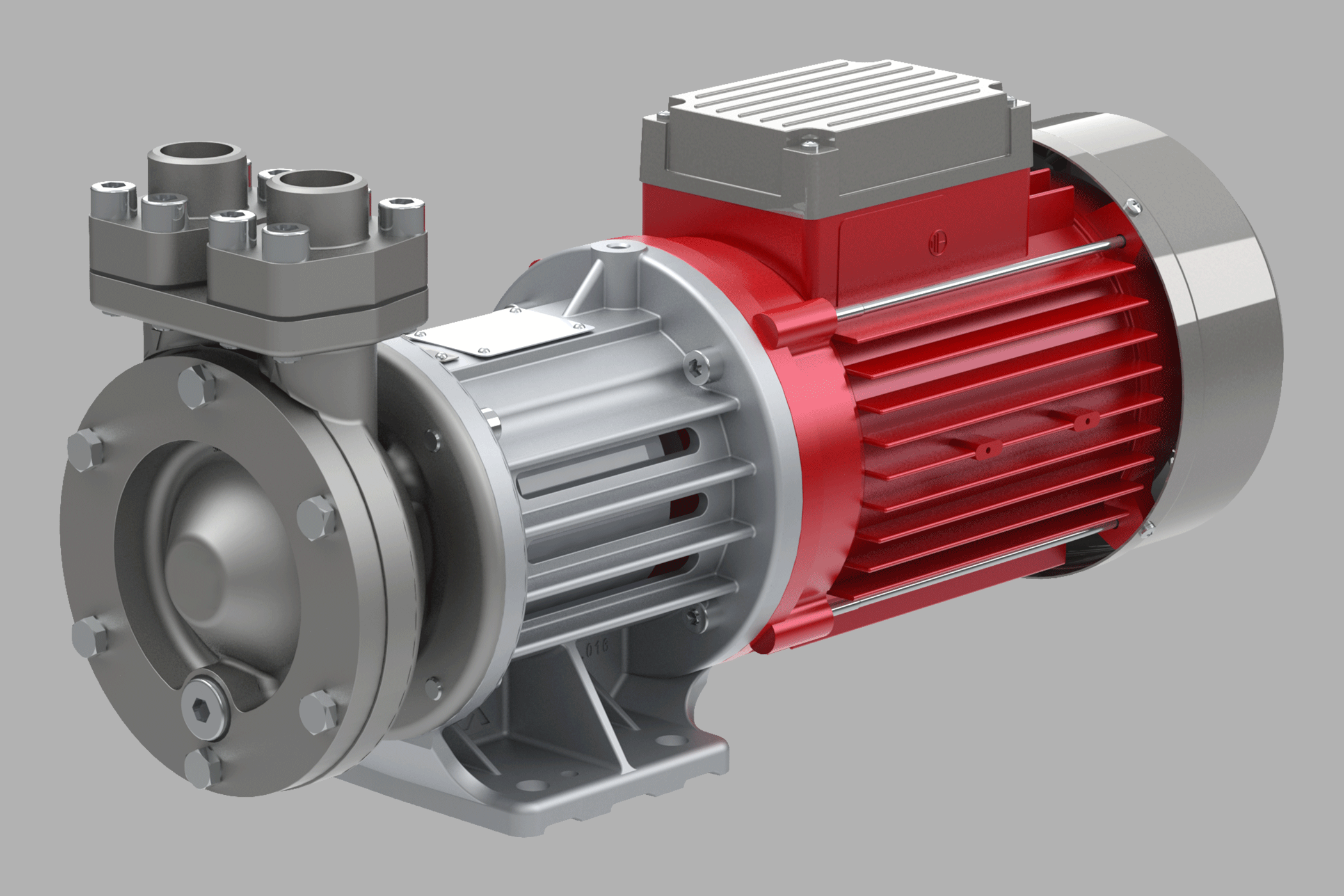

CY-6091-MK-HT

Close-coupled

ISO

Water max. 220 °C

50 Hz / 60 Hz:

max. 93 m / 200 l/min

US

Water max. 220 °C

50 Hz / 60 Hz:

max. 305 ft / 53 GPM

TOE-AY-2251-PM

Close-coupled, with controlled PM synchronous motor

ISO

Thermal oil max. 350 °C

1000 – 4000 1/min

max. 88 m / 48 l/min

max. 112 m / 75 l/min

US

Water max. 160 °C

Thermal oil max. 180 °C

1000 – 4000 1/min

max. 290 ft / 12,7 GPM

NPY-2251-MK-TOE

Close-coupled

ISO

Thermal oil max. 350 °C

50 Hz / 60 Hz:

max. 49 m / 28 l/min

US

Thermal oil max. 350 °C

50 Hz / 60 Hz:

max. 161 ft / 7 GPM

TOE-AY-4281-PM

Close-coupled, with controlled PM synchronous motor

ISO

Thermal oil max. 350 °C

1000 – 4000 1/min

max. 112 m / 75 l/min

US

Thermal oil max. 350 °C

1000 – 4000 1/min

max. 370 ft / 19,8 GPM

CY-4281-MK-TOE

Close-coupled

ISO

Thermal oil max. 350 °C

50 Hz / 60 Hz:

max. 78 m / 90 l/min

US

Thermal oil max. 350 °C

50 Hz / 60 Hz:

max. 256 ft / 24 GPM

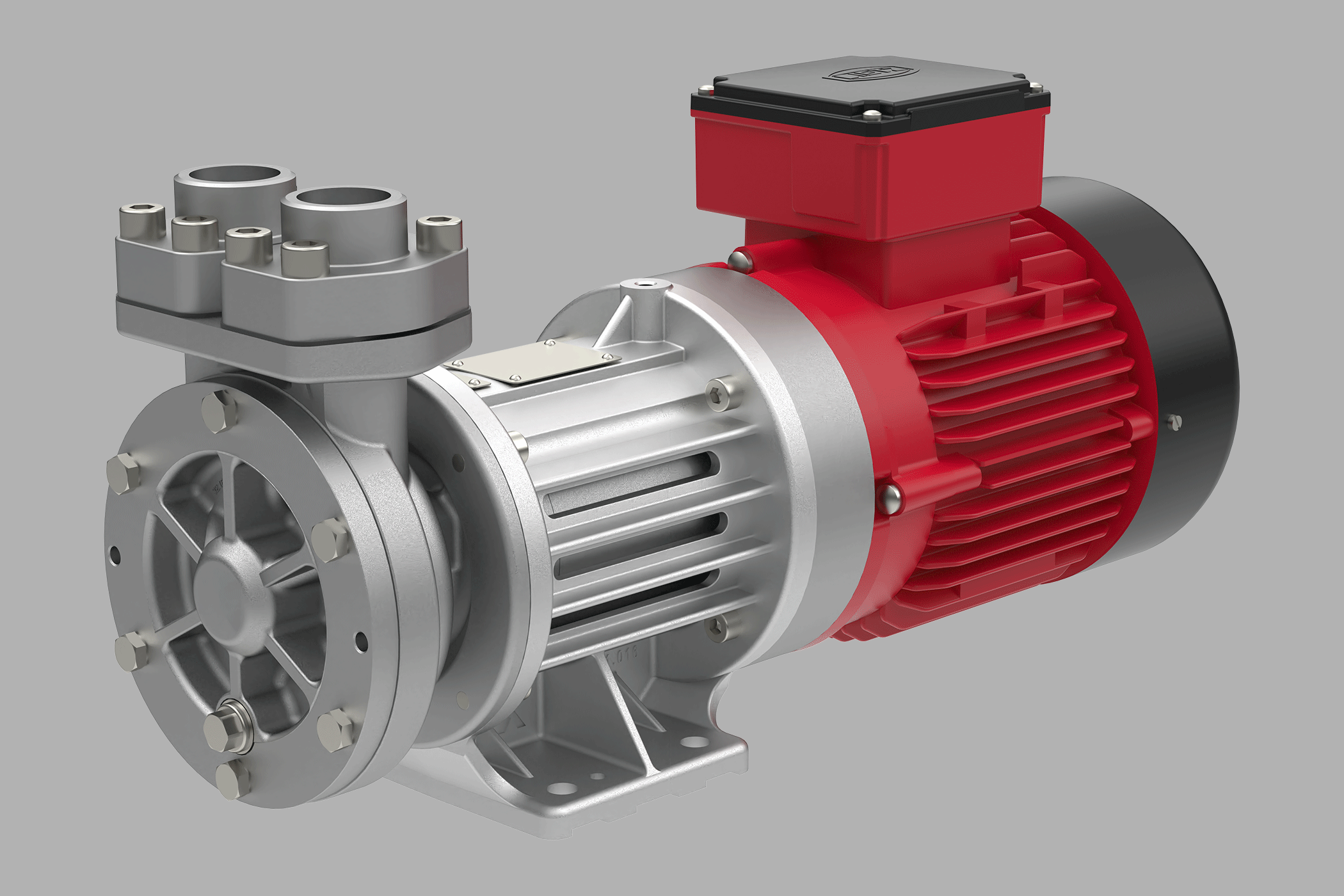

CY-6091-MK-TOE

Close-coupled

ISO

Thermal oil max. 350 °C

50 Hz / 60 Hz:

max. 93 m / 200 l/min

US

Thermal oil max. 350 °C

50 Hz / 60 Hz:

max. 305 ft / 53 GPM
