Sealless Vertical Pumps

Description

Sealless Vertical Pumps Advantages

  • Universally deployable pumps for open circuits
  • Sealless and therefore maintenance-free
  • Small dimensions

Sealless Vertical Pumps Description

  • Vertical single-stage or multi-stage pumps
  • Horizontal, threaded pressure connection
  • Various submersion depths available
  • Robust sleeve bearings
  • Material designs:
    T-401/601 in stainless steel
    TM-201 – TM-701 in copper alloy
    T-1001 – T-2001 in copper alloy
  • Tmax
    Water up to 90 °C
    Oil up to 150 °C, up to 200 °C upon request
    Further media upon request

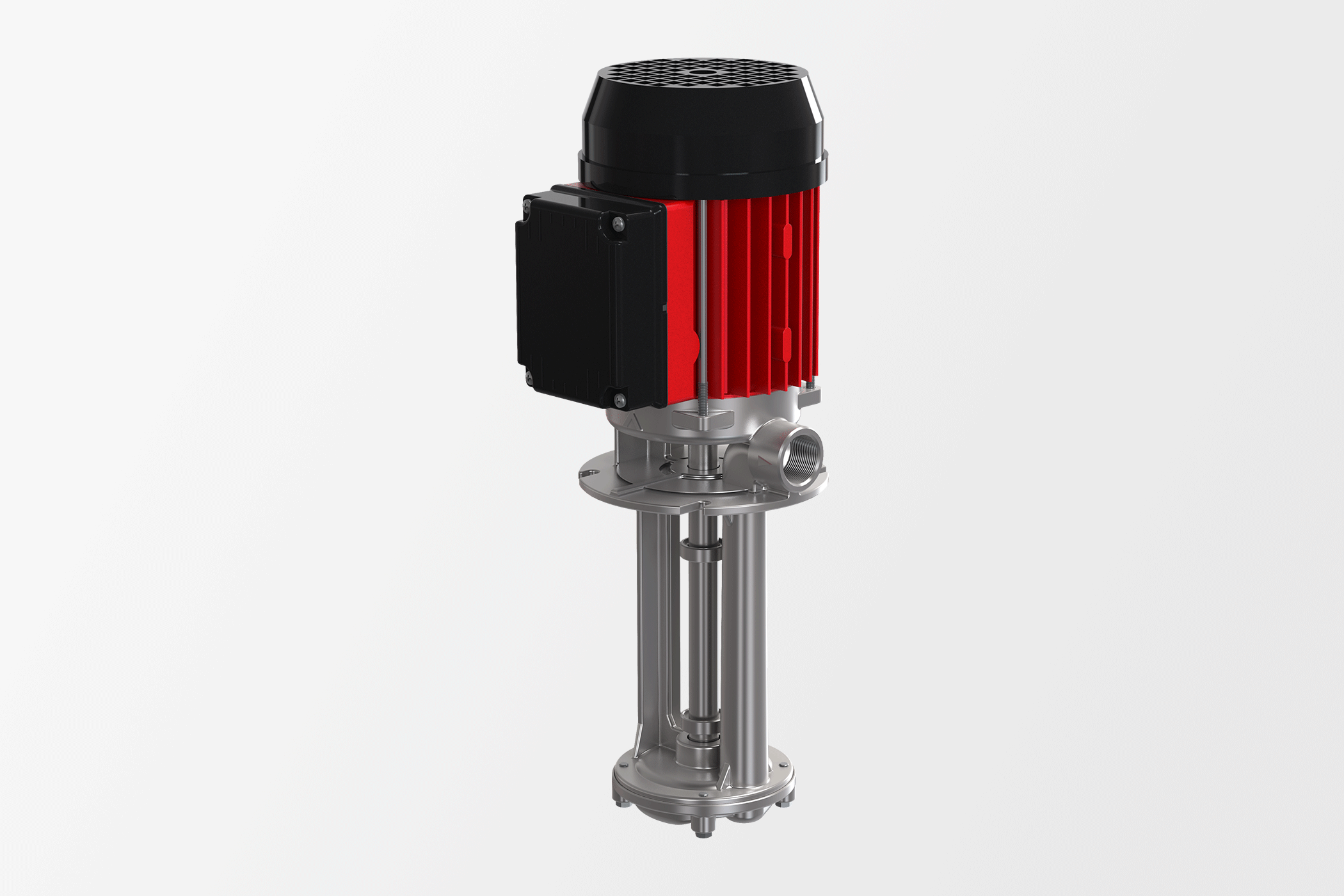

T-401 / 601

Vertical pumps in stainless steel

ISO

50 Hz / 60 Hz:

max. 33 m / 55 l/min

US

50 Hz / 60 Hz:

max. 108 ft / 15 GPM

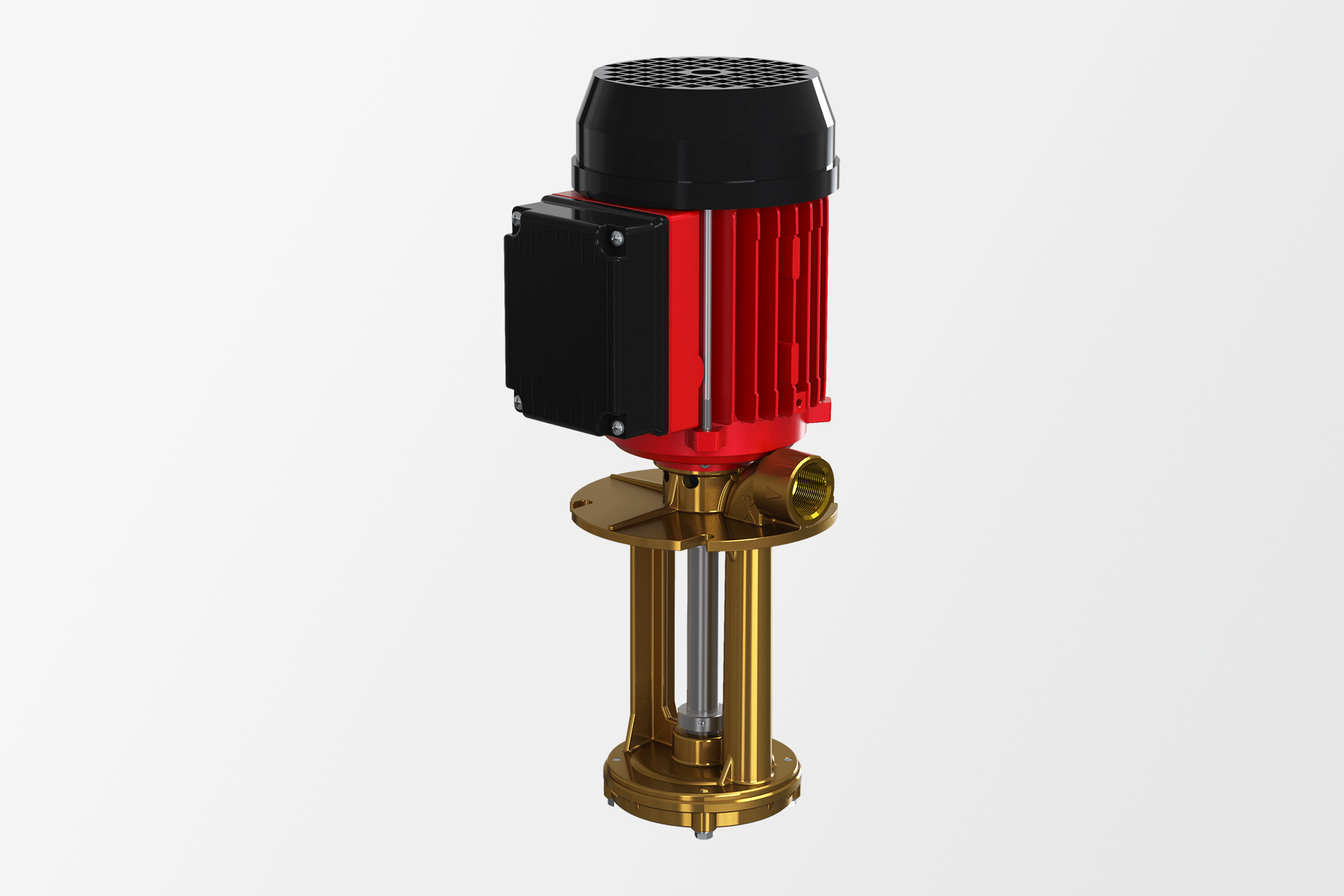

TM-201 – 701

50 Hz / 60 Hz:

max. 85 m / 68 l/min

US

50 Hz / 60 Hz:

max. 279 ft / 18 GPM

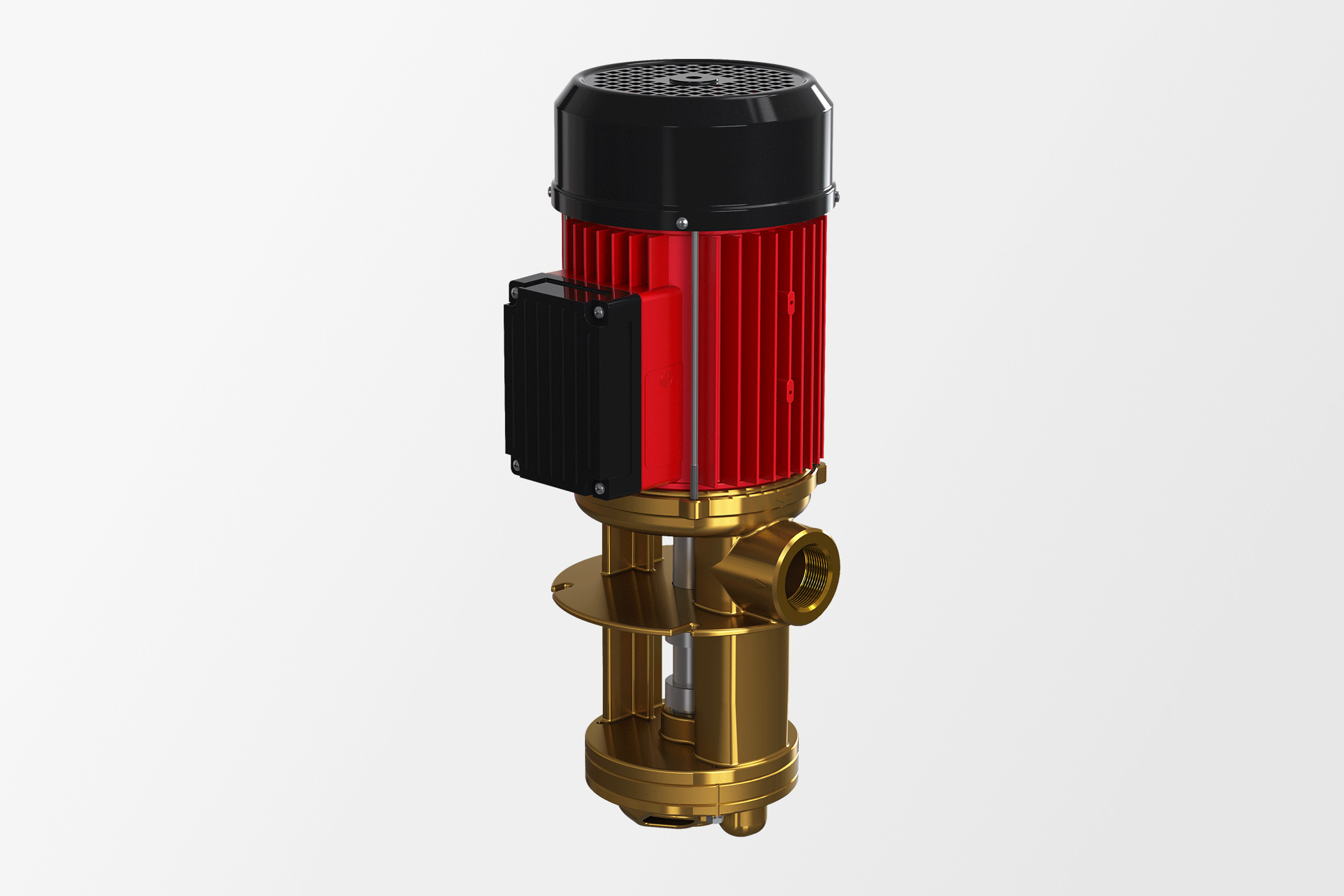

T-1001 – 2001

Vertical pumps in non-ferrous metal

ISO

50 Hz / 60 Hz:

max. 50 m / 200 l/min

US

50 Hz / 60 Hz:

max. 164 ft / 53 GPM
