BluSystems

Description

BluSystems Pumps Advantages

  • Ready-to-connect modular system – developed for wet and dry calibration of plastic profiles
  • Also suitable for condensate recovery
  • Very high energy savings thanks to demand-driven vacuum generation
  • Decentralised vacuum units with smart regulation and simple operation
  • Can be retrofitted – simple installation in the place of existing vacuum pumps
  • Automatic regulation and saving of parameters enables reproducible, consistently high quality of the end products

BluSystems Pumps Description

  • Vacuum units comprising liquid ring vacuum pumps, motors with frequency converter, sensors and operating unit
  • BluVacCompact also with integrated separator tank for extracting air/water mixtures
  • BluVacD (BluVacDecentralised) for existing separator tanks/vacuum tanks in the system
  • BluLine VB based on a side channel blower
  • Control using standard operating panel or via PLC interface

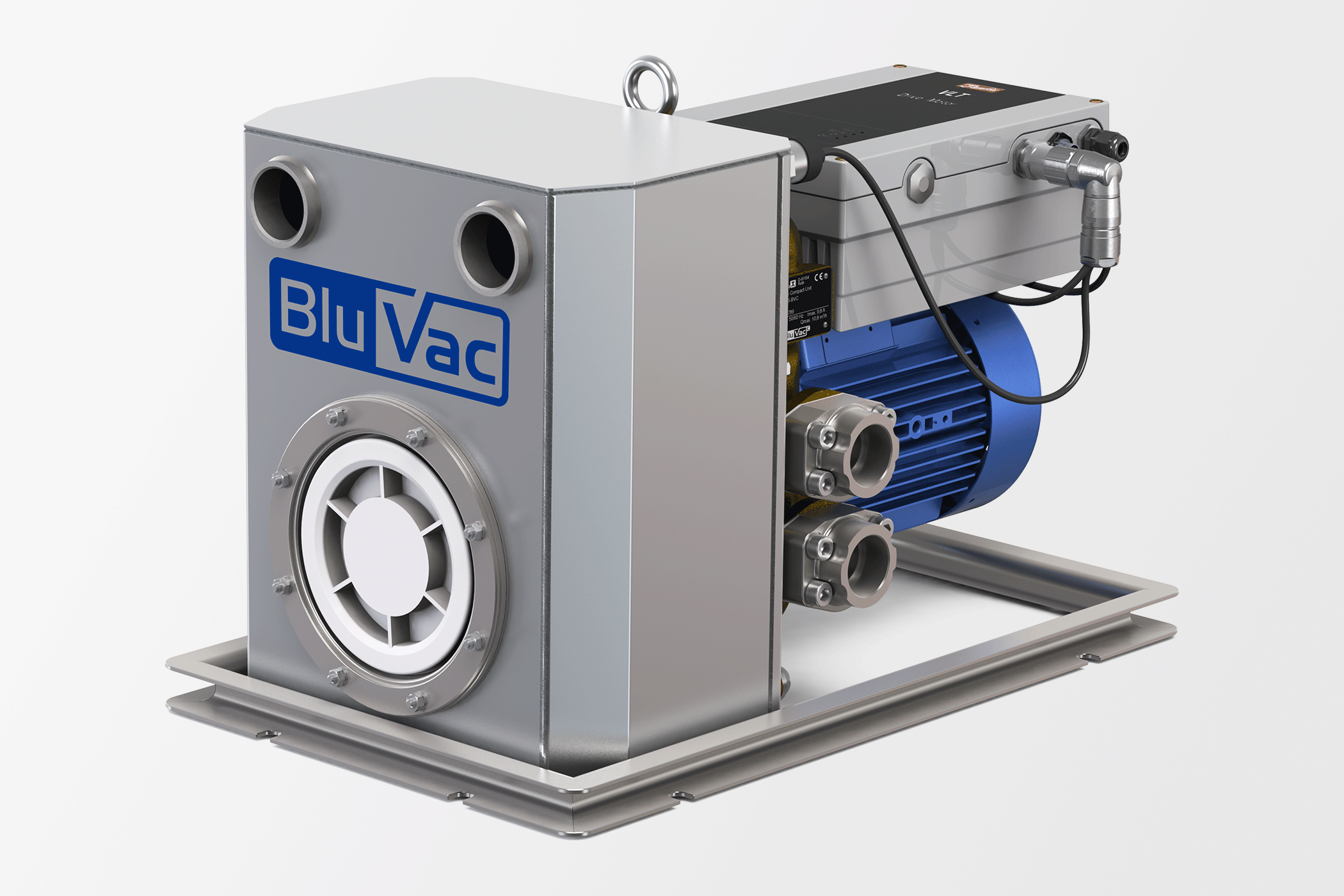

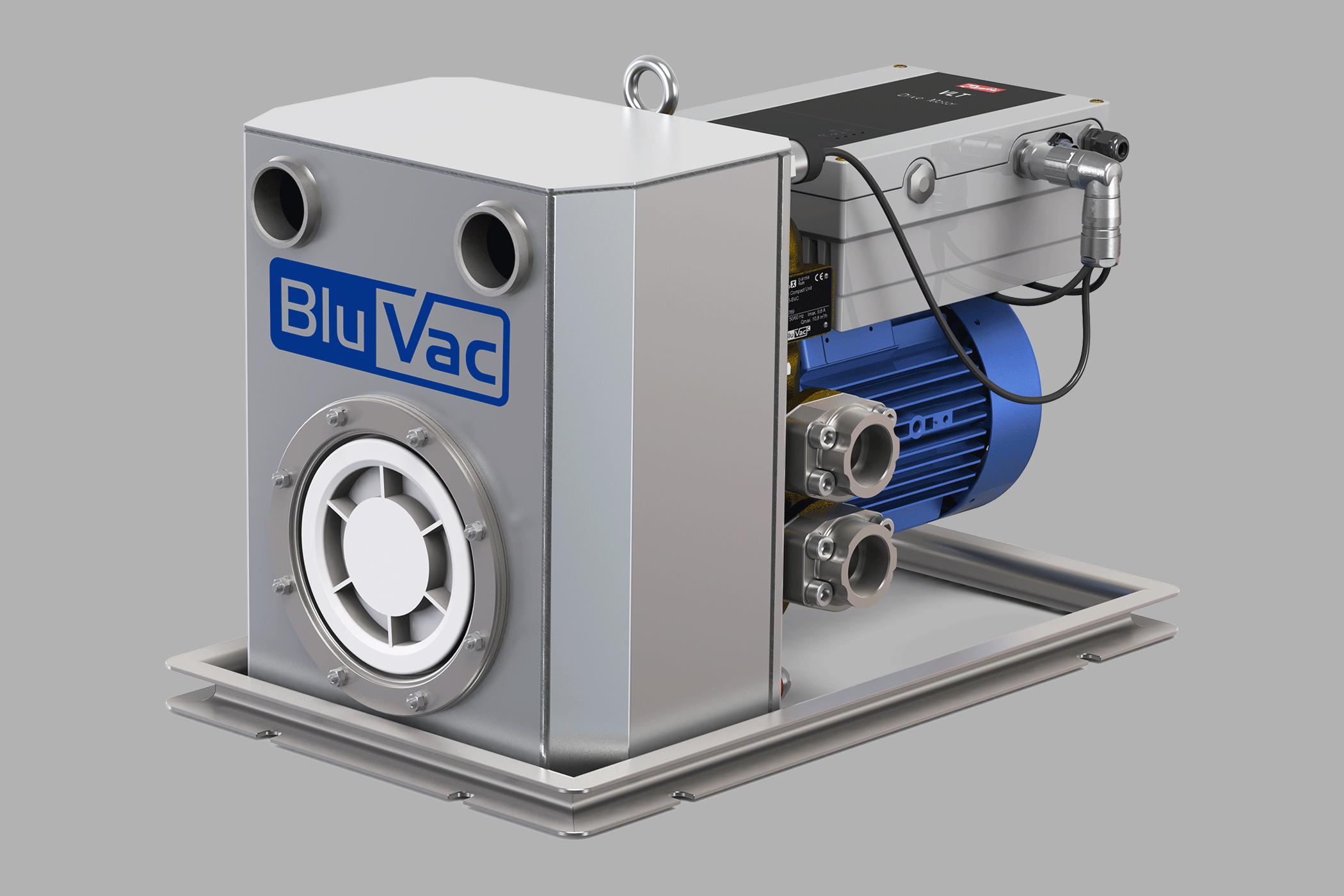

BluVacCompact

Vacuum units for extraction of air-water mixes

ISO

max. -930 mbar rel.

max. 105 m³/h output

min. 6 m³/h water discharge

US

max. -31 inch Hg g

max. 62 CFM output

min. 4 CFM water discharge

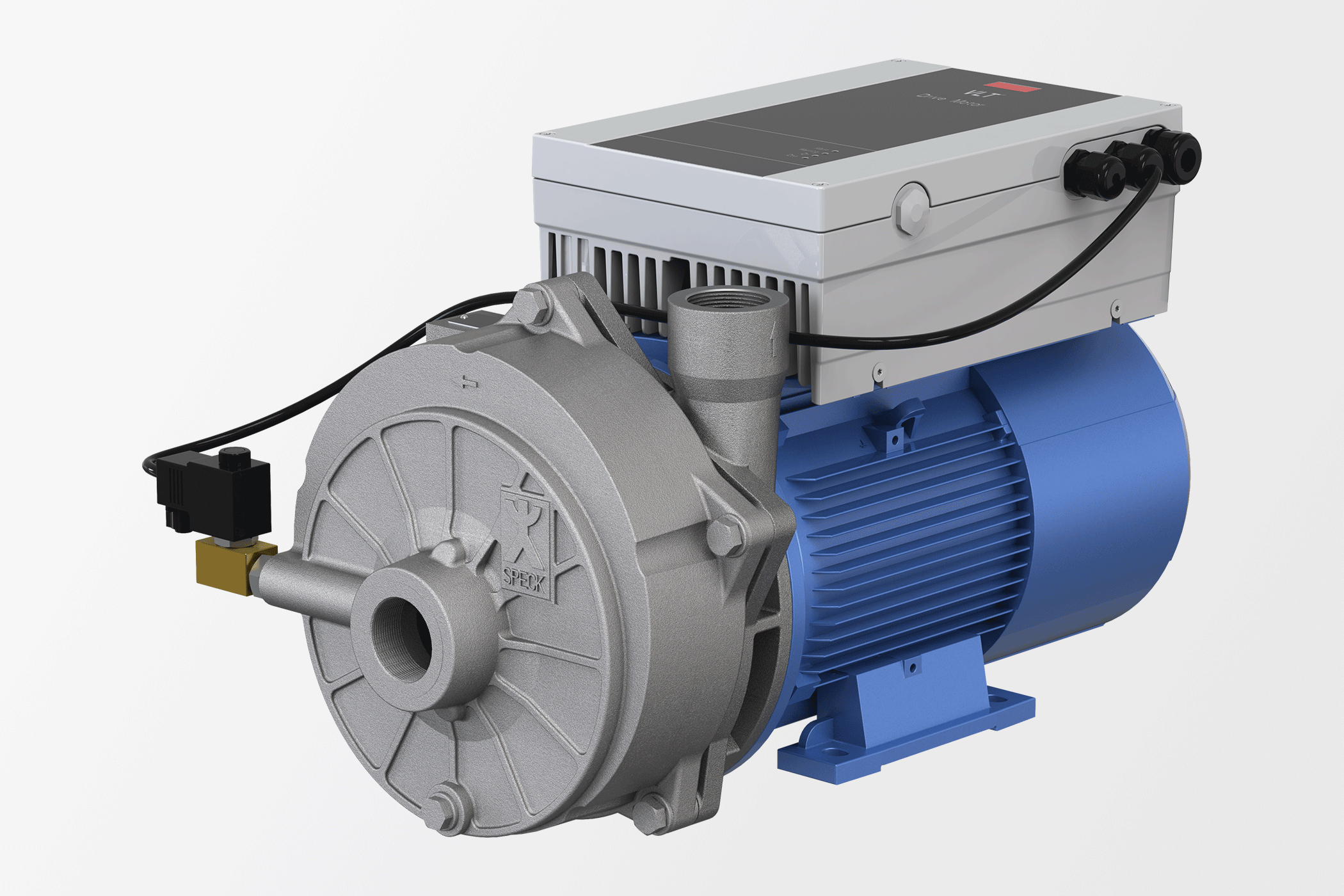

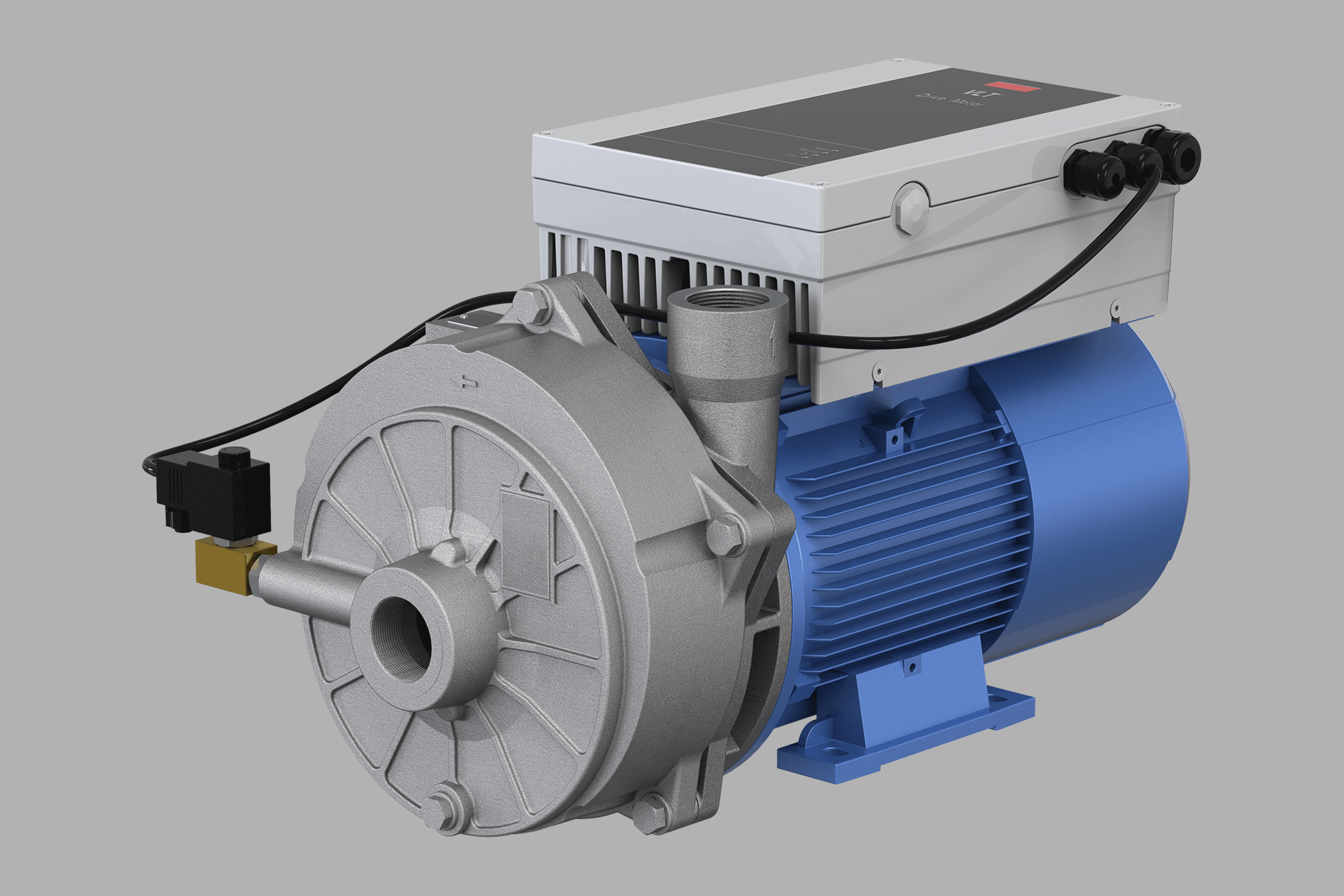

BluLine VN

Vacuum units for extraction of air with high levels of water

ISO

max. -930 mbar rel.

max. 150 m³/h output

max. 4 m³/h water discharge

US

max. -31 inch Hg g

max. 88 CFM output

max. 2 CFM water discharge

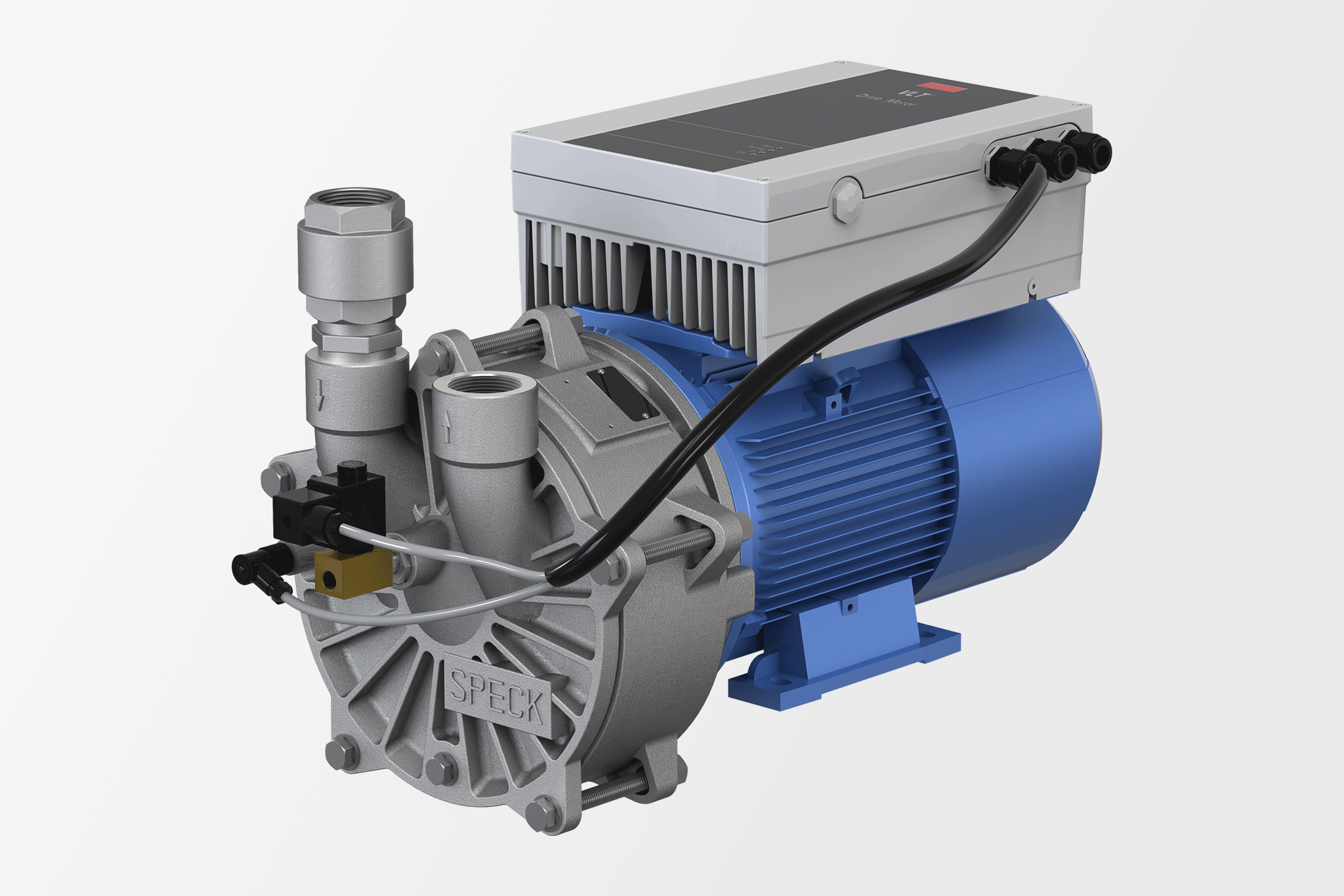

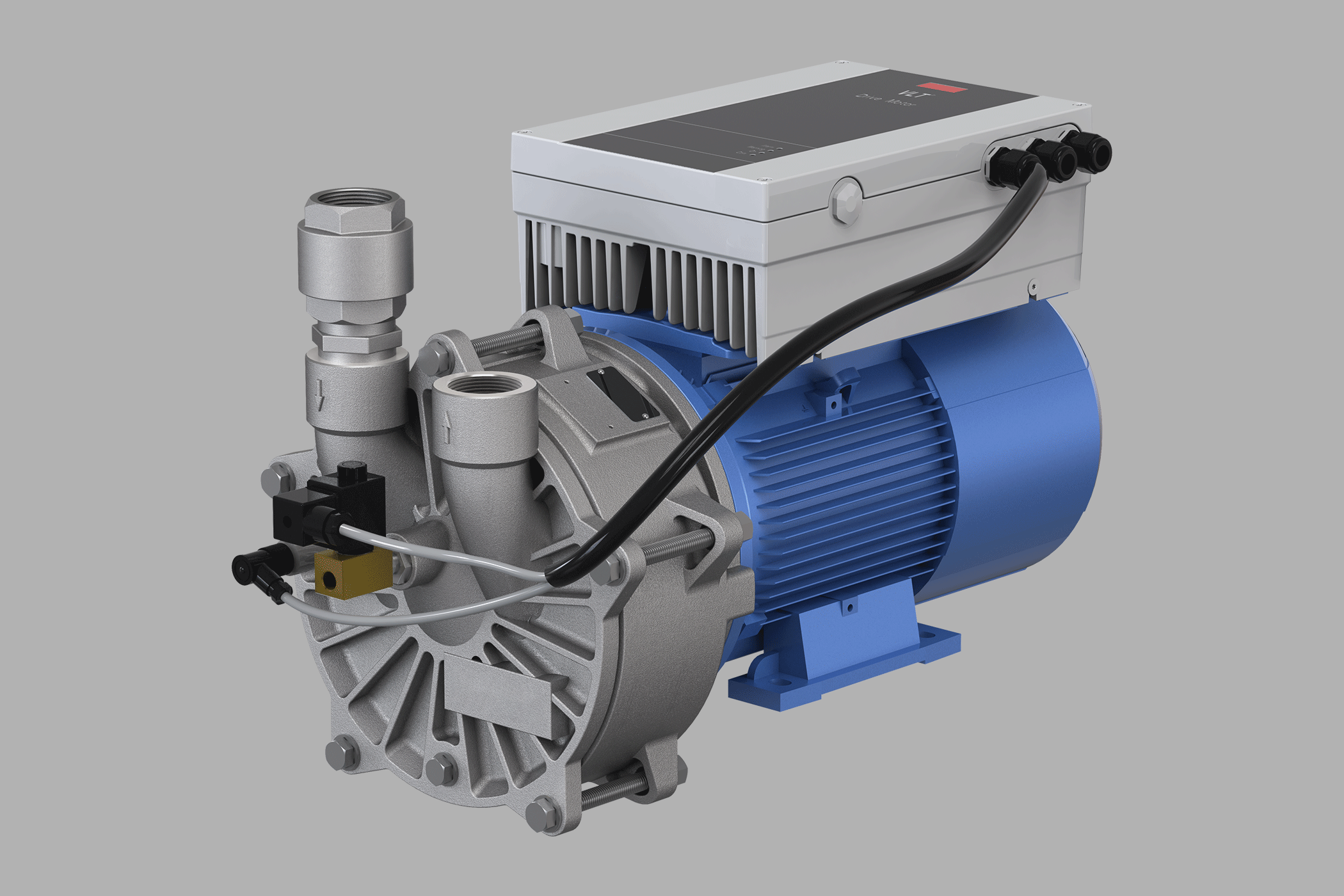

BluLine VG

Vacuum units for extraction of air with low levels of water

ISO

max. -930 mbar rel.

max. 145 m³/h output

max. 2.5 m³/h water discharge

US

max. -31 inch Hg g

max. 85 CFM output

max. 1.5 CFM water discharge

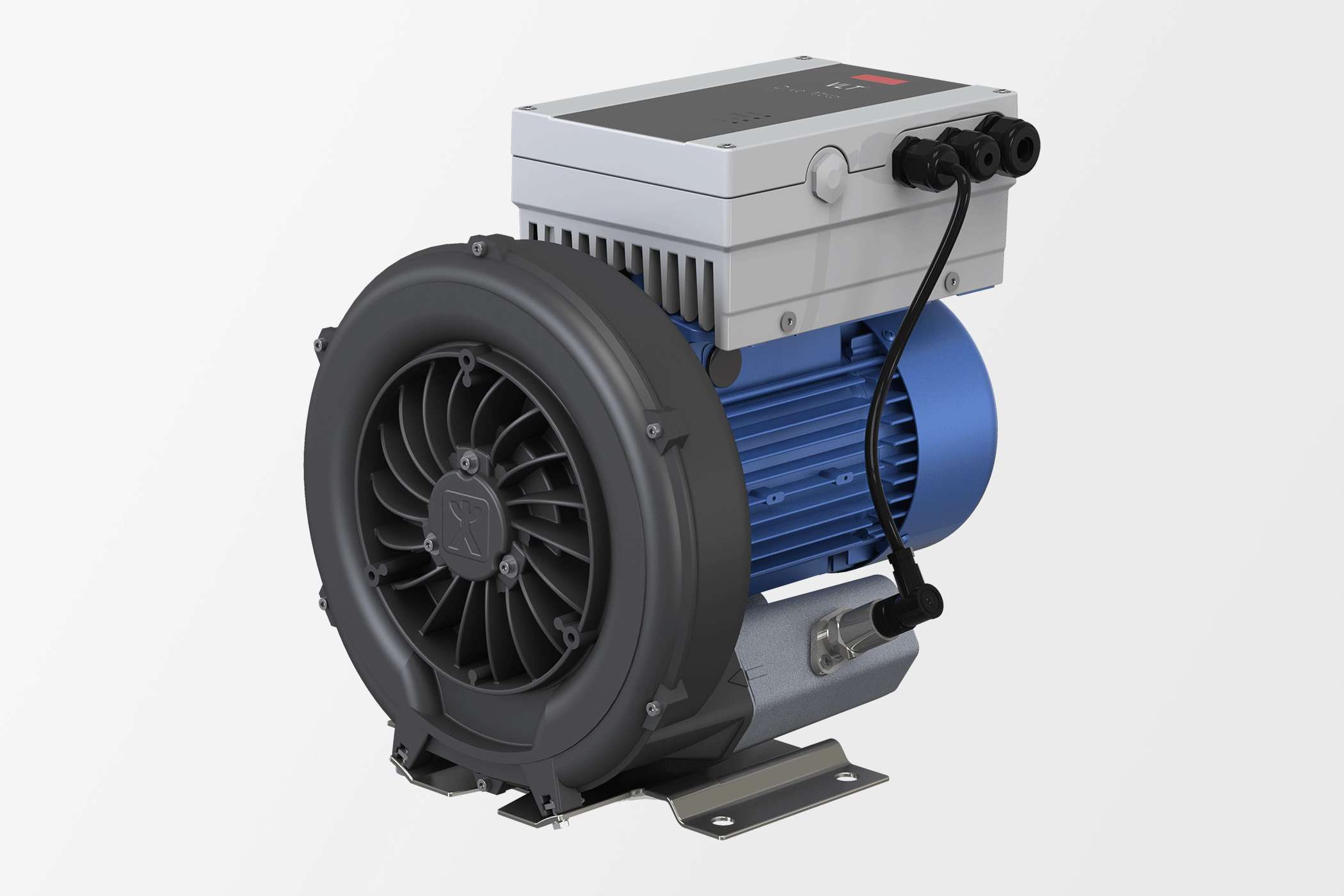

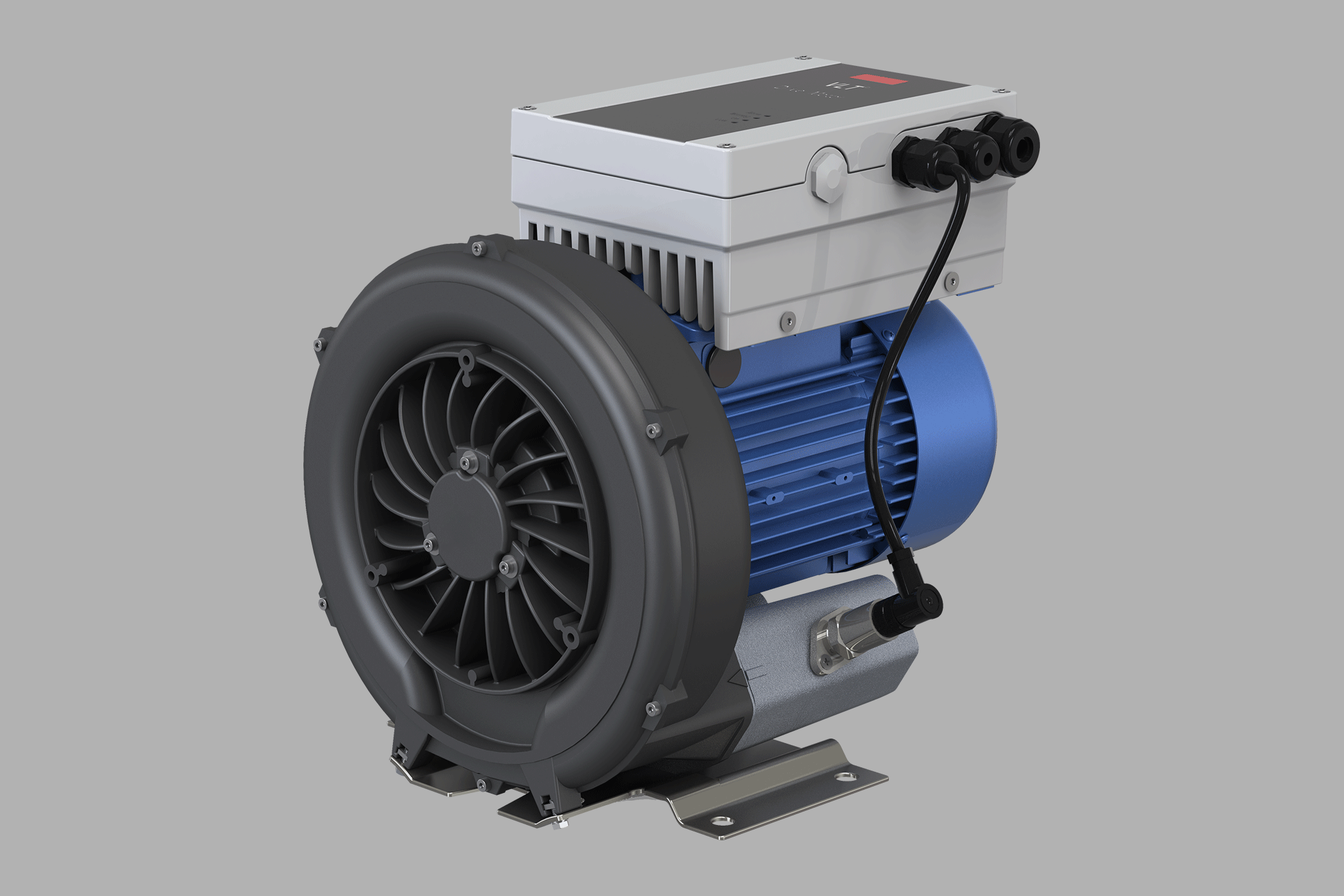

BluLine VB

Vacuum units for extraction of moist air

ISO

max. -260 mbar rel.

max. 500 m³/h output

US

max. -9 inch Hg g

max. 294 CFM output

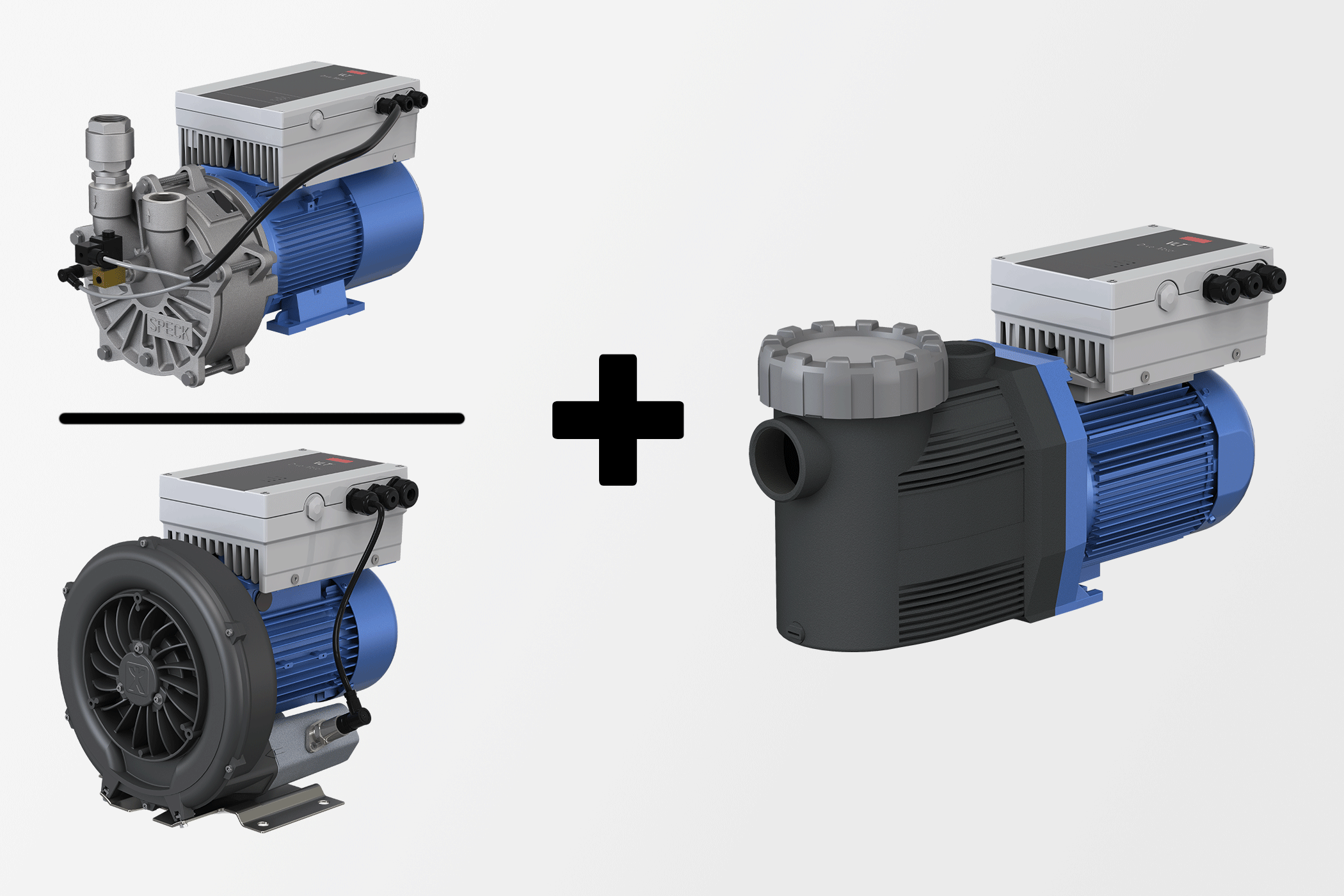

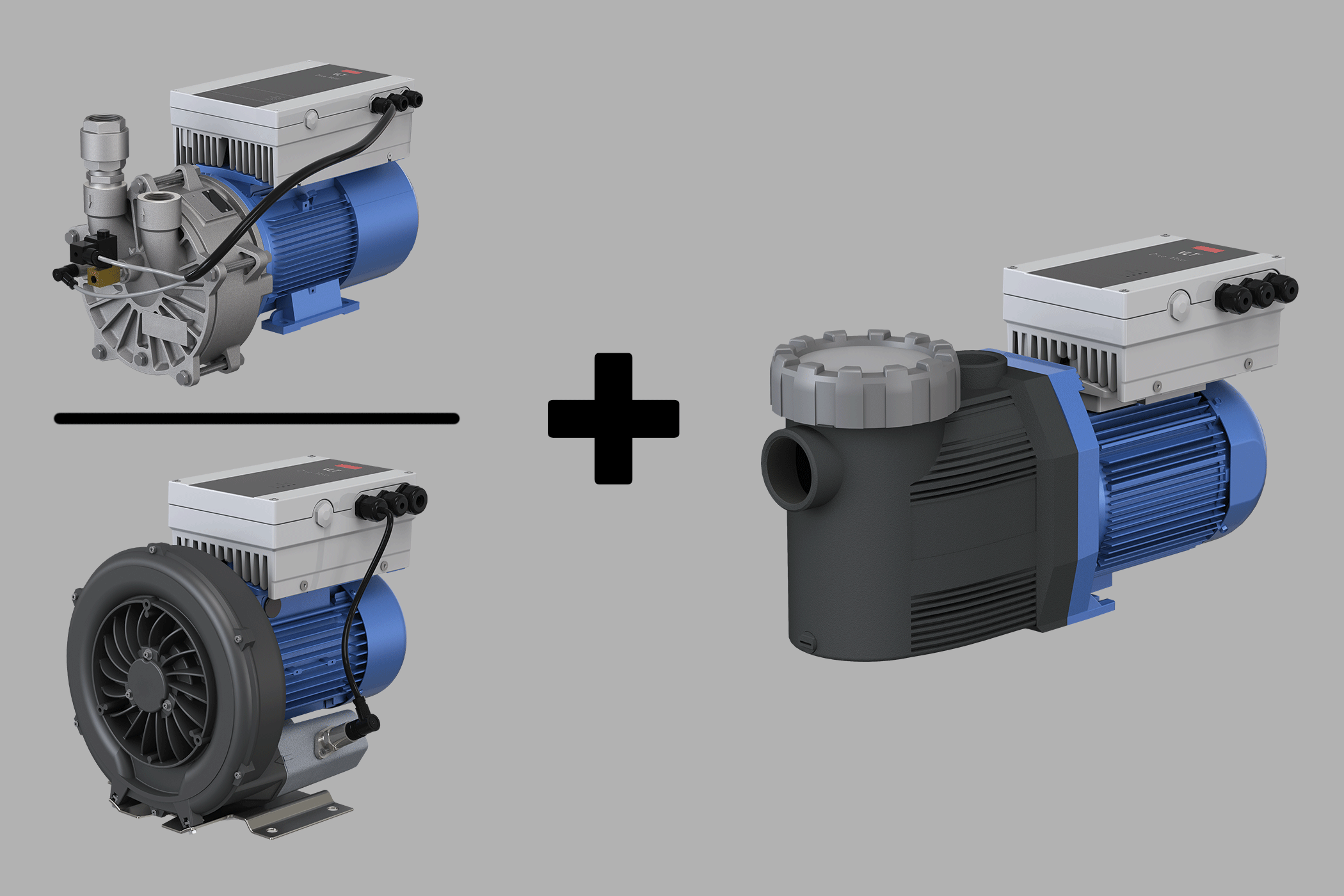

BluVacD

Decentralized vacuum units for parallel extraction of air and water from a plant-side separator in the calibration table

ISO

max. 30 m³/h water discharge

US

max. 18 CFM water discharge
