Close Coupled Pumps With Canned Motor

Description

Close-Coupled Pumps with Canned Motor Advantages

  • High-quality and reliable pumps
  • Extremely small dimensions
  • SiC sleeve bearings
  • Low-noise

Close-Coupled Pumps with Canned Motor Description

  • Force transmission by motor winding
  • Connection positions top/top, threaded

Y-2340-SR

Close-coupled pumps with canned motor (ec-motor, 230 V)

ISO

Water max. 95 °C

Oil max. 95 °C

1500 – 3800 1/min

max. 20 m / 9 l/min

US

Water max. 95 °C

Oil max. 95 °C

1500 – 3800 1/min

max. 66 ft / 2 GPM

AY-2251-PM-SR

lose-coupled, with controlled PM synchronous motor

ISO

Water max. 80 °C, 100 °C on request

Oil max. 80 °C, 100 °C on request

1000 – 4000 1/min

max. 88 m / 48 l/min

US

Water max. 80 °C, 100 °C on request

Oil max. 80 °C, 100 °C on request

1000 – 4000 1/min

max. 290 ft / 12,7 GPM

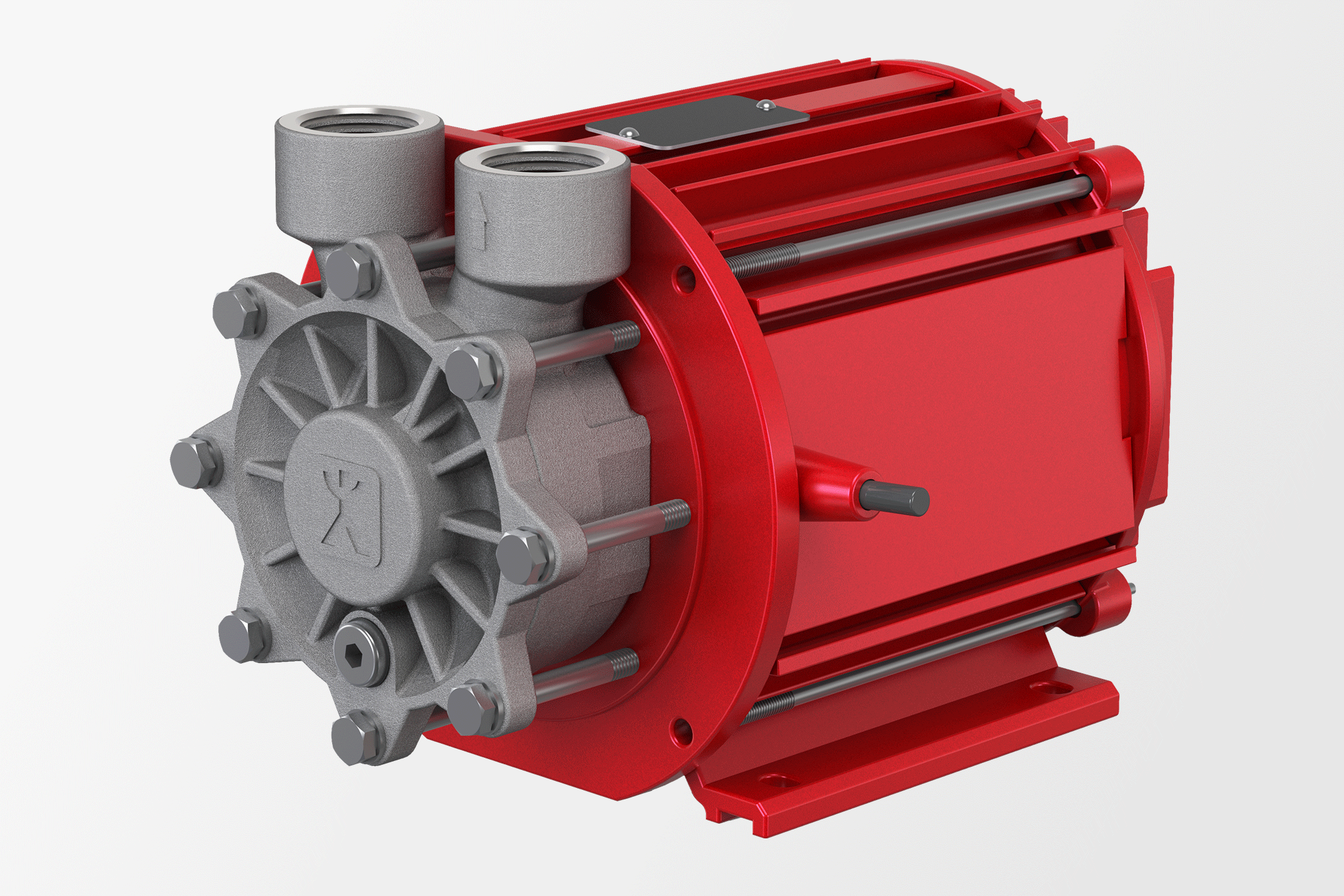

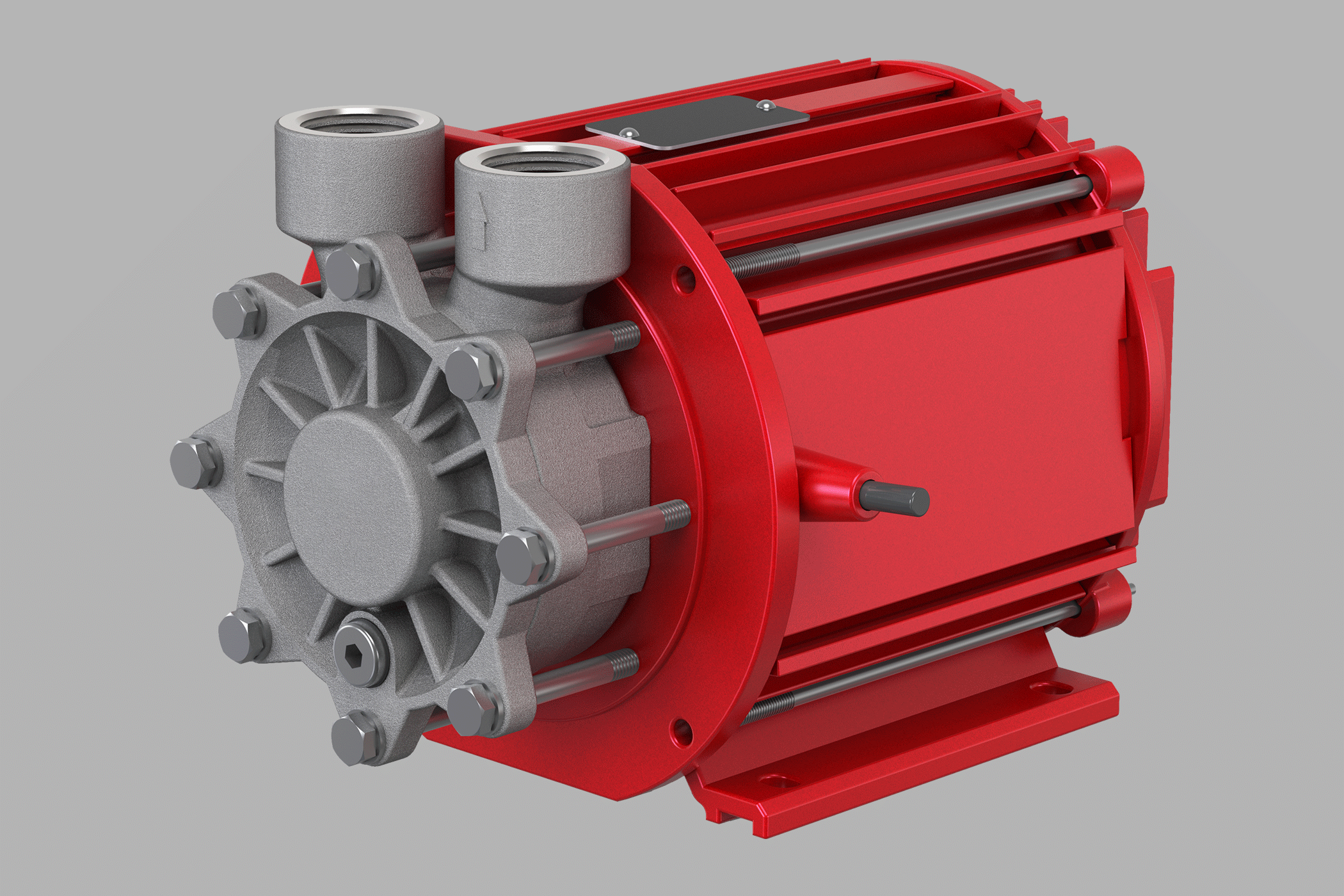

AY-4281-PM-SR

Close-coupled, with controlled PM synchronous motor

ISO

Water max. 80 °C, 100 °C on request

Oil max. 80 °C, 100 °C on request

1000 – 4000 1/min

max. 112 m / 75 l/min

US

Water max. 80 °C, 100 °C on request

Oil max. 80 °C, 100 °C on request

1000 – 4000 1/min

max. 370 ft / 19,8 GPM
