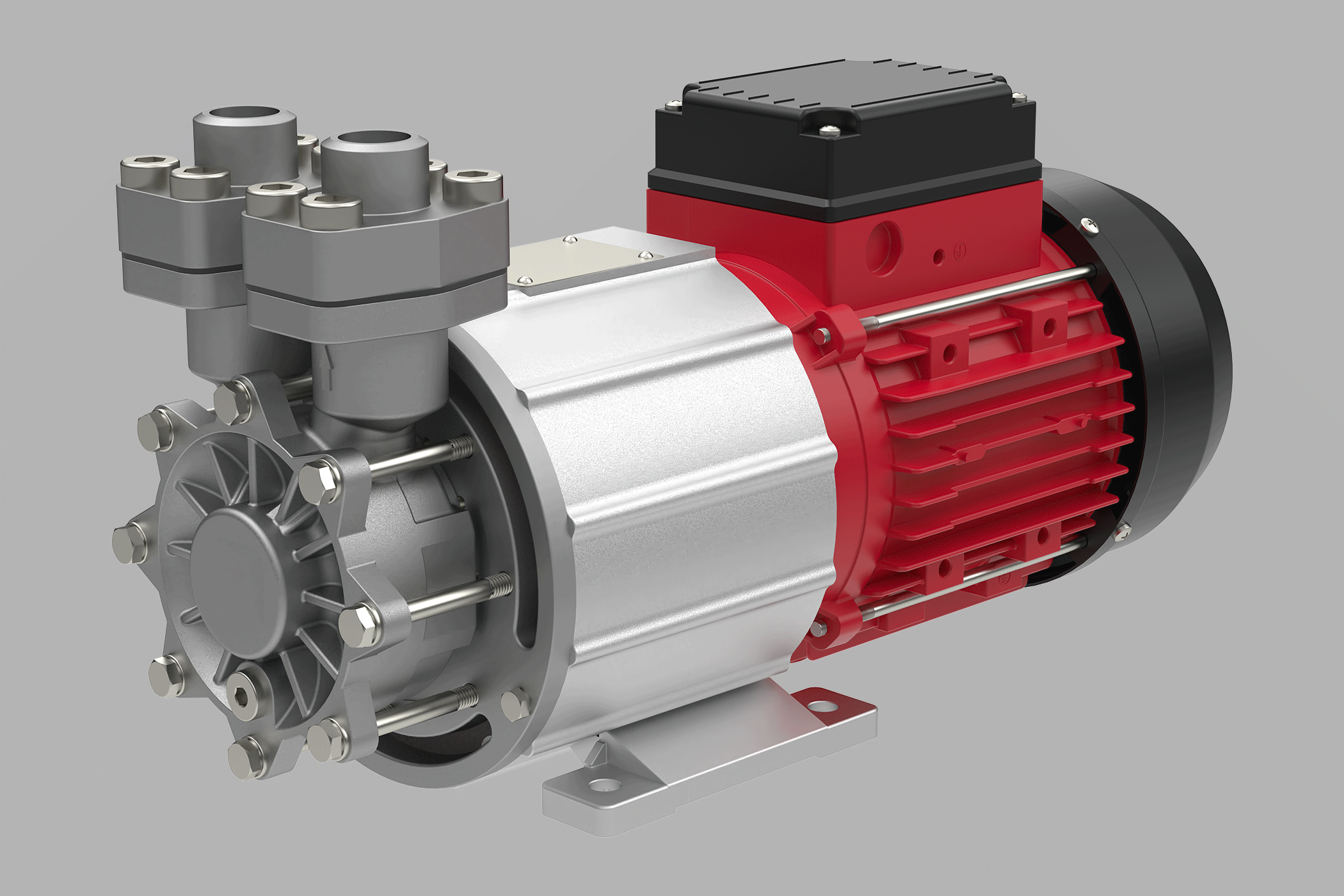

Close-coupled Pumps With Magnetic Coupling

Description

Close-coupled Pumps With Magnetic Coupling Advantages

  • High-quality, robust and reliable pumps for continuous operation
  • Leakage-free, low-maintenance and safe in operation

Close-coupled Pumps With Magnetic Coupling Description

  • Pump shaft made from ceramic, sleeve bearings made from SiC
  • Connection position top/top, threaded and SAE flanges
  • Normal-priming
  • High-quality magnetic couplings
  • Designs in stainless steel, spheroidal graphite cast iron, copper alloy and high-quality plastic
  • Tmax
    Water up to 180 °C
    Oil up to 200 °C
    Further media upon request
  • ATEX II 2GD IIC cb TX (except for EY-MK)

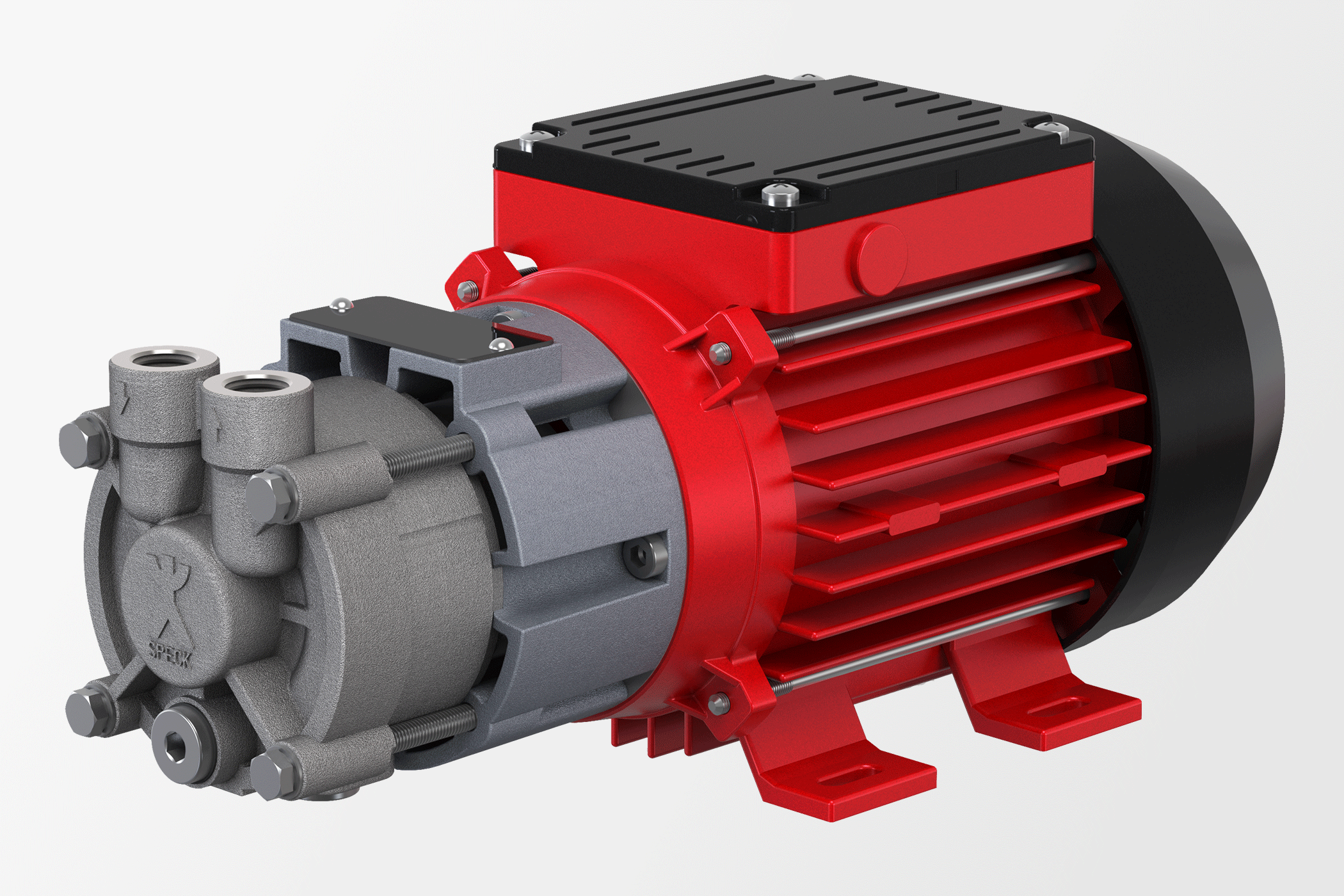

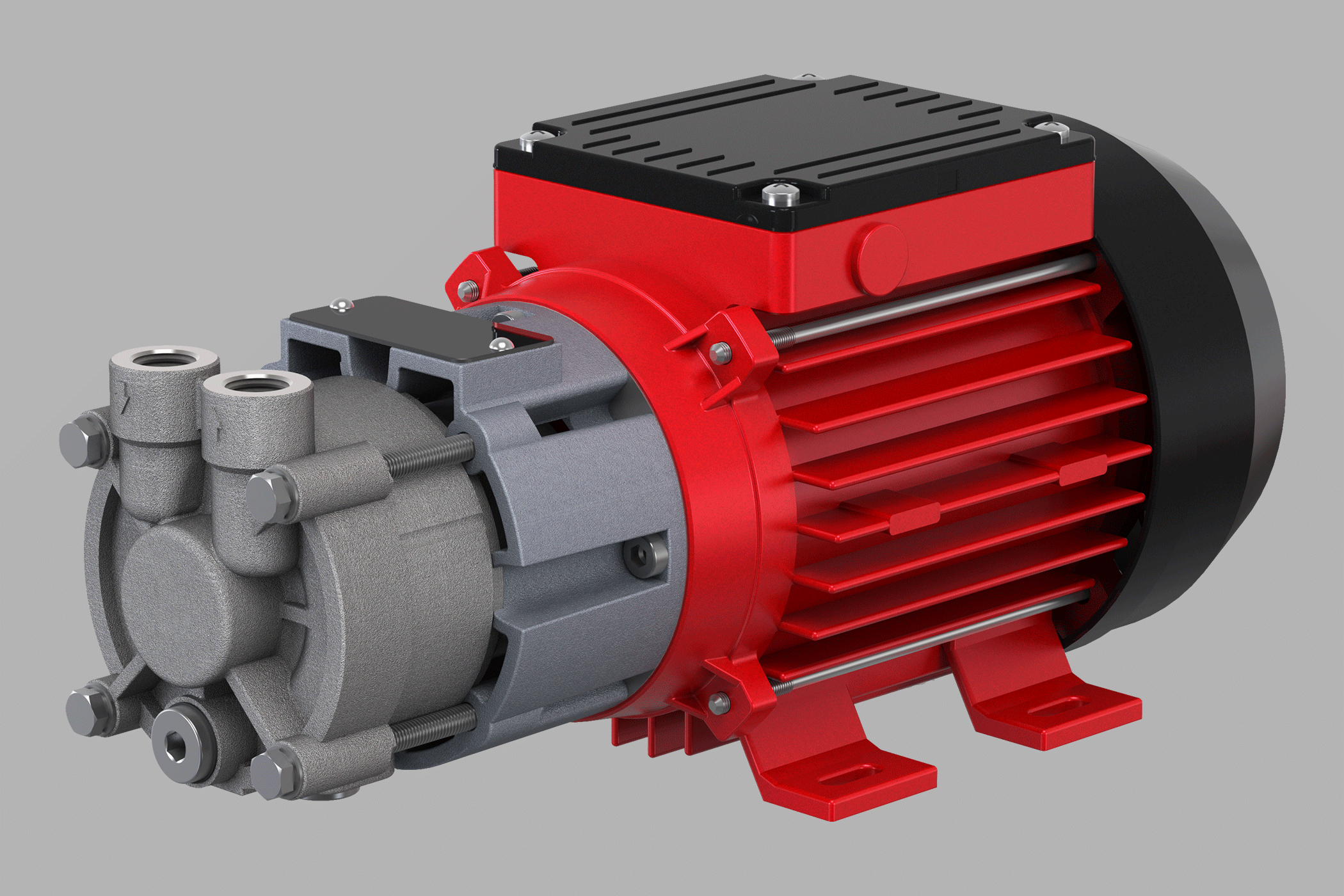

Y/YS-2951-W-MK

Close-coupled,YS self-priming

ISO

Water max. 140 °C

Oil max. 160 °C

50 Hz: max. 28 m / 11 l/min

60 Hz: max. 38 m / 16 l/min

US

Water max. 140 °C

Oil max. 160 °C

50 Hz: max. 92 ft / 3 GPM

60 Hz: max. 125 ft / 4 GPM

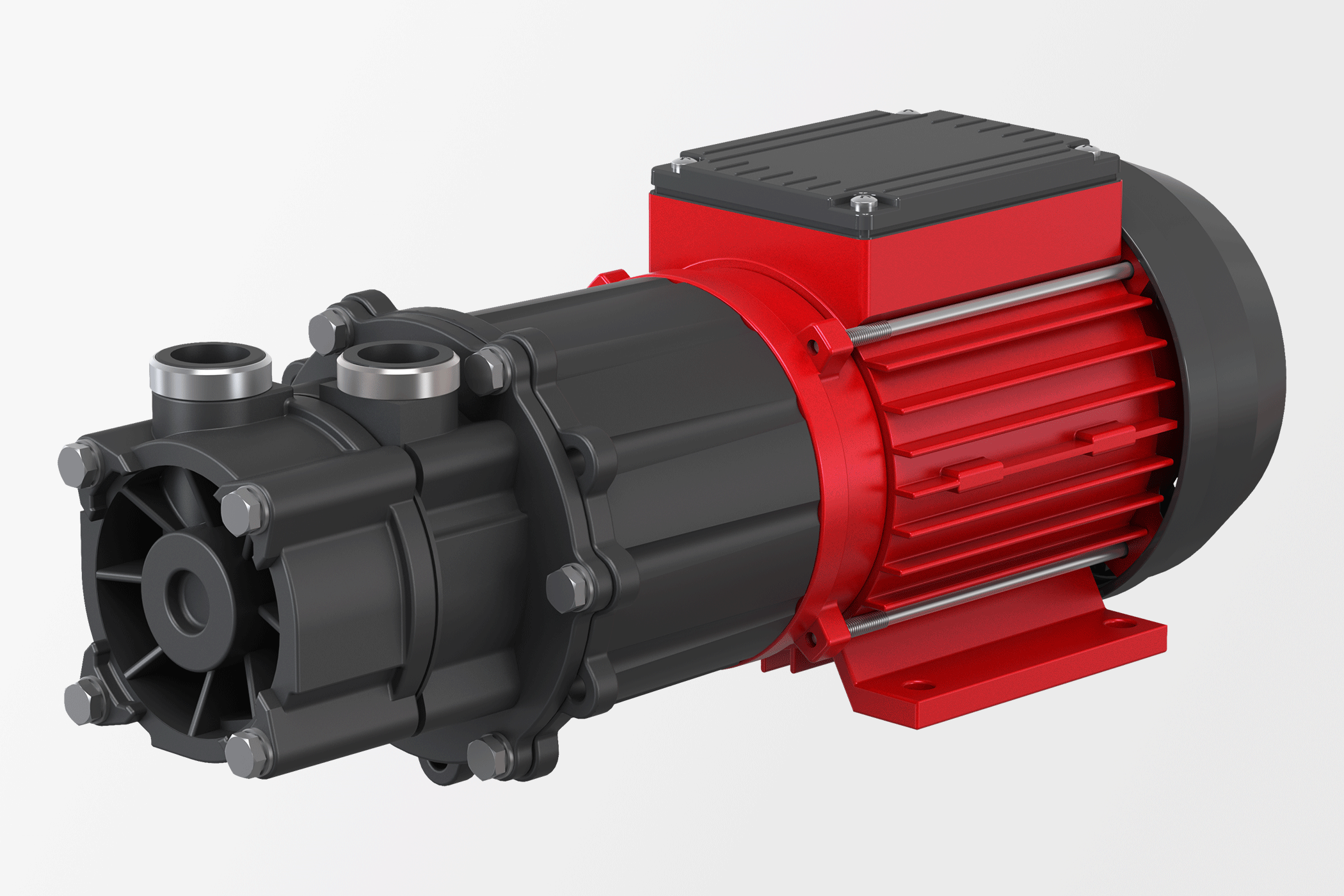

PY-2071-MK

Close-coupled, self-priming, in plastic design

ISO

Water max. 90 °C

50 Hz / 60 Hz:

max. 35 m / 17 l/min

US

Water max. 90 °C

50 Hz / 60 Hz:

max. 115 ft / 4 GPM

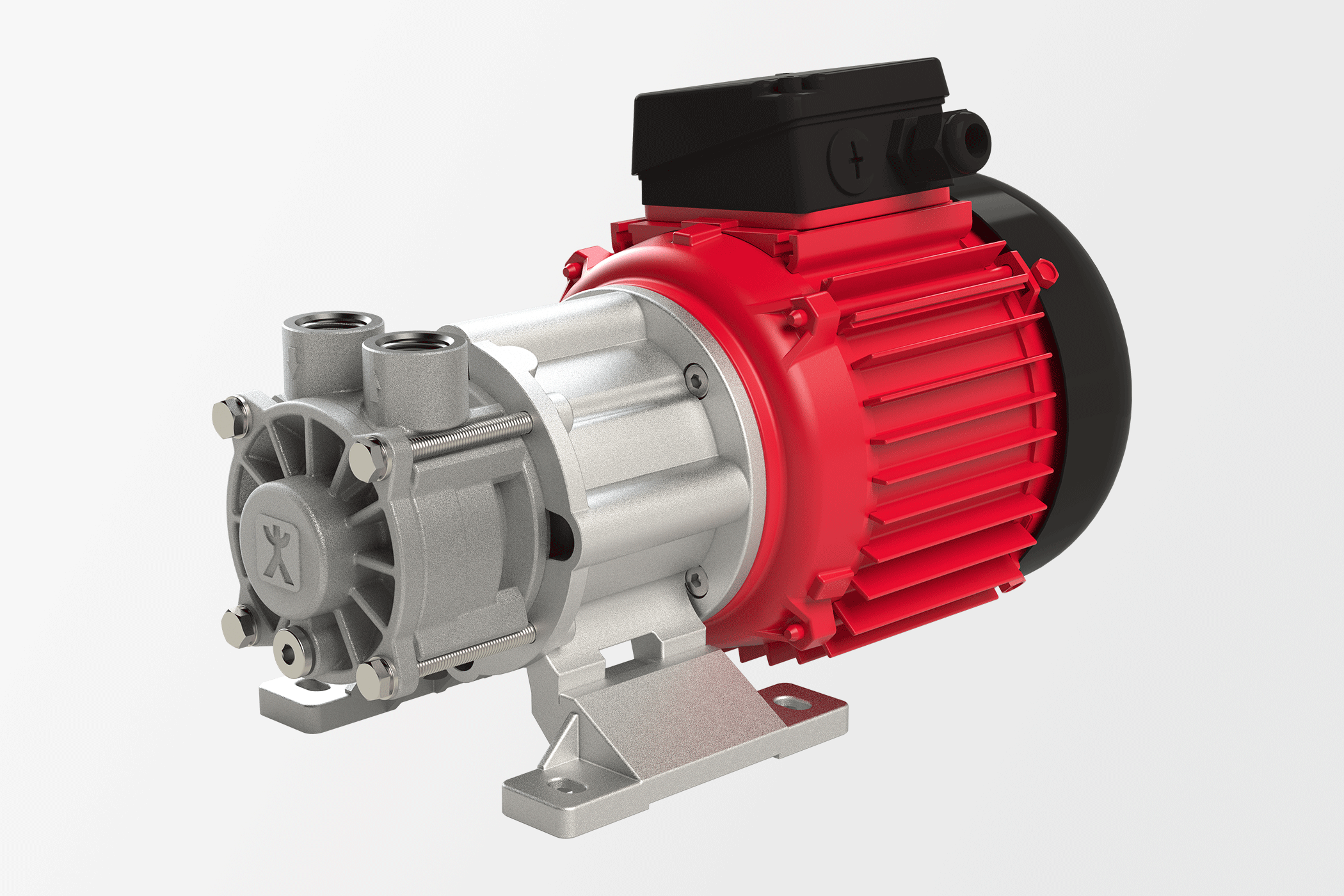

AY-2251-PM

Close-coupled, with controlled PM synchronous motor

ISO

Water max. 160 °C

Oil max. 180 °C

1000 – 4000 1/min

max. 88 m / 48 l/min

US

Water max. 160 °C

Oil max. 180 °C

1000 – 4000 1/min

max. 290 ft / 12,7 GPM

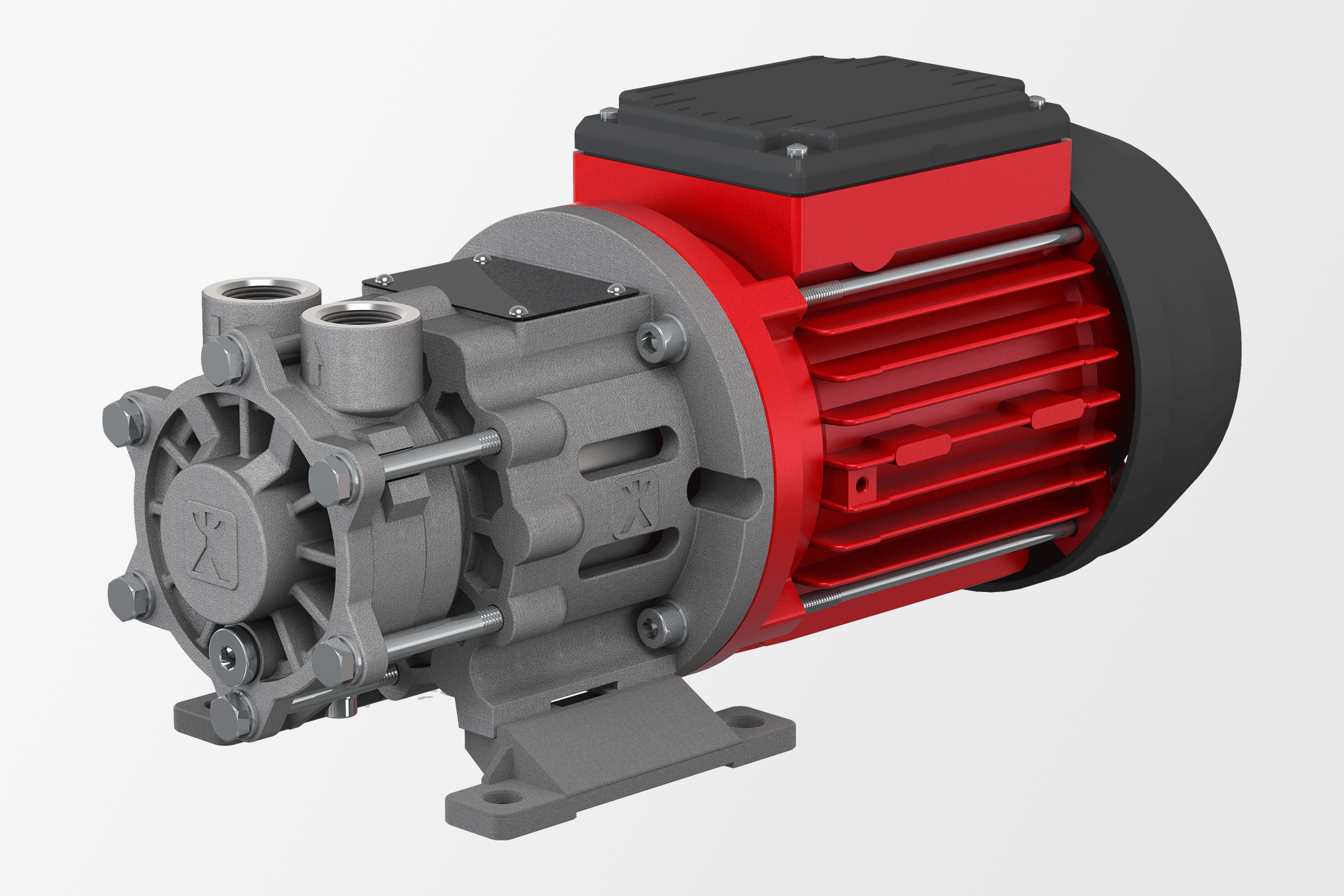

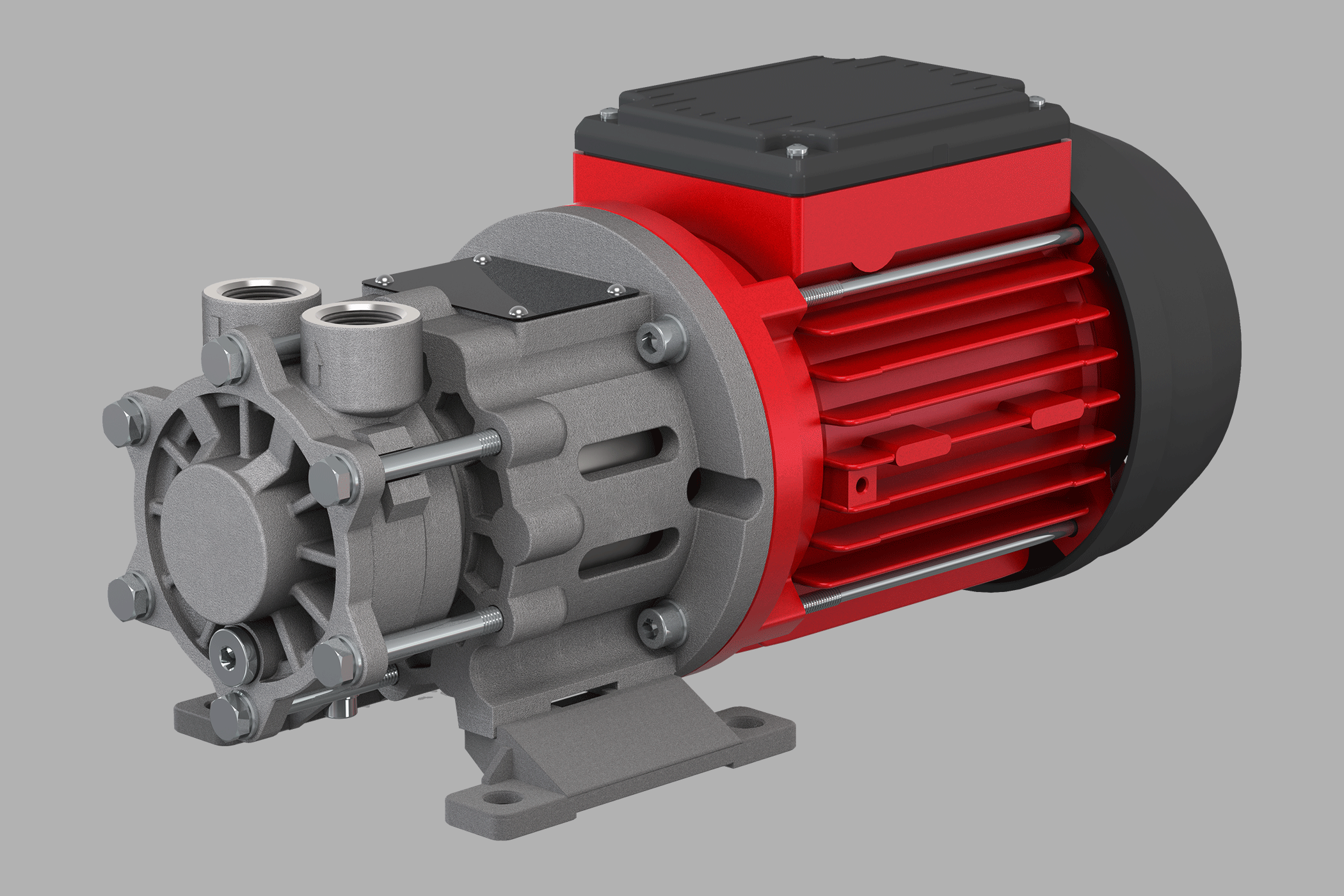

EY-2251-MK

Close-coupled

ISO

Water max. 140 °C

Oil max. 140 °C

50 Hz / 60 Hz:

max. 40 m / 37 l/min

US

Water max. 140 °C

Oil max. 140 °C

50 Hz / 60 Hz:

max. 131 ft / 10 GPM

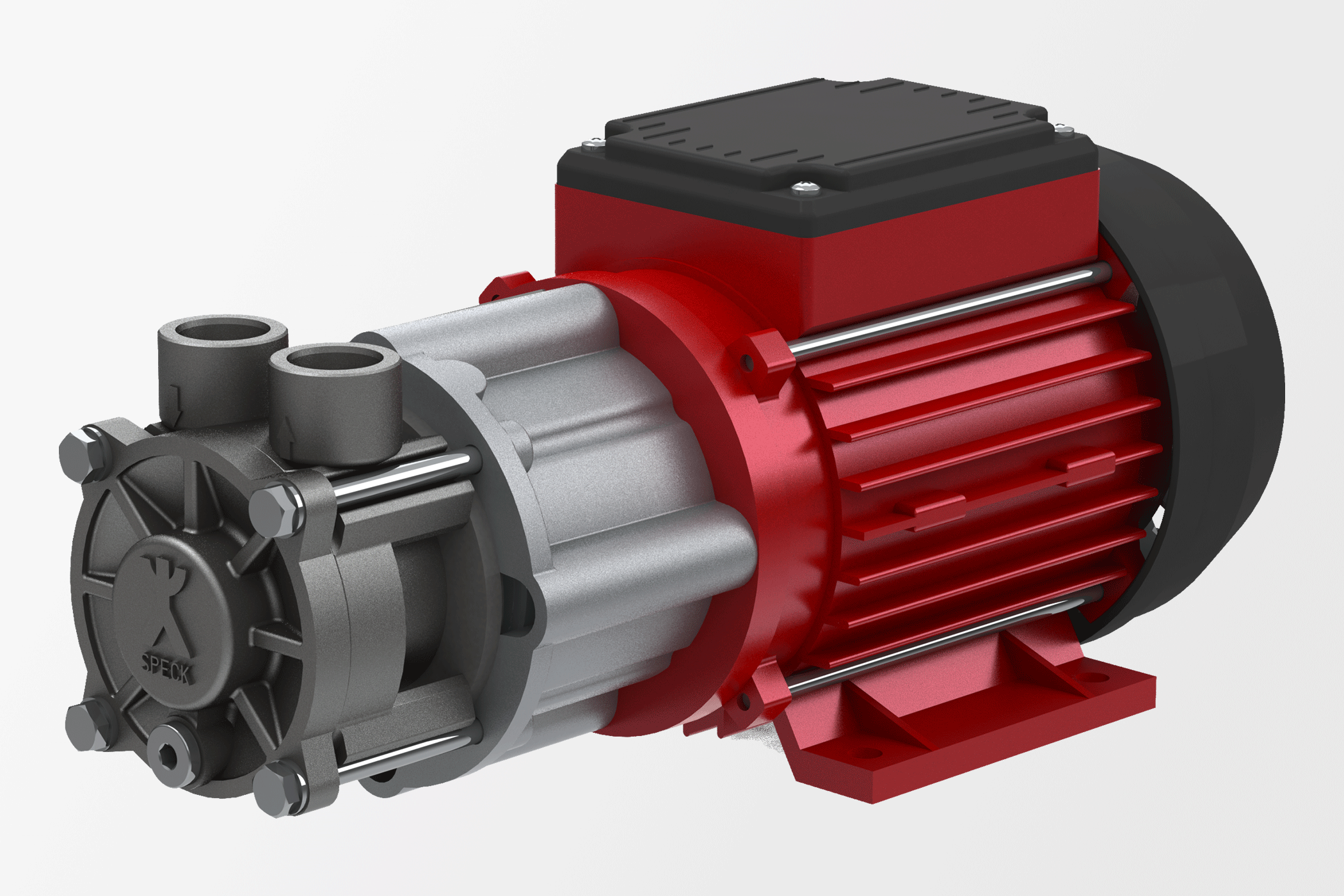

NPY-2251-MK

Close-coupled

ISO

Water max. 160 °C

Oil max. 180 °C

50 Hz / 60 Hz:

max. 49 m / 28 l/min

US

Water max. 160 °C

Oil max. 180 °C

50 Hz / 60 Hz:

max. 161 ft / 7 GPM

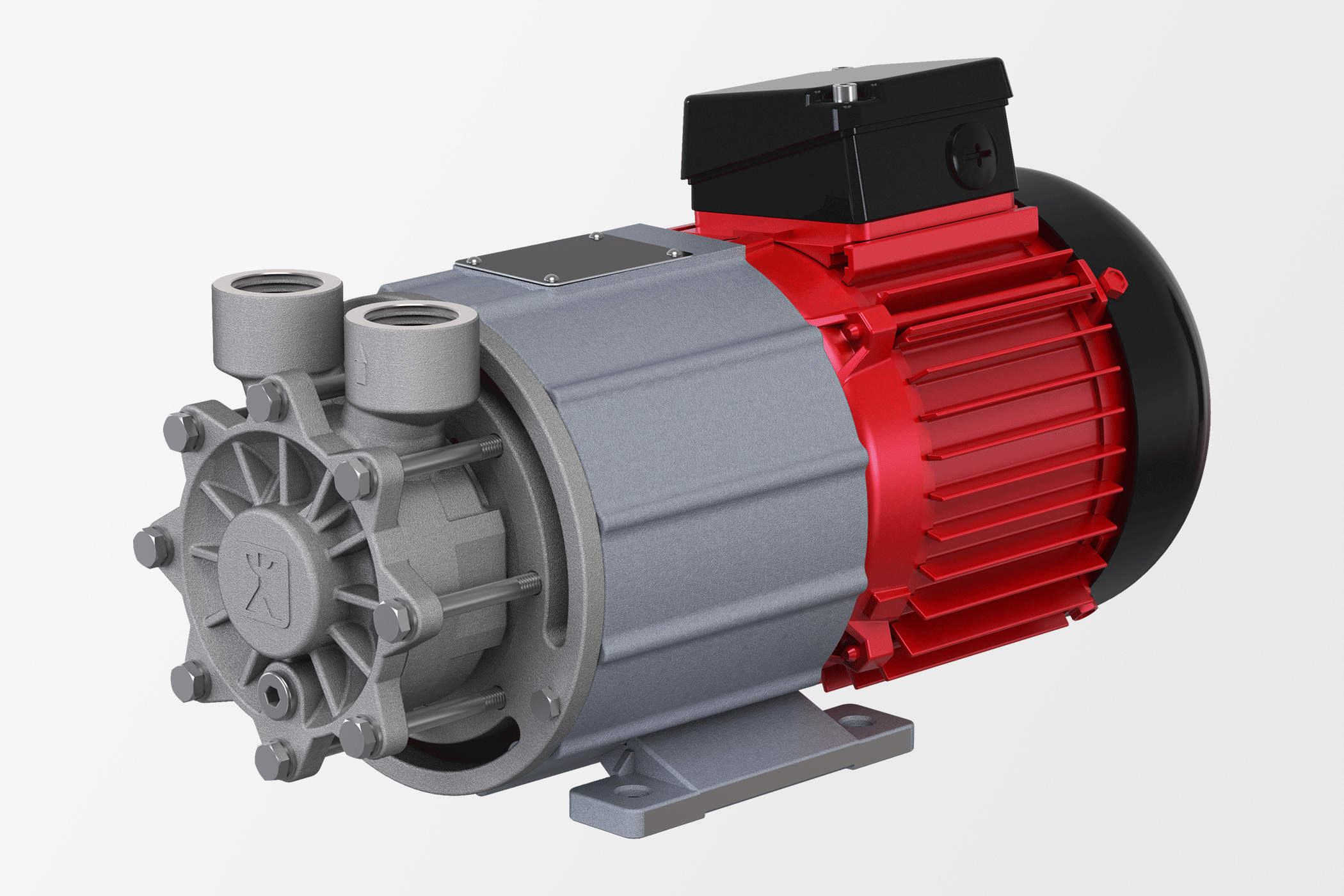

AY-4281-PM

Close-coupled, with controlled PM synchronous motor

ISO

Water max. 160 °C

Oil max. 180 °C

1000 – 4000 1/min

max. 112 m / 75 l/min

US

Water max. 160 °C

Oil max. 180 °C

1000 – 4000 1/min

max. 370 ft / 19,8 GPM

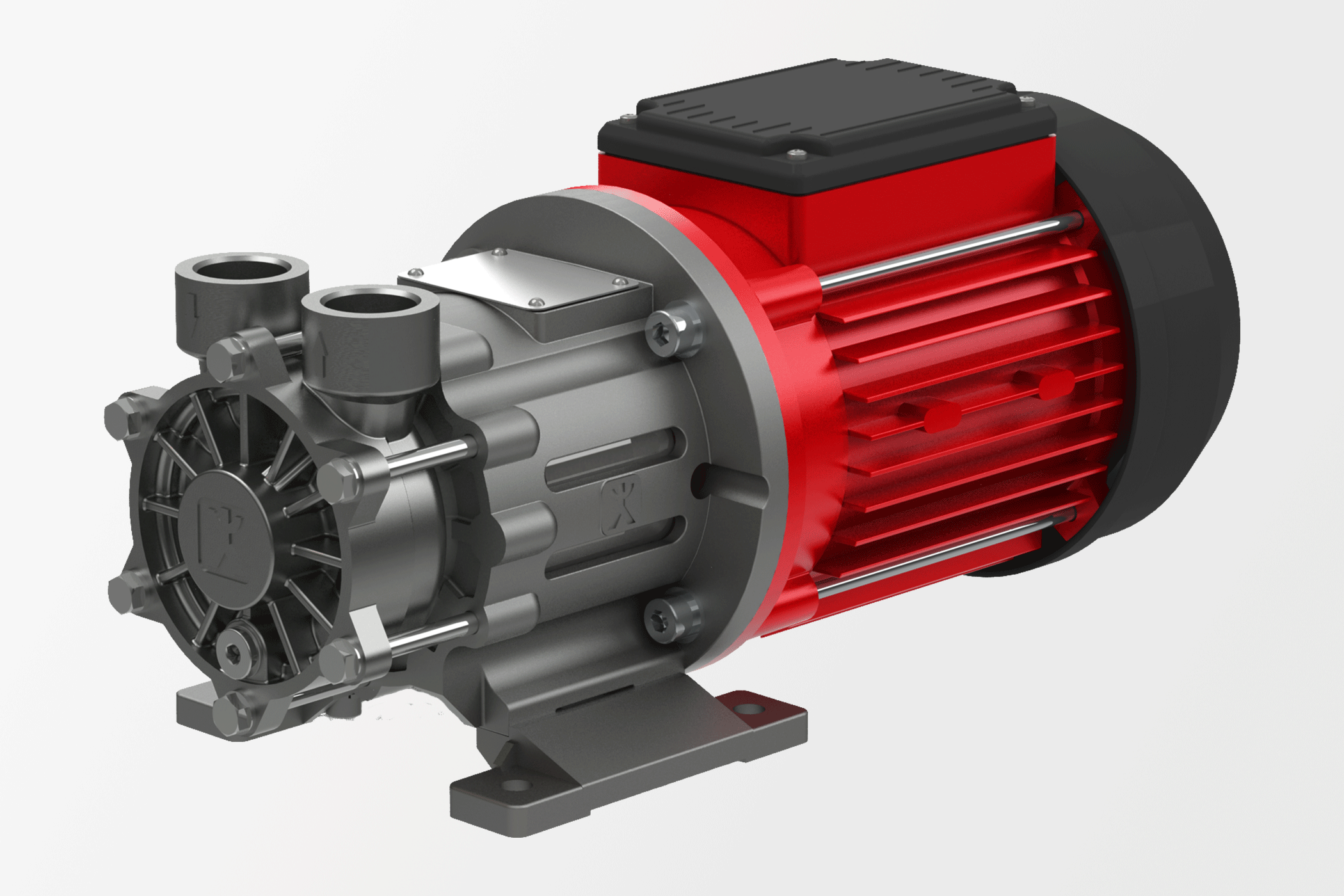

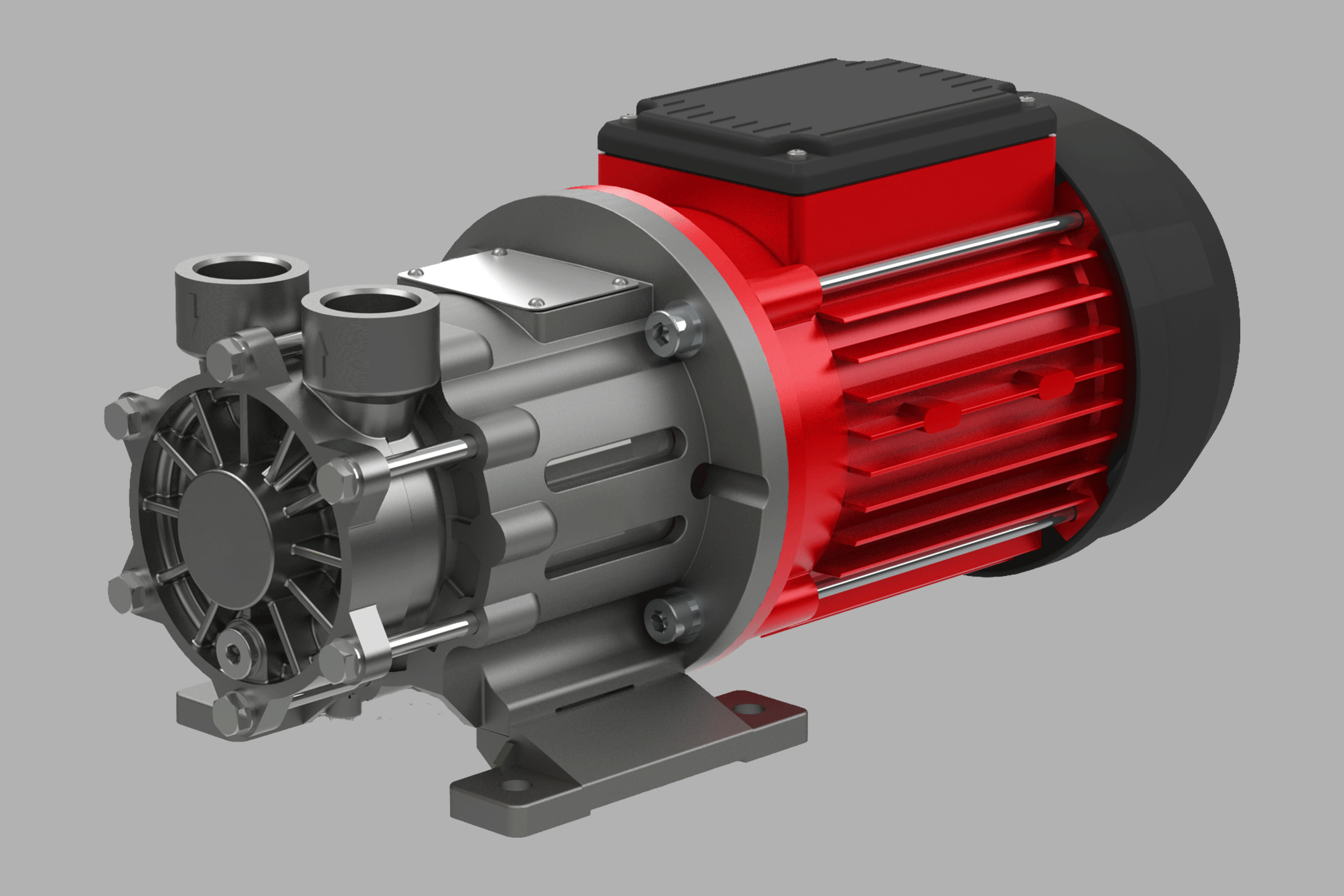

EY-4281-MK

Close-coupled

ISO

Water max. 140 °C

Oil max. 140 °C

50 Hz: max. 55 m / 55 l/min

60 Hz: max. 40 m / 55 l/min

US

Water max. 140 °C

Oil max. 140 °C

60 Hz: max. 180 ft / 15 GPM

60 Hz: max. 131 ft / 15 GPM

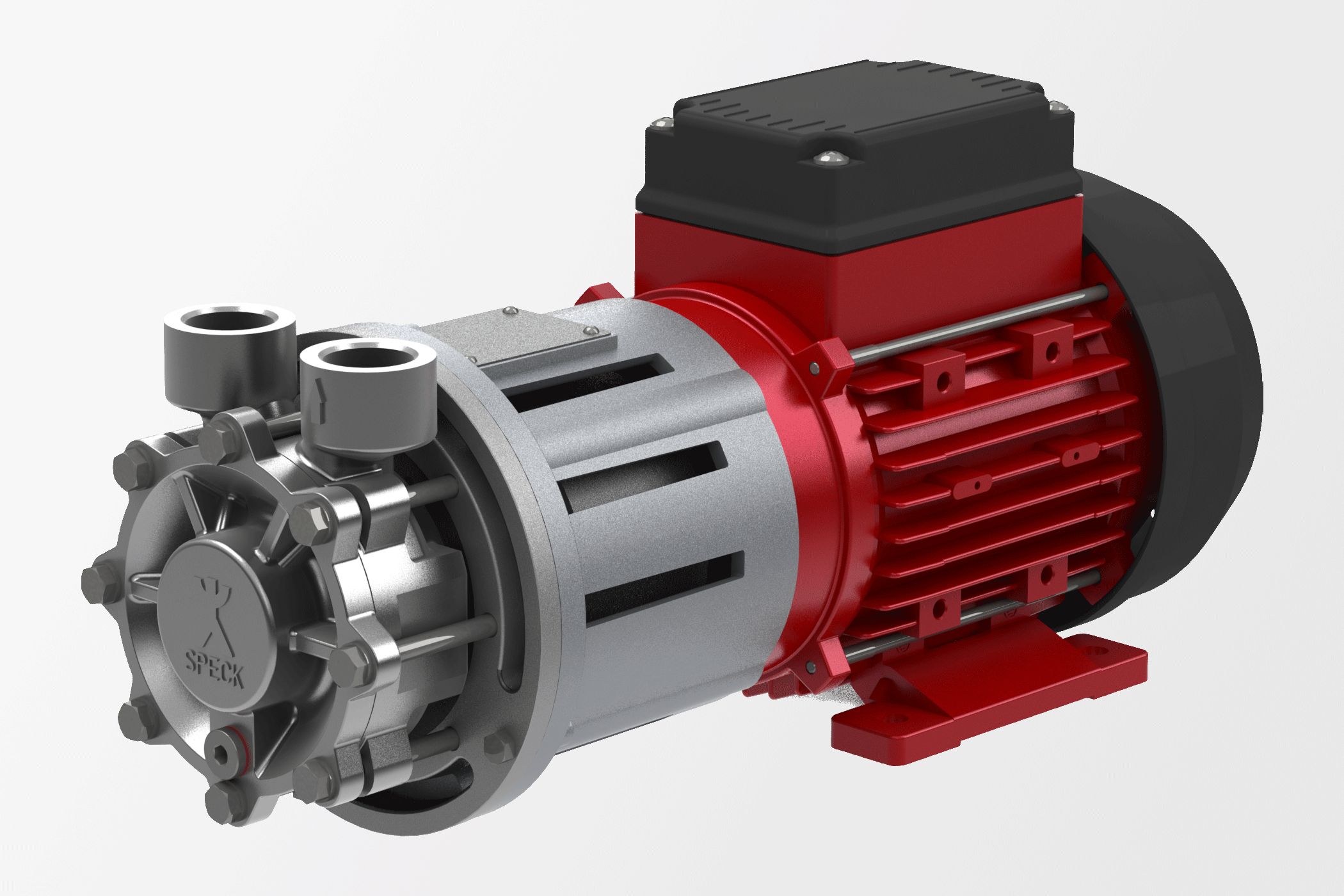

CY-4281-MK

Close-coupled

ISO

Water max. 160 °C

Oil max. 180 °C

50 Hz / 60 Hz:

max. 78 m / 90 l/min

US

Water max. 160 °C

Oil max. 180 °C

50 Hz / 60 Hz:

max. 256 ft / 24 GPM

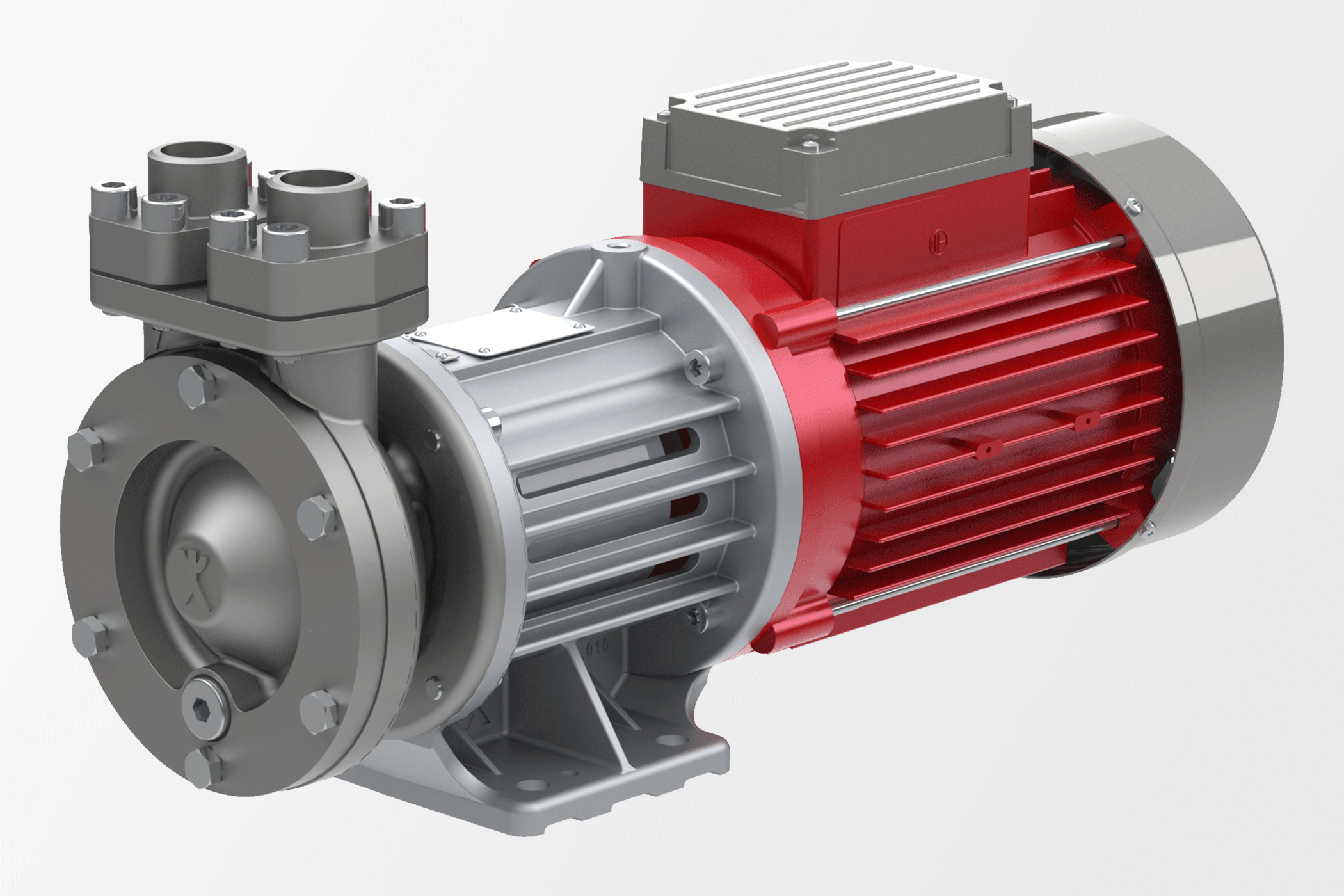

CY-6091-MK

Close-coupled

ISO

Water max. 160 °C

Oil max. 180 °C

50 Hz / 60 Hz:

max. 93 m / 200 l/min

US

Water max. 160 °C

Oil max. 180 °C

50 Hz / 60 Hz:

max. 305 ft / 53 GPM
