TOEGN100200 – Centrifugal pump with mechanical seal, bearing support version, thermal oil version

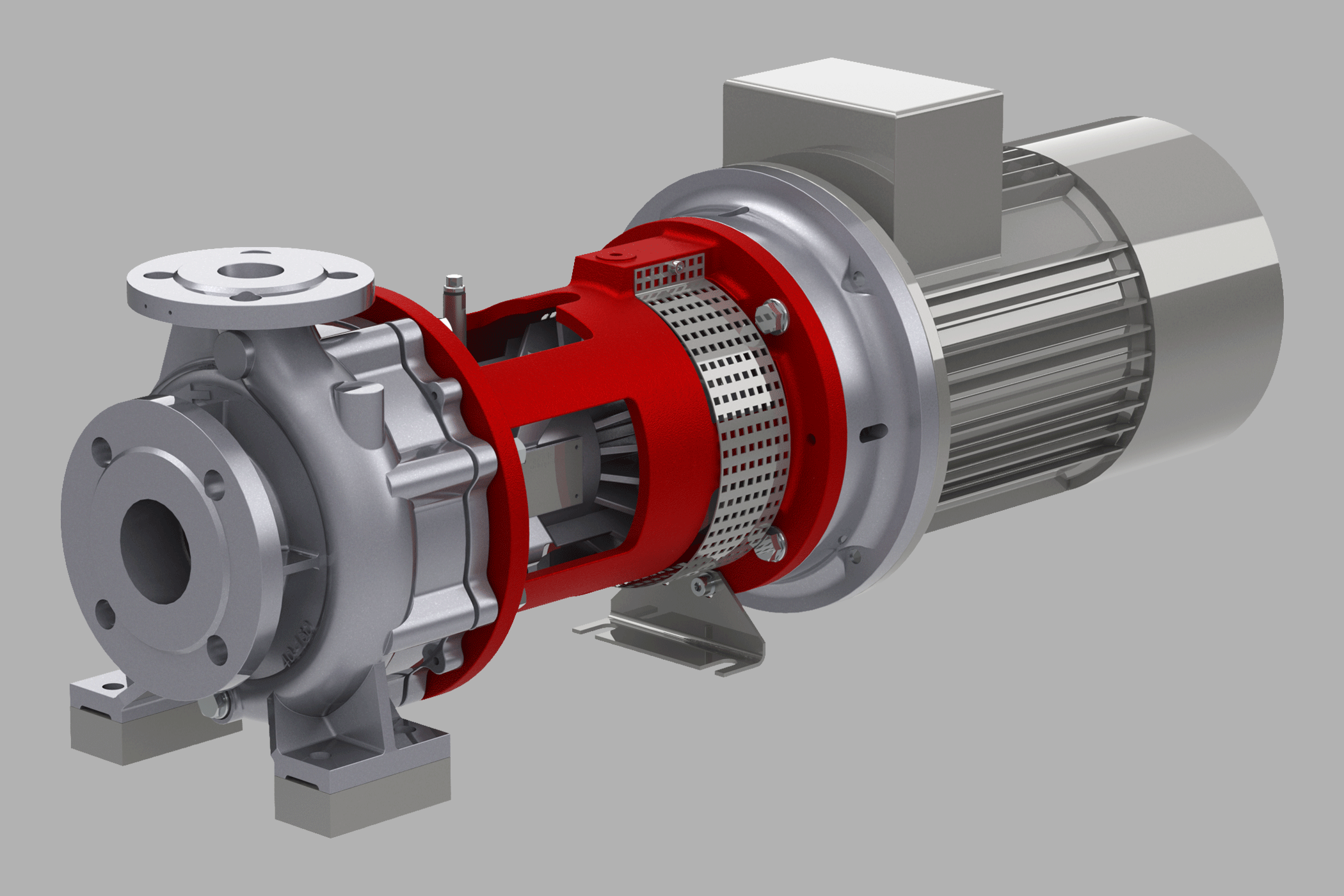

TOEGA040160 – Centrifugal pump with mechanical seal, bracket version, thermal oil version
TOEGA100160 – Centrifugal pump with mechanical seal, bracket version, hot water version

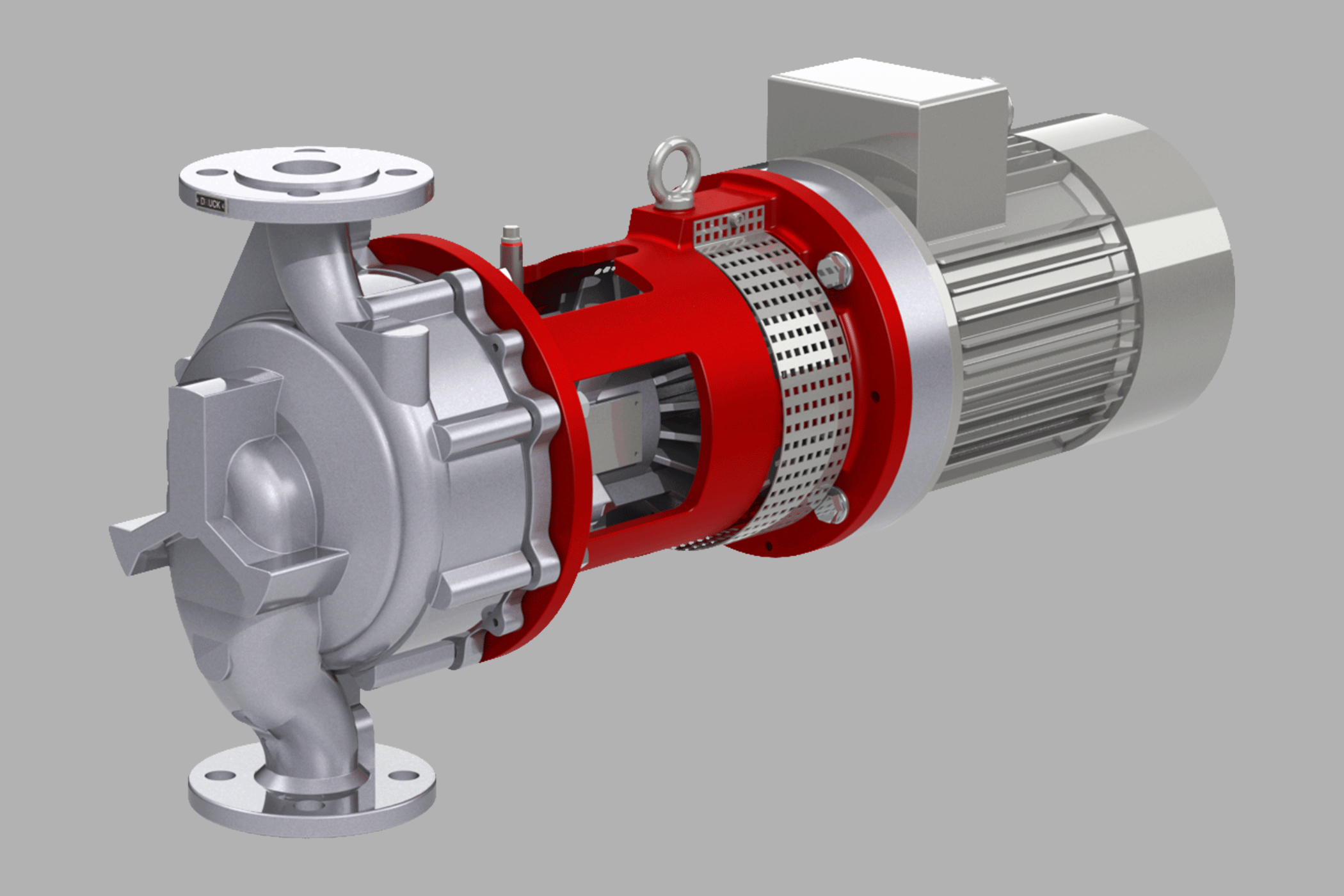

TOEGI040160 – Centrifugal pump with mechanical seal, thermal oil version

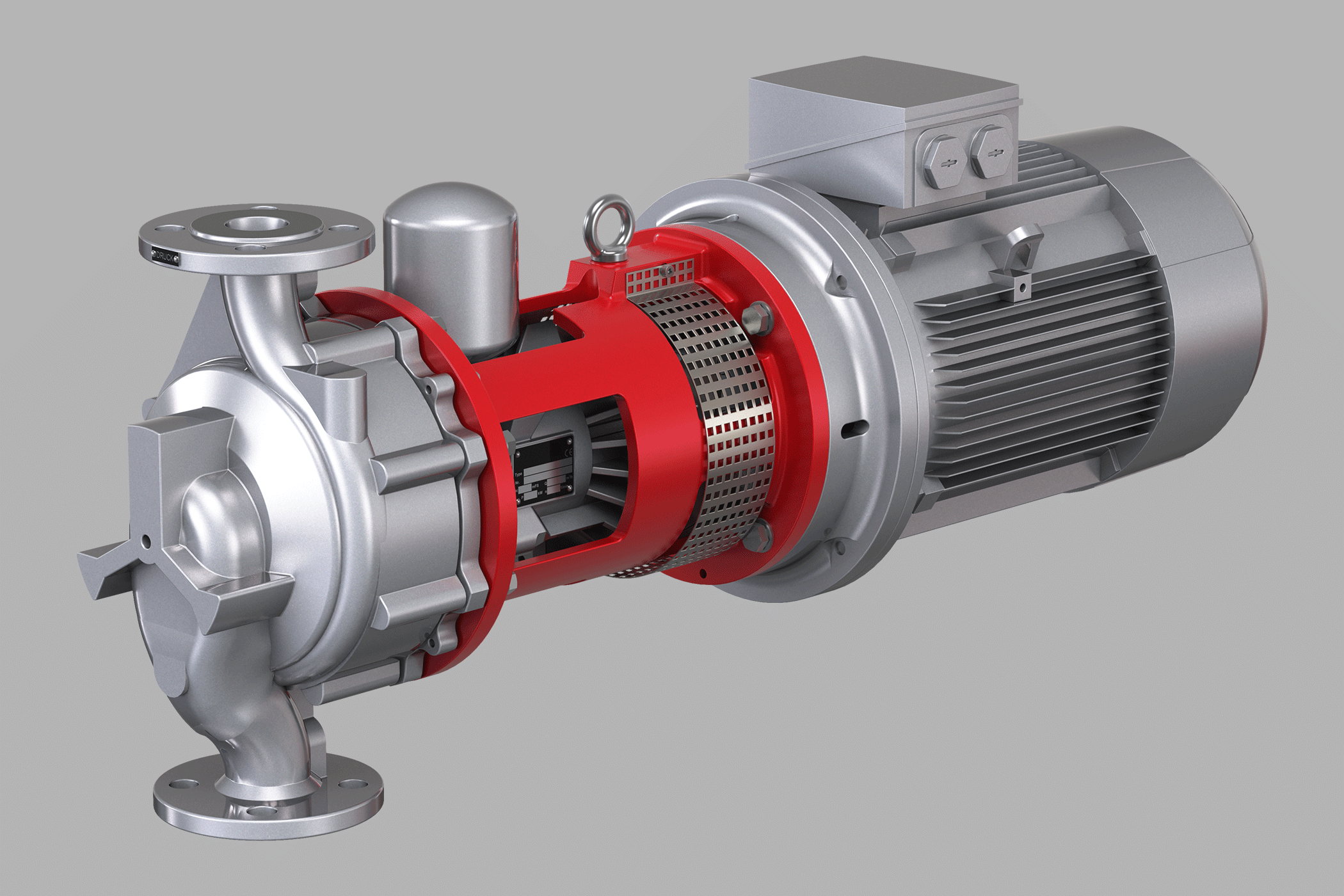

TOEGI040160 – Centrifugal pump with mechanical seal, hot water version
TOEG
Heat transfer pump with magnetic coupling or mechanical seal for hot water or mineral and synthetic thermal oil
Available with volute casing or inline casing
Phone 1300 207 380
Circutec Australia
Unit 2, 6 Glory Road
Gnangara WA 6077 Australia
Phone NZ: +61 8 6201 1286
- Description
- Markets and applications (examples)
- Technical data
- Dimensions
- Performance diagram
- Related links
- Videos
Description
- Centrifugal/heat transfer pump
- Suitable for mineral and synthetic thermal oils: min. – 10 °C, max. +350 °C
- Suitable for hotwater: max. +160 °C, on request max. +180 °C
- Mechanical seal
- Free-flying shaft or bracket pump
- Volute casing and inline casing (not all sizes)
- Spheroidal graphite iron version: min -40°C, max. +350°C
- TOE modular system
Markets and applications (examples)
- Industrial cooling
- Chillers/cooling machines
- Heating and cooling technology
- Thermal oil ovens
- Thermal oil systems
- Calenders
- Industrial deep-fat fryers
- Transportation of cooling brine
- Renewable energies
- Thermal oil or cooling brine in solar parks
Technical data
| Product type | Centrifugal pump |
| Shaft sealing | Mechanical seal |
| Pump design | Free-flying shaft or bracket version |
| Typical media | Water max. +160 °C, on request max. +180 °C Mineral or synthetic thermal oil min. -10 °C, max. +350 °C |
| Self-priming | No |
| Variable speed | Frequency-converter-compatible motor on request |
| Total head | 5–103 m |
| Flow rate | 5.0–545.0 m3/h |
| Nominal pressure | PN 16 |
| Nominal motor speed | 2900 rpm |
| Suction-side connection design | Flange in acc. with DIN EN 1092 Flange in acc. with DIN EN 1092, drilled in acc. with ANSI 150 lbs |
| Suction-side connection size | DN 50 – DN 150 |
| Pressure-side connection design | Flange in acc. with DIN EN 1092 Flange in acc. with DIN EN 1092, drilled in acc. with ANSI 150 lbs |
| Pressure-side connection size | DN 32 – DN 125 |
| Material designs | Spheroidal graphite cast iron |
| Explosion protection | None II 3G, II 3D II 2G, II 2D |
Dimensions
Dimensions may vary depending on motor design.
| L | 360–470 mm |
| W | 237–524 mm |
| H | 192–565 mm |
Performance diagram
Specifications apply for water at 20°C and nominal speed.
Technical data
| Product type | Centrifugal pump |
| Shaft sealing | Mechanical seal |
| Pump design | Free-flying shaft or bracket version |
| Typical media | Water max. +160 °C, on request max. +180 °C Mineral or synthetic thermal oil min. -10 °C, max. +350 °C |
| Self-priming | No |
| Variable speed | Frequency-converter-compatible motor on request |
| Total head | 10–103 m |
| Flow rate | 6.0–460.0 m 3/h |
| Nominal pressure | PN 16 |
| Nominal motor speed | 3500 rpm |
| Suction-side connection design | Flange in acc. with DIN EN 1092 Flange in acc. with DIN EN 1092, drilled in acc. with ANSI 150 lbs |
| Suction-side connection size | DN 50 – DN 150 |
| Pressure-side connection design | Flange in acc. with DIN EN 1092 Flange in acc. with DIN EN 1092, drilled in acc. with ANSI 150 lbs |
| Pressure-side connection size | DN 32 – DN 125 |
| Material designs | Spheroidal graphite cast iron |
| Explosion protection | None II 3G, II 3D II 2G, II 2D |
Dimensions
Dimensions may vary depending on motor design.
| L | 360–470 mm |
| W | 237–524 mm |
| H | 192–565 mm |
Performance diagram
Specifications apply for water at 20°C and nominal speed.
Technical data
| Product type | Centrifugal pump |
| Shaft sealing | Mechanical seal |
| Pump design | Free-flying shaft or bracket version |
| Typical media | Water max. +320 °F, on request max. +356 °F Mineral or synthetic thermal oil min. -14 °F, max. +662 °F |
| Self-priming | No |
| Variable speed | Frequency-converter-compatible motor on request |
| Total head | 33–338 ft |
| Flow rate | 26.4–2025.3 USGPM |
| Nominal pressure | PN 16 |
| Nominal motor speed | 3500 rpm |
| Suction-side connection design | Flange in acc. with DIN EN 1092 Flange in acc. with DIN EN 1092, drilled in acc. with ANSI 150 lbs |
| Suction-side connection size | DN 50 – DN 150 |
| Pressure-side connection design | Flange in acc. with DIN EN 1092 Flange in acc. with DIN EN 1092, drilled in acc. with ANSI 150 lbs |
| Pressure-side connection size | DN 32 – DN 125 |
| Material designs | Spheroidal graphite cast iron |
| Explosion protection | None II 3G, II 3D II 2G, II 2D |
Dimensions
Dimensions may vary depending on motor design.
| L | 14,17–18,50 inch |
| W | 9,33–20,63 inch |
| H | 7,56–22,24 inch |
Performance diagram
Specifications apply for water at 68°F and nominal speed.
Specifications apply for water at 68°F and nominal speed.
